User Manual SIPLACE 80S-20/F4 8 Error information and diagnostics
Software Version SR.406.xx 02/2000 Issue US 8.2 Calling error information
389
8.2.2.1 Meaning of the colors in the error information display
– Red text Error number and error message
– Black text Possible cause(s) of the error
– Blue text Instructions on how to eliminate the error
– Green, underlined text Click to call up additional information on the cause of the error
and further instructions on how to handle the error
NOTE
In addition, the icon for the current error type is displayed to the right of the error message
(red text) (see Chapter 4, Section 4.2). 8
Å If necessary, click on a green, underlined text in order to call up special supplementary infor-
mation on the current error.
The display area switches to the information corresponding to the selected entry.
8

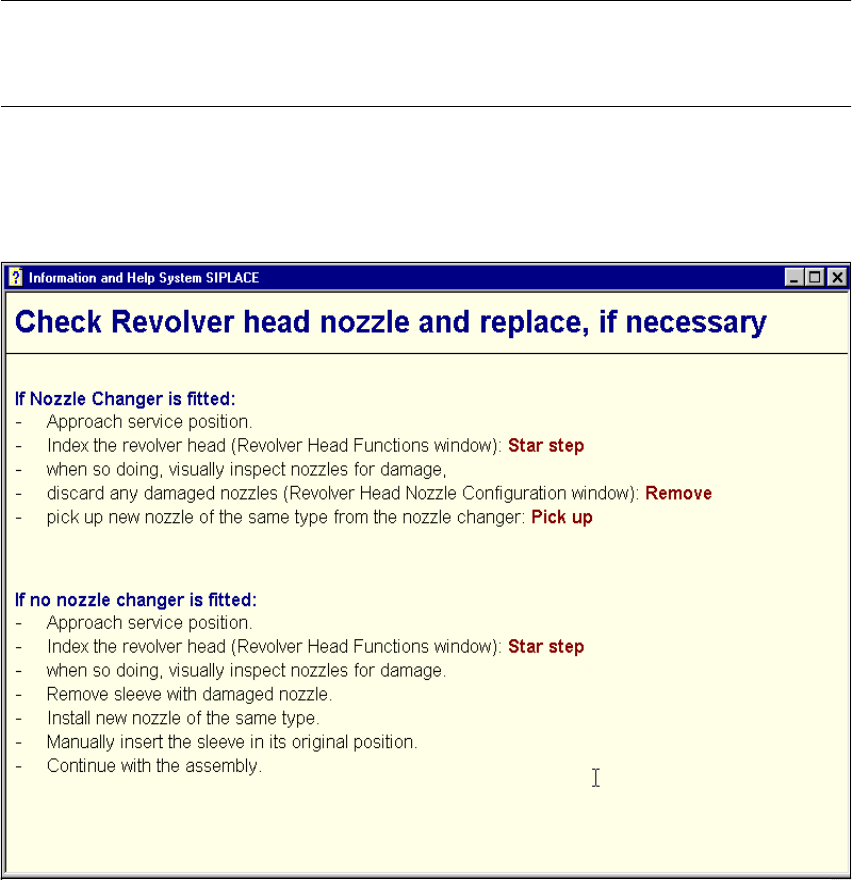

Fig. 8.2 - 4 Example: Additional information on the current error
8
8
8 Error information and diagnostics User Manual SIPLACE 80S-20/F4
8.2 Calling error information Software Version SR.406.xx 02/2000 Issue US
390
8.2.2.2 Inserting or editing comments on errors
In all the error information views you are able to enter comments which you can then subsequently
edit if necessary. In this way, you can, for example, document the operations which you have
performed.
If a comment has been created in a view, this is indicated by the presence of a paper clip icon. 8
8
Inserting a comment
Å Click the Annotate button in the view in question.

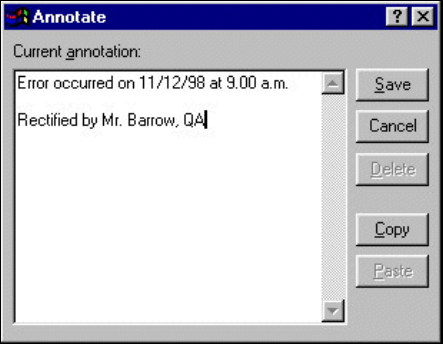

The following dialog box is opened.
8
Å Enter the text of your comment in the edit field.
Å Click the Save button to confirm your input.
The dialog box is closed.
The paper clip icon is now displayed in the current help system view (see section 8.2 - 3).
Click this icon if you want to open a window in which you can edit this comment.
Deleting a comment
Å Click the paper clip symbol in the appropriate view.
The dialog box is opened with the stored comment.
Å Click the Delete button.
The dialog box is closed. The paper clip icon is no longer displayed in the current view.
User Manual SIPLACE 80S-20/F4 8 Error information and diagnostics
Software Version SR.406.xx 02/2000 Issue US 8.3 Clearing errors
391
8.3 Clearing errors
Once an error has been eliminated, it must be cleared. This is not necessary in the case of errors
which cause a machine stoppage since they are automatically cleared when assembly is
resumed. 8
Once cleared, the error message is no longer displayed in the status bar. However, it is still
entered in the error table for the corresponding error type (see example in Fig. 8.2 - 2). 8
8
Å After eliminating the current error, click the Clear error button in main view. The error message
is removed from the status bar and assembly can be continued.
