6.1.1 Component vision module on the 12-segment revolver head

The component vision module (see item 2 in Fig. 6.1 - 3) essentially consists of the following mod-

ules: 6

– Optical lens

– CCD chip for creating an electronic image of the component

– CCD camera amplifier

– Three illumination levels – flat, average and steep – for optimum illumination of a wide

range of component shapes

– “Illumination control” board for setting the intensity of the individual illumination levels.

The component camera system is fastened to the top of the revolver head using four hexagon

socket-head screws. It is then held in place by two parallel pins. 6

The component camera system can be used to optically center and place components ranging

from 0402 up to and including PLCC 44 in size. The components therefore vary in size between

1.0mm x 0.5mm and 18.7mm x 18.7mm, and from 0.3mm and 6mm thick. The minimum lead

pitch can be as little as 0.5mm. 6

6 Vision functions User Manual SIPLACE 80S-20/F4

6.1 The vision systems on the placement machine Software version SR.406.xx 02/2000 Issue US

206

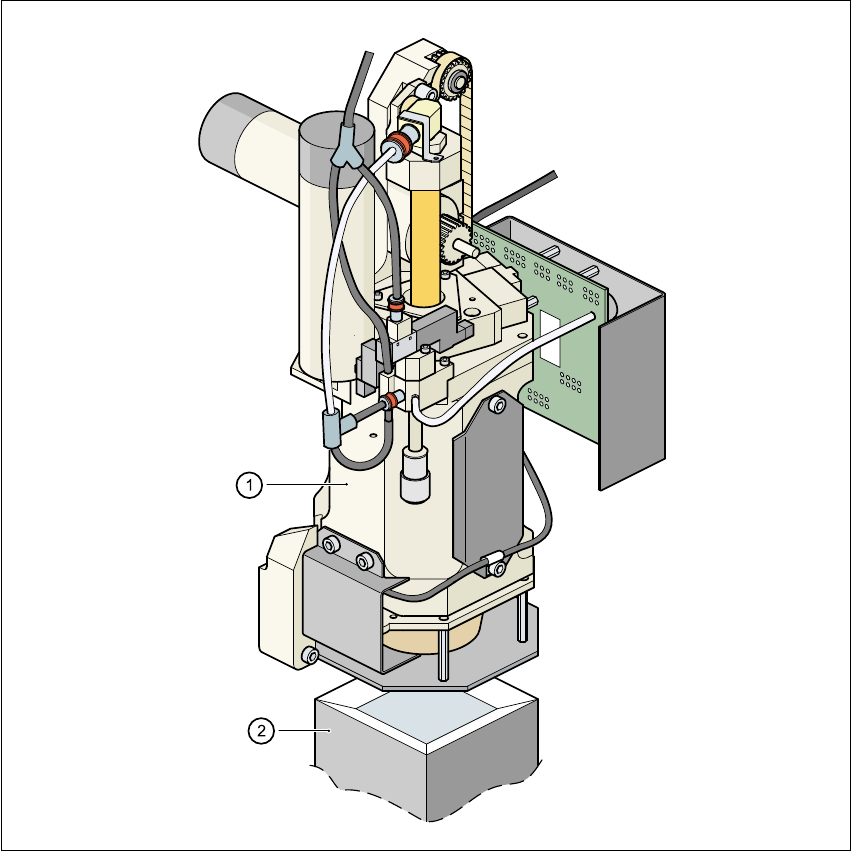

Fig. 6.1 - 3 Component camera system on the 12-segment revolver head

(1) 12-segment revolver head

(2) 24x24 component camera

(3) Component illumination control board

6.1.2 Component camera system on the Pick&Place head

The component camera system (see item 2 in Fig. 6.1 - 4) essentially consists of the following

modules: 6
