5 Single functions User Manual SIPLACE 80S-20/F4 5.2 Single functions, gant ry Software Version SR.406.xx 02/2000 Issue US 180 5.2.4.1 F unctions In the "V acuum te st" v iew only the "Measur e" butto…
User Manual SIPLACE 80S-20/F4 5 Single functions
Software Version SR.406.xx 02/2000 Issue US 5.2 Single functions, gantry
179
5.2.4 "Vacuum test" view
Å In the current view for the single functions for Gantry, click the symbol .
The user interface is switched to the "Vacuum test" view (see Fig. 5.2 - 4).
5
5
Fig. 5.2 - 4 "Vacuum test" view (12-nozzle revolver head)
5 Single functions User Manual SIPLACE 80S-20/F4
5.2 Single functions, gantry Software Version SR.406.xx 02/2000 Issue US
180
5.2.4.1 Functions
In the "Vacuum test" view only the "Measure" button is available. This is used to start the vacuum
test for all nozzles.
Measure 5
This function is used to start a head reference run. This measures the vacuum values in the open
and closed pick-up positions for each of the nozzles.
Å Click the Measure button.
The vacuum calculation procedure is started.
The calculated vacuum values for each of the nozzles are displayed in two columns, "Pick-up
open (mbar)" and "Pick-up closed (mbar)". You can use these values to see, for example,
whether a nozzle on a particular segment is dirty.
User Manual SIPLACE 80S-20/F4 5 Single functions
Software Version SR.406.xx 02/2000 Issue US 5.2 Single functions, gantry
181

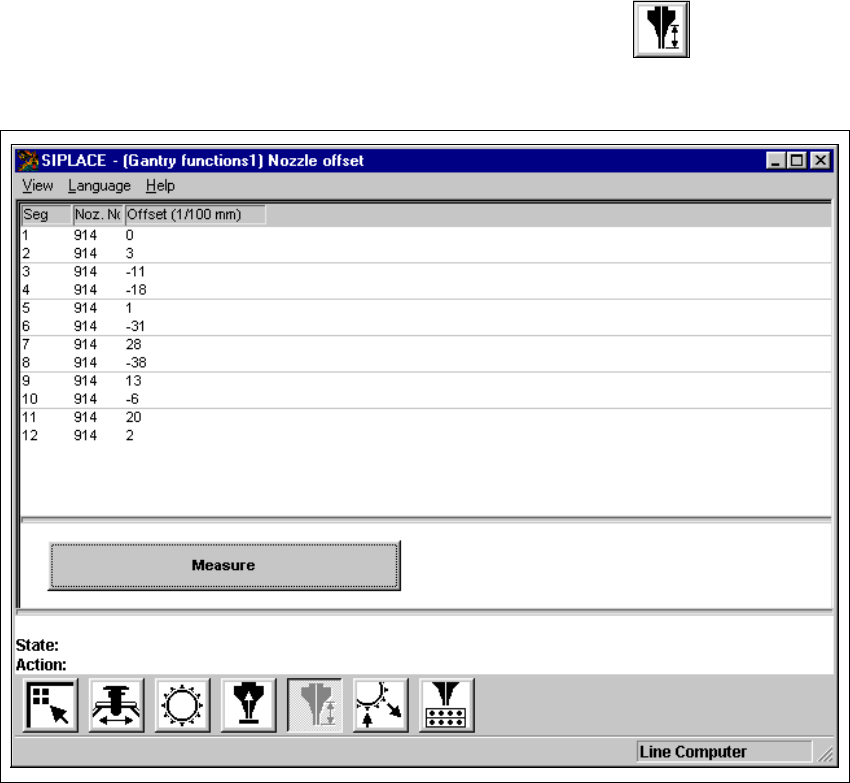

5.2.5 "Nozzle offset" view
5
Å In the current view for the single functions for Gantry, click the symbol .
The user interface is switched to the "Nozzle offset" view (see Fig. 5.2 - 5).
5
Fig. 5.2 - 5 "Nozzle offset" view (12-nozzle revolver head)
