6 Vision functions User Manual SIPLACE 80S-20/F4
6.5 Teach Fiducial Software version SR.406.xx 02/2000 Issue US
244
6.5.3.4 Define New Fiducial Option
With this option you can generate a new fiducial. 6
– Click on the Define new fiducial button.
The input box for the fiducial number and the fiducial name will appear on the screen.
6
Fig. 6.5 - 11 Select fiducial menu, Define new fiducial option, input box
– Input a fiducial number and the fiducial name.
– Conclude your input with OK or discard your input with Cancel.
– The new fiducial can also be taught with standard values and further processed.
– When finished save the fiducial by clicking on the Save fiducial button.
NOTE 6
If a fiducial number already exists after clicking on OK you will be asked if you want to over-
write the existing fiducial. 6
User Manual SIPLACE 80S-20/F4 6 Vision functions
Software version SR.406.xx 02/2000 Issue US 6.5 Teach Fiducial
245
6.5.3.5 Save Fiducial Option
With this option you can save fiducials together with their modified parameters. The button will
only become activated if you have 6
– changed the fiducial name or
– generated a new fiducial.
6
Fig. 6.5 - 12 Select fiducial menu, Save fiducial option
6 Vision functions User Manual SIPLACE 80S-20/F4
6.5 Teach Fiducial Software version SR.406.xx 02/2000 Issue US
246
6.5.4 Teach Fiducial Menu
As the diagram shows, the Teach fiducial menu offers the following options: 6
– Standard values
– Search area
– Change search area with
– low resolution,
– middle resolution and
– high resolution
6

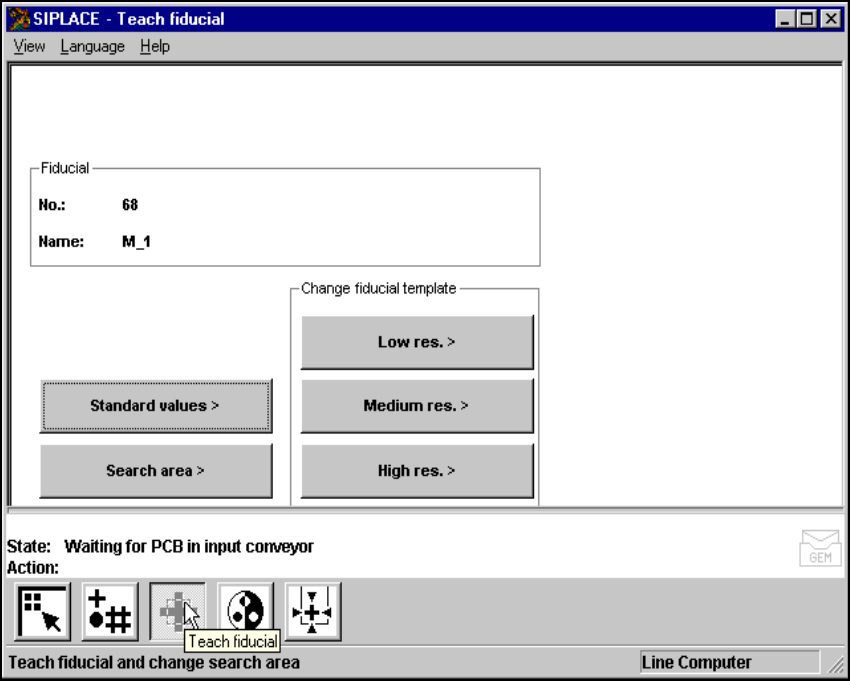

Fig. 6.5 - 13 Teach fiducial menu, options
