User Manual SIPLACE 80S-20/F4 11 Station extensions / hardware Software version SR.406.xx 02/2000 Issue US 11.1 Nozzle changer for the 12-segmen t revolver head 457 1 1.1.4 Notes on operation Å When you fill a maga zine …
11 Station extensions / hardware User Manual SIPLACE 80S-20/F4
11.1 Nozzle changer for the 12-segment revolver head Software version SR.406.xx 02/2000 Issue US
456
11
Fig. 11.1 - 2 Magazine and nozzle holders
11
(1) Position fiducial
(2) Locking plate
(3) Nozzle holder
(4) Hole for the parallel pin (7) for centering the magazines
(5) Hole for the parallel pin of the moving mechanism
(6) Slot for the parallel pin (7) for centering the magazines
(7) Parallel pin for centering the magazines
(8) Parallel pins for opening and closing the locking plate
(9) Magazines
User Manual SIPLACE 80S-20/F4 11 Station extensions / hardware
Software version SR.406.xx 02/2000 Issue US 11.1 Nozzle changer for the 12-segment revolver head
457
11.1.4 Notes on operation
Å When you fill a magazine with a certain nozzle type for the first time, mark the magazine with
an adhesive label.
PLEASE NOTE 11
Only one nozzle type must be used in each magazine.
Fill the magazines off the machine, and always replace complete magazines. 11
Å Open the locking plate, and insert the nozzles into the nozzle holders.
Å Close the locking plate so that the nozzles cannot drop out of the magazines.
CAUTION 11
The magazines must not be filled until all the nozzles on the revolver head have been re-
turned to their magazines. 11
Å See the UNIX line computer user manual for instructions on programming the nozzle changer
on the line computer.
PLEASE NOTE 11
Å Be careful not to drop components onto the magazines, since they could cause the locking
plate to jam.
Å Also avoid dropping components onto free feeder locations, since the components will stick to
the magnetic bar. The work flow may be interrupted if the feeders are not placed on the com-
ponent feeder table correctly. You should therefore regularly clean the magazines and free
locations.
11 Station extensions / hardware User Manual SIPLACE 80S-20/F4
11.1 Nozzle changer for the 12-segment revolver head Software version SR.406.xx 02/2000 Issue US
458
11.1.5 Position recognition
Every magazine has a position fiducial for position recognition purposes. 11
11
Fig. 11.1 - 3 Nozzle changer - position recognition
11

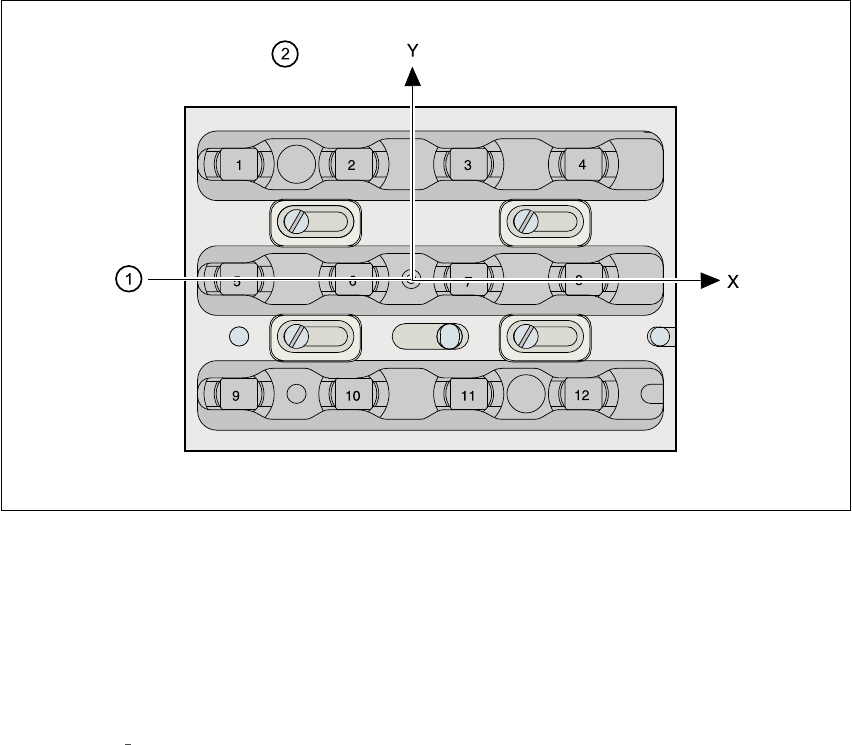

(1) Position fiducial
(2) Nozzle position in the magazine with respect to the position fiducial
11
See chapter 6
Vision functions for information on fiducial handling. 11
