1 Introduction User Manual SIPLACE 80S-20/F4 1.8 Technical data – ratings Software version SR.406.xx 02/2000 Issue US 40 1.8 T ech nical d at a – ra tings 1.8.1 T echnical dat a – elec trical ra tings 1.8.2 T echnical da…
User Manual SIPLACE 80S-20/F4 1 Introduction
Software version SR.406.xx 02/2000 Issue US 1.7 Electrical and pneumatic connection points
39
DANGER
The placement machine is supplied with 3 x 400 V or 3 x 208 V (US version) ± 5 %, 50/60 Hz
mains voltage. Consequently parts of these systems carry potentially lethal voltages, even when
switched off at the main switch. Incorrect handling of this placement machine can therefore result
in death or severe injury, or considerable damage to equipment. 1
WARNING
NEVER detach compressed air lines while they are still pressurized. Risk of injury. 1
1 Introduction User Manual SIPLACE 80S-20/F4
1.8 Technical data – ratings Software version SR.406.xx 02/2000 Issue US
40
1.8 Technical data – ratings
1.8.1 Technical data – electrical ratings
1.8.2 Technical data – compressed air supply
1.8.3 Technical data – compressed air specification
Maximum particle size by density, based on ISO/DIS 8573-1 (class 1) 1
1.8.4 Technical data – noise emissions
1.8.5 Technical data – permissible ambient factors
Supply voltage 3 x 400 VAC ± 5 %; 50/60 Hz (Europe)
3 x 208 VAC ± 5 %; 50/60 Hz (U.S.A.)
Fuses 3 x 16 A (3 x 400 VAC, 3 x 208 VAC)
Total connected load 5 kVA
Total power 2,9 kW (S-20), 1,9 kW (F
4
)
Power failure up to 20 msec
Compressed air pressure Min. 5.5 bar (S-20), min 6 bar (F
4
), max. 8 bar
Compressed air consumption 400 Nl/min.
Operating pressure 5.2 bar (fixed)
Particle size 0.1 µm
Particle density 0.1 mg/m³
Maximum oil content (class 1) Particle density 0.01 mg/m³
Pressure dewpoint (class 4) Dewpoint +3°
Emission value at a workstation (L
pAc
) 71 dB (A) DIN EN ISO 11204 (i)
Sound power level (L
WAc
) 85 dB (A) E-DIN EN ISO 3744 (i) 001-0307
Room temperature Between 15°C and 35°C
Atmospheric humidity 30 to 75%
(but no higher than 45% on average in order to prevent
any possibility of condensation on the machine).
User Manual SIPLACE 80S-20/F4 1 Introduction
Software version SR.406.xx 02/2000 Issue US 1.9 Dimensions and weight of the machine
41
1.9 Dimensions and weight of the machine
1.9.1 Dimensions of the machine

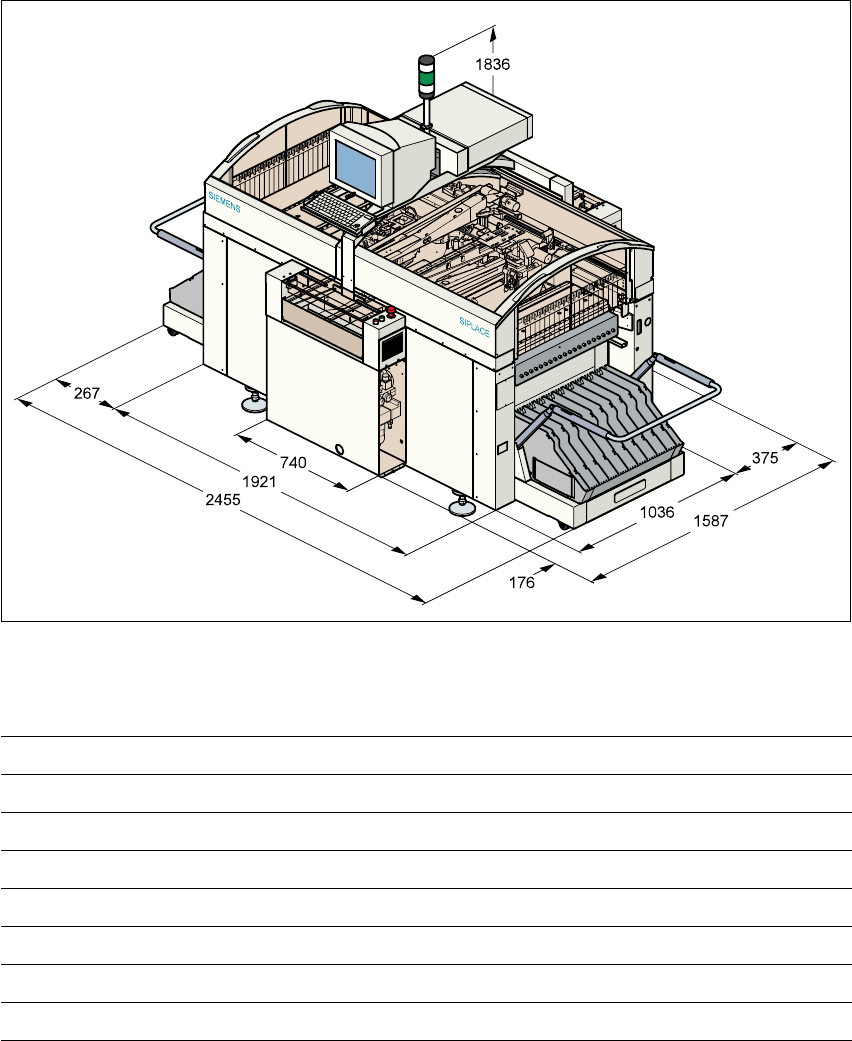

Fig. 1.9 - 1 Dimensions of the machine
1.9.2 Technical data – dimensions, weight
Length 1587 mm with conveyor belts
Width 2455 mm with brackets
Height with warning lamp 1836 mm standard height
Ground clearance 120 mm standard height
Weight of basic module 1500 kg
Weight fully equipped approx. 2000 kg
Permissible load per unit area on foundation Min. 1000 kg/m²
Load per unit area on mounting feet 4.42 kg/cm²
