8 Error information and diagnostics User Man ual SIPLACE 80S-20/F4 8.4 Diagnostics Software Version SR.406.xx 02/2000 Issue US 394 8.4.2.1 I nformation bu tton Å If inform ation is availabl e on cer tain menus, th e Info…
User Manual SIPLACE 80S-20/F4 8 Error information and diagnostics
Software Version SR.406.xx 02/2000 Issue US 8.4 Diagnostics
393
Å The diagnostics main screen is displayed on the station software screen.
Fig. 8.4 - 2 Diagnostics main screen
Key to Fig. 8.4 - 2
1 Information button 2 Finish diagnostics
3 Return to diagnostics main screen 4 Diagnostics buttons
8
NOTE
The symbol and status bars of the station software main menu remain displayed on the screen
and you can change to this view.
If you wish to return to diagnostics, press the Diagnostics button again. 8
8 Error information and diagnostics User Manual SIPLACE 80S-20/F4
8.4 Diagnostics Software Version SR.406.xx 02/2000 Issue US
394
8.4.2.1 Information button
Å If information is available on certain menus, the Information button will be displayed.
NOTE
This information must be complied with and can be displayed by pressing the information button. 8
Å Click on the Information button.

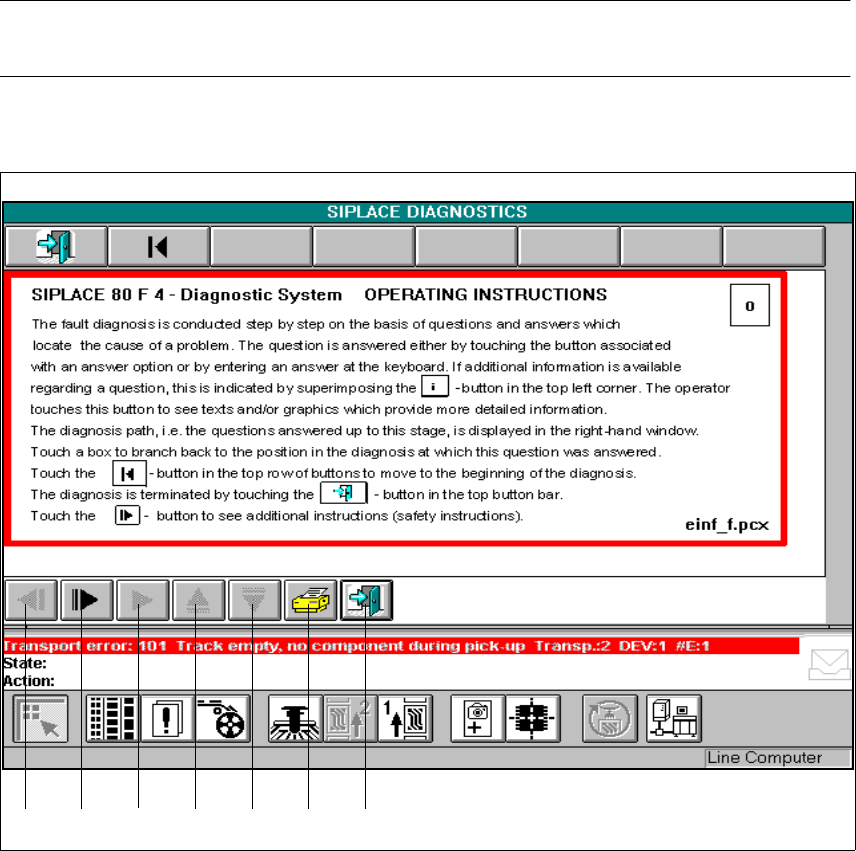

Fig. 8.4 - 3 Example of information display
Key to Fig. 8.4 - 3
1 Scroll back by window (if active) 2 Scroll down by window (if active)
3 Display additional information (if active) 4 Scroll up displayed window
5 Scroll down displayed window 6 Print displayed window
7 Return to previous window
1 2 3 4 5 6 7
User Manual SIPLACE 80S-20/F4 8 Error information and diagnostics
Software Version SR.406.xx 02/2000 Issue US 8.4 Diagnostics
395
8.4.2.2 Diagnostics buttons
You can select one of three different ways of starting the diagnostics facility. 8
Diagnostics with automatic takeover of the error message
By clicking on this button you can start diagnostics for the errors displayed in the status line. 8
Diagnostics with manual input of the error message 8
Å Click on this button.
Å Into the input field type the error number for which you wish to start diagnostics and confirm
this with Enter.

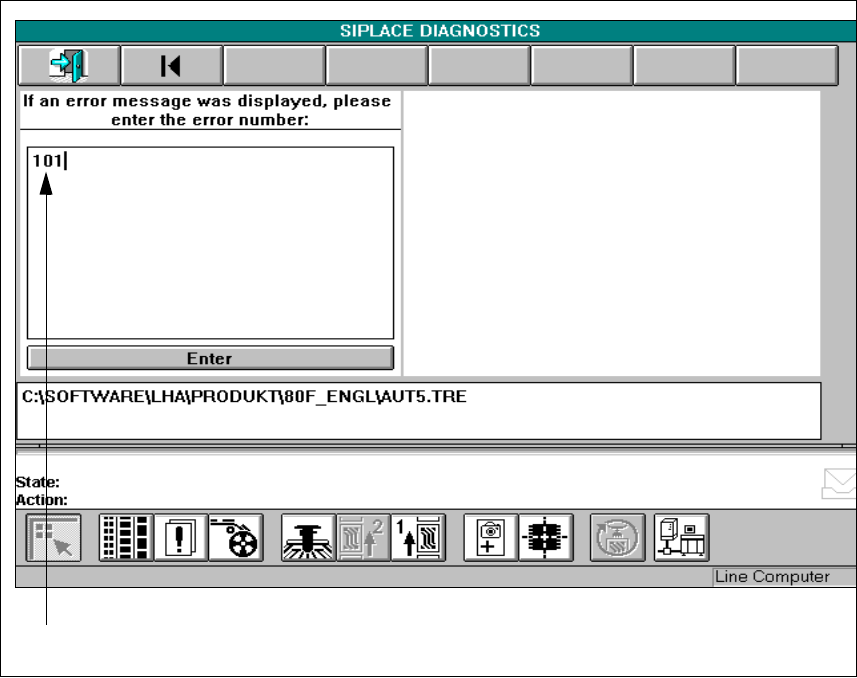

Fig. 8.4 - 4 Diagnostics with manual input of the error message
Key to Fig. 8.4 - 4
1 Input field
