6 Vision functions User Manual SIPLACE 80S-20/F4 6.6 Test Component S oftware version SR.406.xx 02/2000 Issue US 282 6.6.4 T est Component Menu If you cli ck on the T est component icon the c orrespon ding me nu will dr …
User Manual SIPLACE 80S-20/F4 6 Vision functions
Software version SR.406.xx 02/2000 Issue US 6.6 Test Component
281
6.6.3.3 Save GF data Option
Using this option you can save package forms together with their changed parameters. The button
will only be active after you have modified the package form data. 6
6
Fig. 6.6 - 13 Select package form menu, Save GF data option
6 Vision functions User Manual SIPLACE 80S-20/F4
6.6 Test Component Software version SR.406.xx 02/2000 Issue US
282
6.6.4 Test Component Menu
If you click on the Test component icon the corresponding menu will drop down. As the diagram
shows, the following options, organized by group, are available to you: 6
Component Edit GF data 6
–Pick up – Illumination
– Display – Package dimension
–Test – Pin dimension
– Measure – Ball illustration
– Store image – Transform
– Evaluat. time – Select component type (F machines only)
– Measure mode 6
NOTE 6
Buttons are active when the text on the button is black (rather than gray). This means that you
can launch the associated function by clicking on the button with the mouse.
If you have not yet loaded a package form all options will be inactive. 6
Å From the Select package form menu load a package form (see Section 6.6.3 on page 277).
The loaded package form will be displayed in the Package form display field with package
form number, package form name, and camera type. All options are accessible with the excep-
tion of Test, Measure, Store image and Evaluat. time. The Component type option is re-
served for the F machines only.
User Manual SIPLACE 80S-20/F4 6 Vision functions
Software version SR.406.xx 02/2000 Issue US 6.6 Test Component
283
6

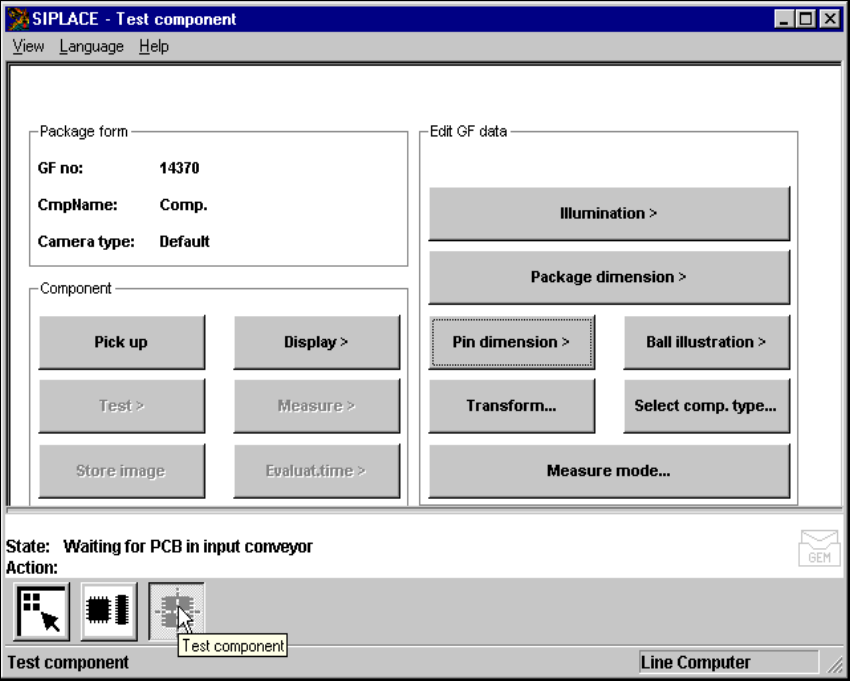

Fig. 6.6 - 14 Test component menu, options
