6 Vision functions User Manual SIPLACE 80S-20/F4 6.1 The vision systems on t he placement machine Software version SR.406.xx 02/2000 I ssue US 210 6.1.4 V ision evaluat ion unit The visio n evalua tion unit ( see ite m 1…
User Manual SIPLACE 80S-20/F4 6 Vision functions
Software version SR.406.xx 02/2000 Issue US 6.1 The vision systems on the placement machine
209
The PCB camera system (see item 1 and 2 in Fig. 6.1 - 5) essentially consists of the following
components: 6
– Optical lens
– CCD chip
– CCD camera amplifier
– An illumination level for illuminating PCB fiducials and ink spots
The PCB camera system is fixed to the revolver head on the underside of the gantry. As standard,
it can center PCBs from 50mm x 50mm up to 460mm x 460mm (2" x 2" to 18" x 18"), with the
thickness ranging from 0.5mm to 4.5mm. 6
6 Vision functions User Manual SIPLACE 80S-20/F4
6.1 The vision systems on the placement machine Software version SR.406.xx 02/2000 Issue US
210
6.1.4 Vision evaluation unit
The vision evaluation unit (see item 1 and 2 in Fig. 6.1 - 6) plugs into the machine’s control unit.
It processes and analyzes the electrical signals from the component and PCB camera systems.
Corrected values are calculated from any deviations from setpoint. These values are then used to
recalculate the placement positions and rotational angle for placement. 6
The vision evaluation unit also performs a component identification process. If the synthetic model
and the package form measurement do not tally, for example, the component will not be placed. 6
The precise component pick-up position, which is particularly important for small components, is
also determined in the vision evaluation unit. Fiducials on the feeders are used to determine the
deviation in position of the individual feeders. 6
The electronic image signals from components, PCB fiducials, and feeder fiducials can be trans-
ferred from the vision evaluation unit, via the video multiplexer, to the station monitor, where they
are used for measuring and testing purposes. 6
6
6
6

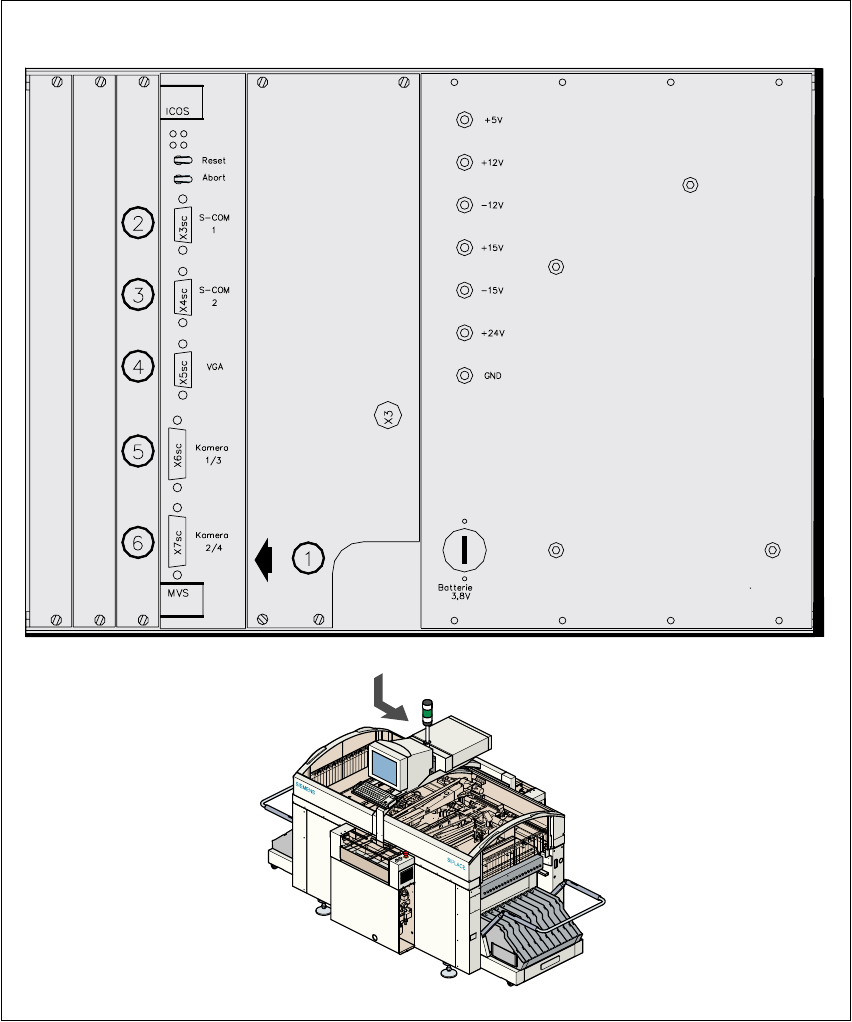

Key to Fig. 6.1 - 6
(1) MVS 340 vision evaluation unit
(2) COM1 interface
(3) COM2 interface
(4) HS
3
L interface
(5) Camera connections:
(6) Camera connections
6
6
S-20 F4
1 PCB camera, gantry 1 PCB camera
3 CO camera, gantry 1 CO camera, 12-segment revolver head
S-20 F4
2 PCB camera, gantry 2 Fine-Pitch-vision modul
4 CO camera, gantry 2 Flip-Chip-vision modul
User Manual SIPLACE 80S-20/F4 6 Vision functions
Software version SR.406.xx 02/2000 Issue US 6.1 The vision systems on the placement machine
211
6
Fig. 6.1 - 6 Vision evaluation unit
