11 Station extensions / hardware
11.1 Nozzle changer for the 12-segment revolver head
11.1.1 Overview
S-20 11
The placement system is supplied as standard with two revolver heads. As an option, a nozzle
changer can be installed for each revolver head. 11
F
4
11
A nozzle changer for the 12-segment revolver head can be installed, without loss of feeder
locations, to the left of the PCB conveyor. 11
This enables the nozzle configuration to be changed quickly, thus allowing the revolver head to be
quickly adapted to the needs of the placement process. 11
The nozzle changer consists of at least one and up to seven magazines, each with twelve nozzle
holders (see Fig. 11.1 - 1). The magazines are mounted on a common WPC tray.Each magazine
is centered using two parallel pins, and fixed in place with a screw. 11
11
11.1.2 Technical data - Nozzle changer for the 12-segment revolver head
11
Nozzle changer for the 12-segment revolver head
Dimensions (length x width x height) 560 mm x 60 mm x 46 mm
Number of nozzle holders min.12 / max. 84
Nozzle types 7xx
Time required to open and close the locking plate < 200 ms
Capacity of the reject bin approx. 50 nozzles
Pneumatic system 5.3 bar air line
11 Station extensions / hardware User Manual SIPLACE 80S-20/F4
11.1 Nozzle changer for the 12-segment revolver head Software version SR.406.xx 02/2000 Issue US
454
11

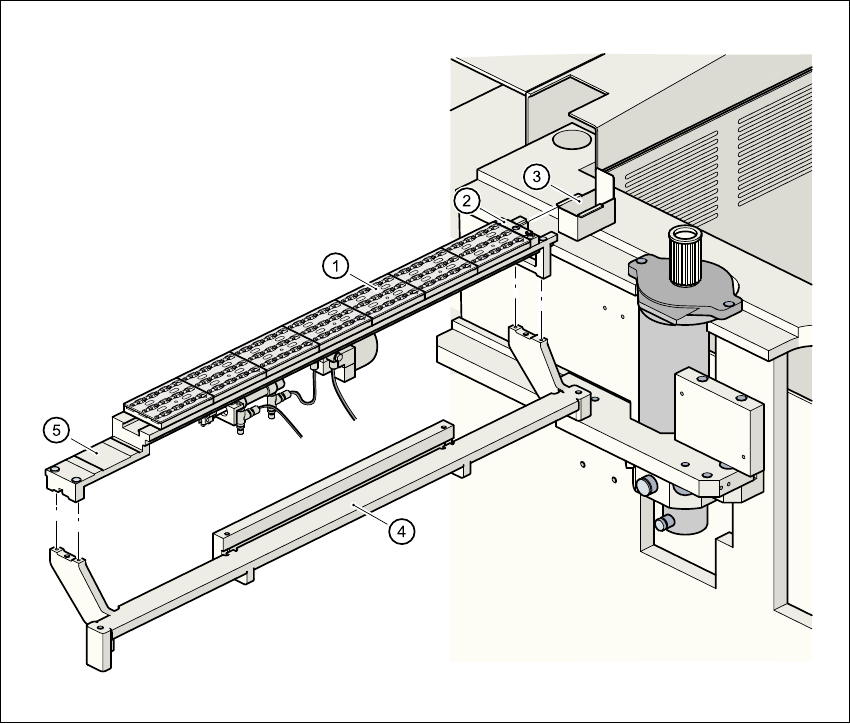

Fig. 11.1 - 1 Overview of the nozzle changer for the 12-segment revolver head
11.1.3 Basic principles
The nozzles are seated in nozzle holders, and are fixed in place by a movable locking plate. The
locking plate can be moved up to 6 mm by a pneumatic cylinder. All the nozzles are either clamped
or released, depending on the position of this plate. The locking plate is always left in the “closed”
position if no nozzle exchange is taking place. 11
All the nozzle changer magazines have a position fiducial for position recognition purposes. The
magazine locations on the nozzle changer are identified by numbers 1 to 7. The nozzle holders in
the magazines are numbered consecutively from 1 to 12 (see Fig. 11.1 - 3). 11
(1) Magazine (2) Reject device for nozzles
(3) Collecting bin for rejected nozzles (4) Nozzle changer, base unit
(5) Nozzle changer, support 11
