5.2.3 "Gantry functions" view
Å In the current view for the single functions for Gantry, click the symbol .
The user interface is switched to the "Gantry functions" view (see Fig. 5.2 - 3).
5
Fig. 5.2 - 3 "Gantry functions" view
NOTE
All travel functions of the main axes (x and y) must be started using the start button.
A message appears in the status field on the view which asks you to "Please press the start but-
ton".
If the machine covers are not closed, the message "Close cover" will appear in the status field. 5
5
5 Single functions User Manual SIPLACE 80S-20/F4
5.2 Single functions, gantry Software Version SR.406.xx 02/2000 Issue US
178
5.2.3.1 Functions
In the "Gantry functions" view the following functions are available to test the gantry.
The required function is triggered by clicking on the corresponding button. 5
Go to set-up position 5
This function is used to check the set-up position of the gantry.
When the gantry is in the set-up position, it is possible to unload and retool the feeders.
Å Click the Go to set-up position button and press the start button as often as you are asked to.
The gantry moves (from the feeder area) into the set-up position.
Go to service position 5
This function is used to check the service position of the gantry.
When the gantry is in the service position, it is possible to carry out work on the placement head
and on other parts of the gantry.
Å Click the Go to service pos’n button and press the start button as often as you are asked to.
The gantry moves into the service position.
Go to waiting position 5
This function is used to check the waiting position of the gantry.
When the gantry is not required for placement, it moves to the waiting position.
Å Click the Go to waiting pos’n button and press the start button as often as you are asked to.
The gantry moves into the waiting position.
Go to zero pulse 5
This function is used to check the zero pulse of the gantry.
The zero pulse is the origin of the gantry to which the counting procedures of the incremental
encoder refer. For a reference run, the gantry moves to this origin.
Å Click the Go to zero pulse button and press the start button as often as you are asked to.
The gantry moves to the origin of the x and y axes.
Gantry reference run 5
This function is used to perform a reference run with the x and y axes of the active gantry. The
axes move to the origin to determine their position in the machine.
Å Click the Gantry reference run button and press the start button as often as you are asked to.
The gantry performs a reference run.
User Manual SIPLACE 80S-20/F4 5 Single functions
Software Version SR.406.xx 02/2000 Issue US 5.2 Single functions, gantry
179
5.2.4 "Vacuum test" view
Å In the current view for the single functions for Gantry, click the symbol .
The user interface is switched to the "Vacuum test" view (see Fig. 5.2 - 4).
5
5

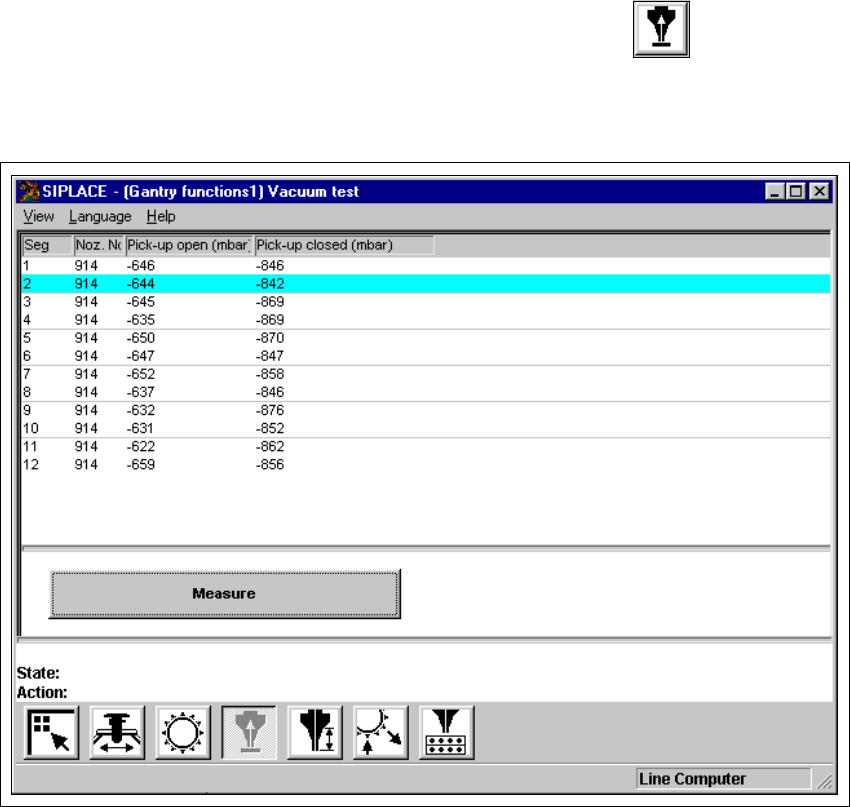

Fig. 5.2 - 4 "Vacuum test" view (12-nozzle revolver head)
