User Manual SIPLACE 80S-20/F4 3 Introduction and basic concepts Software Version SR.406.xx 02/2000 Issue US 3.2 Principles of the graphic user interface 121 Nozzle configuration err or 3 3 3 Transport error 1 3 3 3 Fiduc…

100%1 / 564
3 Introduction and basic concepts User Manual SIPLACE 80S-20/F4
3.2 Principles of the graphic user interface Software Version SR.406.xx 02/2000 Issue US
120
Meaning of the other icons and markings 3
A message window will be overlaid if a track, machine or transport error occurs (see the following
examples). 3
Machine error gantry 1 3
3
3
3
3
3
3
3
3
Track empty error 3
3
3
User Manual SIPLACE 80S-20/F4 3 Introduction and basic concepts
Software Version SR.406.xx 02/2000 Issue US 3.2 Principles of the graphic user interface
121
Nozzle configuration error 3
3
3
Transport error 1 3
3
3
Fiducial error 3
3
3
3
3
3
3
3
3
3
3 Introduction and basic concepts User Manual SIPLACE 80S-20/F4
3.2 Principles of the graphic user interface Software Version SR.406.xx 02/2000 Issue US
122
3.2.2.2 Toolbar in main view
3

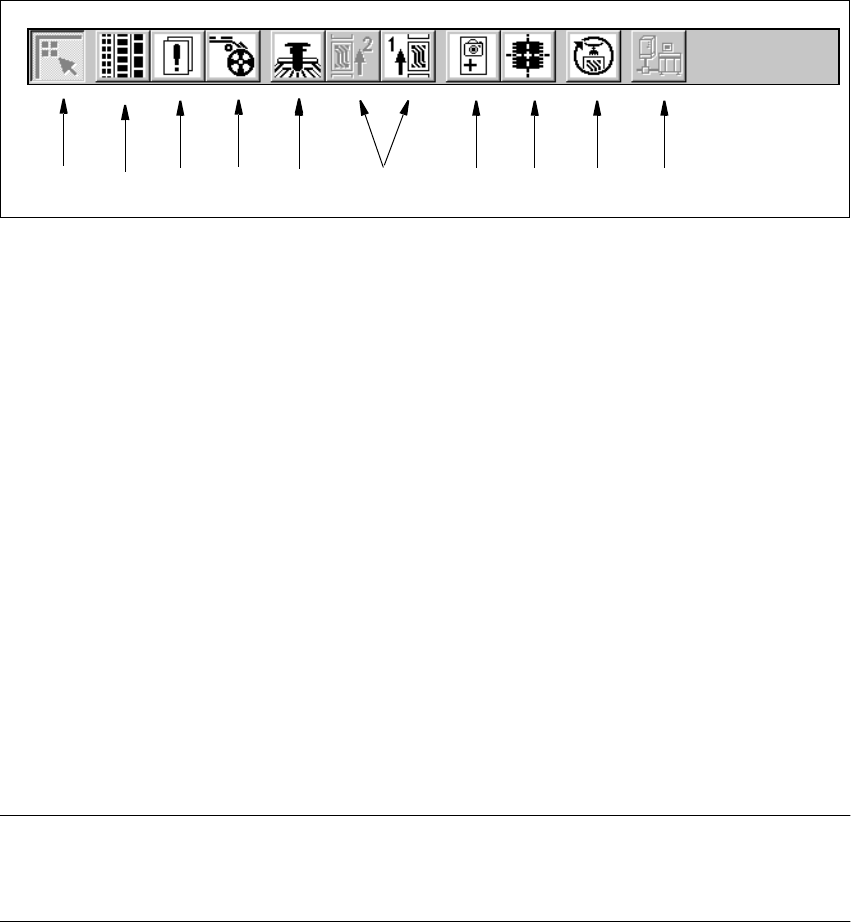

Fig. 3.2 - 2 Toolbar in main view
3
Key to Figure 3.2 - 2
(1) Main view
(2) Set-up, placement functions (for a description see Chapter 4)
(3) Error, placement functions (for a description see Chapter 4)
(4) Component feeder, placement functions(for a description see Chapter 4)
(5) Gantry, single functions (for a description see Chapter 5)
(6) Conveyor 1 and 2, single functions (for a description see Chapter 5)
(7) Teach fiducials, vision functions (for a description see Chapter 6)
(8) Test component, vision functions (for a description see Chapter 6)
(9) Start SITEST test program (for a description see User’s Manual
"Test Program SITEST")
(10) GEM interface (for a description see Chapter 12)
3
NOTES to points 6 and 10
The single functions for Conveyor 2 can only be called if a twin conveyor has been configured.
The GEM interface functions cannot be called unless this has been configured. 3
Å Click the required button in the toolbar.
The user interface is switched to the corresponding view.
The button corresponding to the view which is currently active itself becomes inactive.
3
1 8 9 10764325
