1.12 Overview of the modules - gantry
1.12.1 Position of the gantry

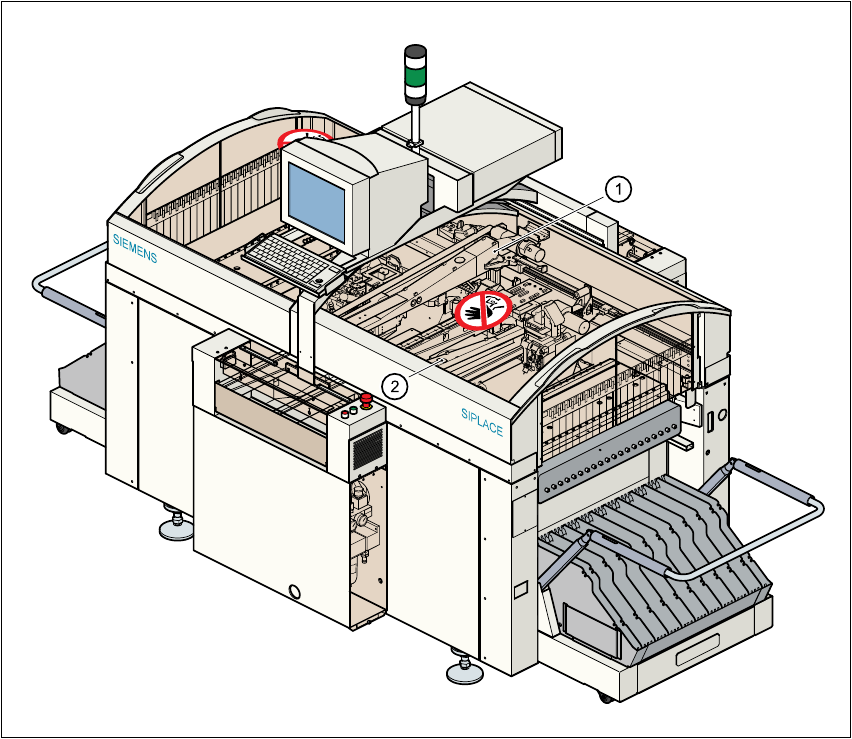

Fig. 1.12 - 1 Position of the gantry
S-20 1
(1) Gantry 1
(2) Gantry 2
F4 1
(1) Gantry 1
The gantry system consists of two functional groups 1
– X axis and
–Y axis.
1 Introduction User Manual SIPLACE 80S-20/F4
1.12 Overview of the modules - gantry Software version SR.406.xx 02/2000 Issue US
52
1.12.2 Structure of the X axis
1

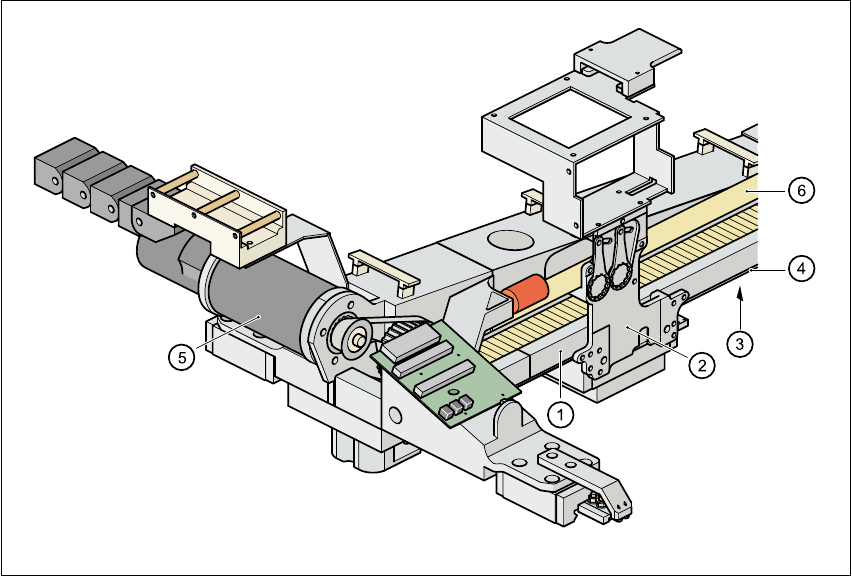

Fig. 1.12 - 2 Structure of the X axis
The x axis essentially consists of the following main modules: 1
– Gantry arm (1)
– Head mount (2)
– X axis measuring system (3)
– X axis guide system (4)
– X axis DC servomotor
– Toothed belt (6)
1
The head mount holds the following components: 1
– Sub-gantry camera (camera for the PCB vision module)
– Head board
– Measuring head for the x axis measuring system
– Revolver head
User Manual SIPLACE 80S-20/F4 1 Introduction
Software version SR.406.xx 02/2000 Issue US 1.12 Overview of the modules - gantry
53
1.12.3 Technical data of the X axis
1.12.4 Structure of the Y axis
The y axis essentially consists of the following main modules: 1
– DC servomotor
– Y axis toothed belt
– Y axis guide system
– Y axis measuring system
1
Each y axis is driven by a three-phase AC servomotor. An anti-crash circuit prevents the paths of
the gantries meeting. 1
1.12.5 Technical data of the Y axis
Driving mechanism DC servomotor/toothed belt
Max. speed 2.0 m/sec.
Travel path 620 mm
Distance measuring system Linear metal scale
Scale length 646 mm
Resolution 2.5 µm
Driving mechanism DC servomotor/toothed belt
Max. speed 2.5 m/sec.
Path of the gantries 910 mm
Distance measuring system Linear metal scales
Scale length 970 mm
Resolution 2.5 µm
