User Manual SIPLACE 80S-20/F4 4 Placemen t functions Software Version SR.406.xx 02/2000 Issue US 4.2 Error display 153 4.2.4 "T ranspor t errors " view 4 Fig. 4.2 - 3 "T ransport errors" view 4.2.4.1 …
4 Placement functions User Manual SIPLACE 80S-20/F4
4.2 Error display Software Version SR.406.xx 02/2000 Issue US
152
4.2.3 "Machine errors" view
4
Fig. 4.2 - 2 "Machine errors" view
4.2.3.1 Meaning of the entries in the table for "Machine errors"
– No
Error number of the corresponding error
– Seg
Number of the segment (see also Section 4.2.2.1)
– DEV
Short description of the sender of the error
(e.g. "MC1" of an error has occurred on gantry 1)
– #E
Error counter (see also Section 4.2.2.1)
– Text
Description of the corresponding error
User Manual SIPLACE 80S-20/F4 4 Placement functions
Software Version SR.406.xx 02/2000 Issue US 4.2 Error display
153
4.2.4 "Transport errors" view
4
Fig. 4.2 - 3 "Transport errors" view
4.2.4.1 Meaning of the entries in the table for "Transport errors"
– No
Error number of the corresponding error.
– Transp
The number of the transport in which the error has occurred is entered here.
1 = Transport 1 (Standard transport or right transport track for dual transports)
2 = Transport 2 (Left transport track for dual transports)
– DEV
Short description of the sender of the error
– #E
Error counter (see also Section 4.2.2.1).
– Text
Description of the corresponding error.
4 Placement functions User Manual SIPLACE 80S-20/F4
4.2 Error display Software Version SR.406.xx 02/2000 Issue US
154
4.2.5 "General errors" view
4

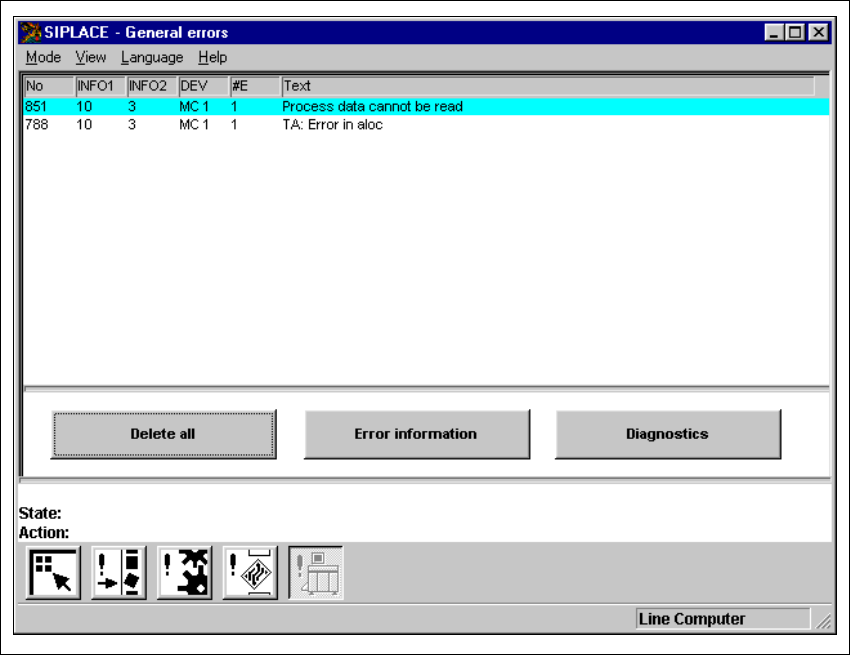

Fig. 4.2 - 4 "General errors" view
4.2.5.1 Meaning of the entries in the table for "General errors"
– No
Error number of the corresponding error.
– Info1 / Info 2
These are only intended for internal use by Siemens.
– DEV
Short description of the sender of the error
– #E
Error counter (see also Section 4.2.2.1.
–Text
Description of the corresponding error.
