Gantry functions and transport functions are known as single functions. They are used to set up
and test the machines and to carry out particular actions following a machine shutdown caused
by an error.
Single functions can be used to control various function modules in a defined manner.
WARNING
Single functions may only be executed by appropriately qualified and trained personnel, since
improper handling can result in personal injury/damage to the machine.
5 Single functions User Manual SIPLACE 80S-20/F4
5.2 Single functions, gantry Software Version SR.406.xx 02/2000 Issue US
170
5.2 Single functions, gantry
NOTE
The travel functions of the x or y axis can only be carried out when the machine cover is closed.
To execute this function, press the start button.
As a rule, the gantry only travel slowly. 5
5
Å Click on the icon in the toolbar in the Main view (or choose the option SF gantry 1
from the View menu).
The user interface is switched to the "Revolver head functions" view (see Fig. 5.2 - 1).
5
5
5.2.1 "Revolver head functions" view
The revolver head functions can be used to control all functions relating to the revolver head. 5
NOTE
The revolver head functions can be executed with the machine cover open. To do this the key-
operated switch must be turned to position I. 5
5
5
User Manual SIPLACE 80S-20/F4 5 Single functions
Software Version SR.406.xx 02/2000 Issue US 5.2 Single functions, gantry
171
5

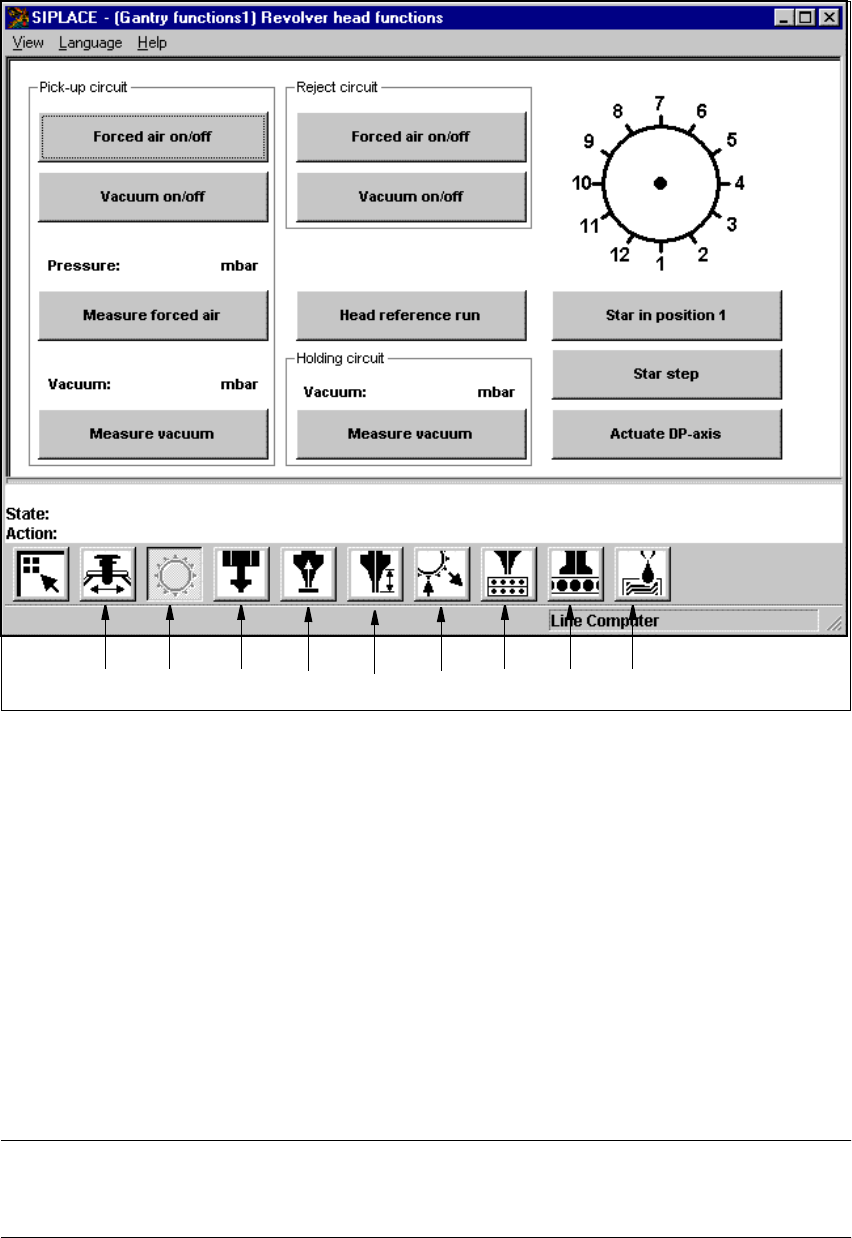

Fig. 5.2 - 1 "Revolver head functions" view (12-nozzle revolver head)
Key to Fig. 5.2 - 1
(1) Gantry functions
(2) Revolver head functions
(3) IC-head functions
(4) Vacuum test, revolver head
(5) Nozzle offset, revolver head
(6) Nozzle configuration, revolver head
(7) Nozzle changer configuration, revolver head
(8) Nozzle changer configuration IC-head
(9) Fluxer head functions
NOTE
The current position of the revolver head segment is shown by the graphic above the "Star in
position 1" button. 5
12 34 56789
