8 Error information and diagnostics User Man ual SIPLACE 80S-20/F4 8.4 Diagnostics Software Version SR.406.xx 02/2000 Issue US 398 Å Clic k on th e OK button and answe r the q uestions as ked by c licking on the c orresp…
User Manual SIPLACE 80S-20/F4 8 Error information and diagnostics
Software Version SR.406.xx 02/2000 Issue US 8.4 Diagnostics
397
8.4.3 Procedure
NOTE
The procedure is explained with the help of an example which uses Diagnostics with automatic
take-over of error message. The procedure is identical for all diagnostic methods and error
messages. 8
If an error occurs, the error message will be displayed on the status line in the main view
(see ). 8
Å Click on the Diagnostics button.
Å Click on the Diagnostics with automatic take-over of error message button.
Å Click on the Information button; read and comply with this information.
NOTE
Always read and comply with the information when an Information button appears. 8
Fig. 8.4 - 6 Obtaining information on an error
8 Error information and diagnostics User Manual SIPLACE 80S-20/F4
8.4 Diagnostics Software Version SR.406.xx 02/2000 Issue US
398
Å Click on the OK button and answer the questions asked by clicking on the corresponding
buttons.
Fig. 8.4 - 7 Display window in the diagnostics menu
Key to Fig. 8.4 - 7
1 Action window 2 Error message display window
3 Diagnostic method display window
Action window
In the action window, you will be asked about the error in question and provided with a selection
of answers to choose from. If information is available on the action in question, the information
button will be displayed here. 8
Diagnostic method display window
A display window is opened here for every question which you answer for the diagnostics facility.
You can change over to this question by clicking on a display window. 8
Error message display window
The error number of the error which has occurred is displayed here. 8
User Manual SIPLACE 80S-20/F4 8 Error information and diagnostics
Software Version SR.406.xx 02/2000 Issue US 8.4 Diagnostics
399

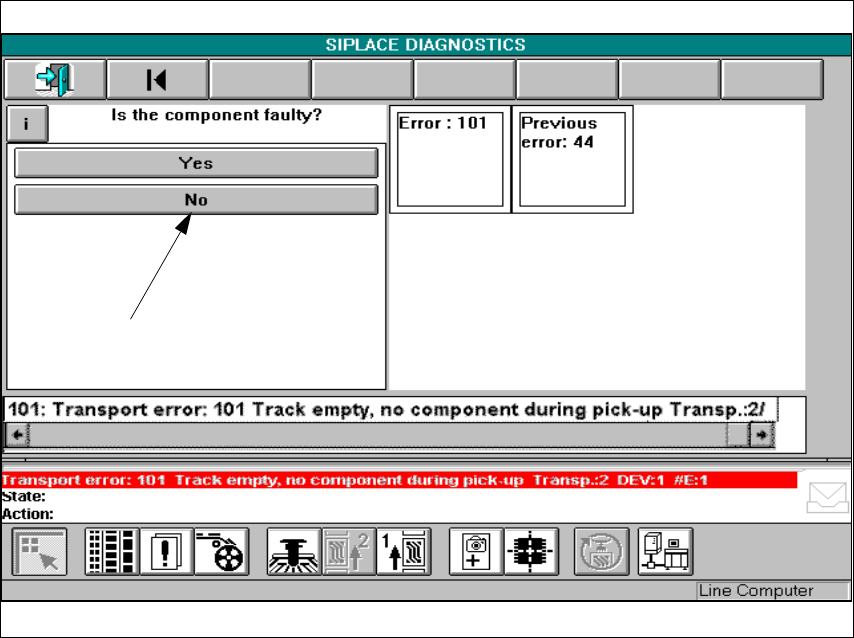

Fig. 8.4 - 8 Example of a question
Å Answer the question asked by clicking on the appropriate button.
The following screen will be displayed:
