4 Placement functions User Manual SIPLACE 80S-20/F4 4.2 Error display Software Version SR.406.xx 02/2000 Issue US 152 4.2.3 "Mac hine errors" v iew 4 Fig. 4.2 - 2 "Machine errors" view 4.2.3.1 Meani n…
User Manual SIPLACE 80S-20/F4 4 Placement functions
Software Version SR.406.xx 02/2000 Issue US 4.2 Error display
151
4.2.2.1 Meaning of the entries in the table for "Track errors"
4
– No
The error number of the corresponding error is entered in this column.
– CmpName
The name of the component for which the error has occurred is entered here.
– Loc.
The number of the location for which the corresponding component is set up is entered in this
column.
– Tr D T
The number of the track and of the feeder division for the corresponding component or the
number of the waffle pack tray compartment and the level in the waffle pack changer is entered
here.
– Seg
The number of the segment that was used to insert the component is entered here.
– #E
This column displays how often the corresponding error has occurred until now.
– Text
The error that has occurred is described in this column.
4
4 Placement functions User Manual SIPLACE 80S-20/F4
4.2 Error display Software Version SR.406.xx 02/2000 Issue US
152
4.2.3 "Machine errors" view
4
Fig. 4.2 - 2 "Machine errors" view
4.2.3.1 Meaning of the entries in the table for "Machine errors"
– No
Error number of the corresponding error
– Seg
Number of the segment (see also Section 4.2.2.1)
– DEV
Short description of the sender of the error
(e.g. "MC1" of an error has occurred on gantry 1)
– #E
Error counter (see also Section 4.2.2.1)
– Text
Description of the corresponding error
User Manual SIPLACE 80S-20/F4 4 Placement functions
Software Version SR.406.xx 02/2000 Issue US 4.2 Error display
153
4.2.4 "Transport errors" view
4

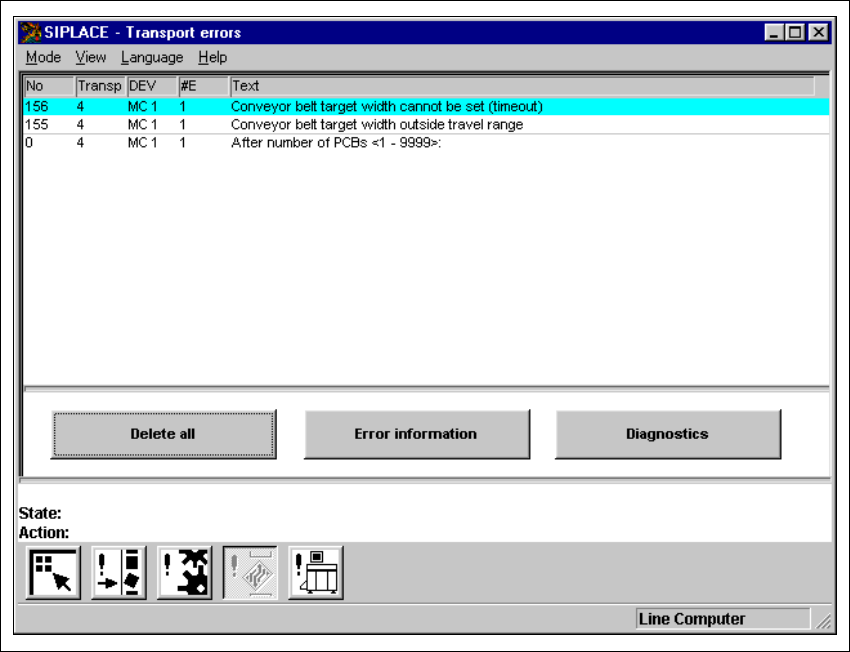

Fig. 4.2 - 3 "Transport errors" view
4.2.4.1 Meaning of the entries in the table for "Transport errors"
– No
Error number of the corresponding error.
– Transp
The number of the transport in which the error has occurred is entered here.
1 = Transport 1 (Standard transport or right transport track for dual transports)
2 = Transport 2 (Left transport track for dual transports)
– DEV
Short description of the sender of the error
– #E
Error counter (see also Section 4.2.2.1).
– Text
Description of the corresponding error.
