2 Operational safety User Manual SIPLACE 80S-20/F4 2.1 Safety instructions Software version SR.406.xx 02/2000 I ssue US 72 2 Item 2 from the dia gram 2.1 - 3 s howin g the warni ng signs on the control unit of the b asic…
User Manual SIPLACE 80S-20/F4 2 Operational safety
Software version SR.406.xx 02/2000 Issue US 2.1 Safety instructions
71
2
Fig. 2.1 - 3 Warning signs on the basic machine - part 3
Key to Fig. 2.1 - 3
T Direction of PCB transport 2
2
Item 1 from the diagram 2.1 - 3 showing the warning signs on the control unit on the basic machine 2
2
2
2
ACHTUNG
Handhabungsvorschriften
beachten
Elektrostatisch gefährdete
Bauelemente
ATTENTION
Electrostatic sensitive devices
Observe precautions for
handling
2 Operational safety User Manual SIPLACE 80S-20/F4
2.1 Safety instructions Software version SR.406.xx 02/2000 Issue US
72
2
Item 2 from the diagram 2.1 - 3 showing the warning signs on the control unit of the basic machine 2
2
2.1.6 Additional warning signs for the NAFTA region

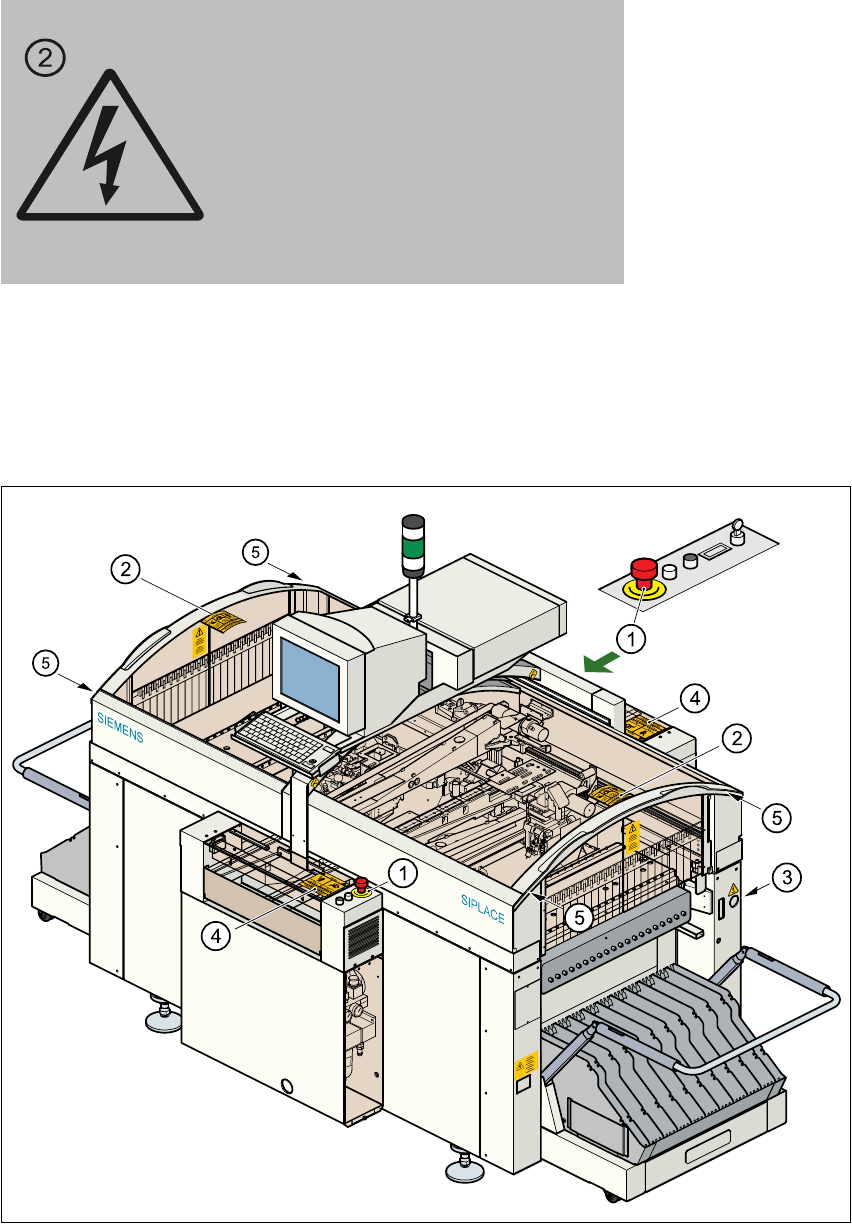

Fig. 2.1 - 4 Warning signs on the basic machine - NAFTA region
WARNING! MAIN POWER VOLTAGE
Completely isolate the machine
before removing the protective cover.
Capacitor discharge time
tmin. = wait 0.3 minutes
User Manual SIPLACE 80S-20/F4 2 Operational safety
Software version SR.406.xx 02/2000 Issue US 2.1 Safety instructions
73
2
Item 1 in Fig. 2.1 - 4 showing the warning signs on the basic machine - NAFTA region 2
2
Item 2 in Fig. 2.1 - 4 showing the warning signs on the basic machine - NAFTA region 2
2
Item 3 in Fig. 2.1 - 4 showing the warning signs on the basic machine - NAFTA region (on the cover
over the terminal panels) 2
