User Manual SIPLACE 80S-20/F4 10 Component handling
Software version SR.406.xx 02/00 US Edition 10.4 Tape container
431
10.4 Tape container
10.4.1 Overview
Reels up to 15" in diameter may be used, although for 15" reels you should use spindles as well.
Insert the spindles into the partitions as shown in Fig. 10.4 - 1. 10
PLEASE NOTE 10
We recommend that you use spindles if the tape reel diameter exceeds 5". This will ensure that
the feeder modules operate reliably. 10

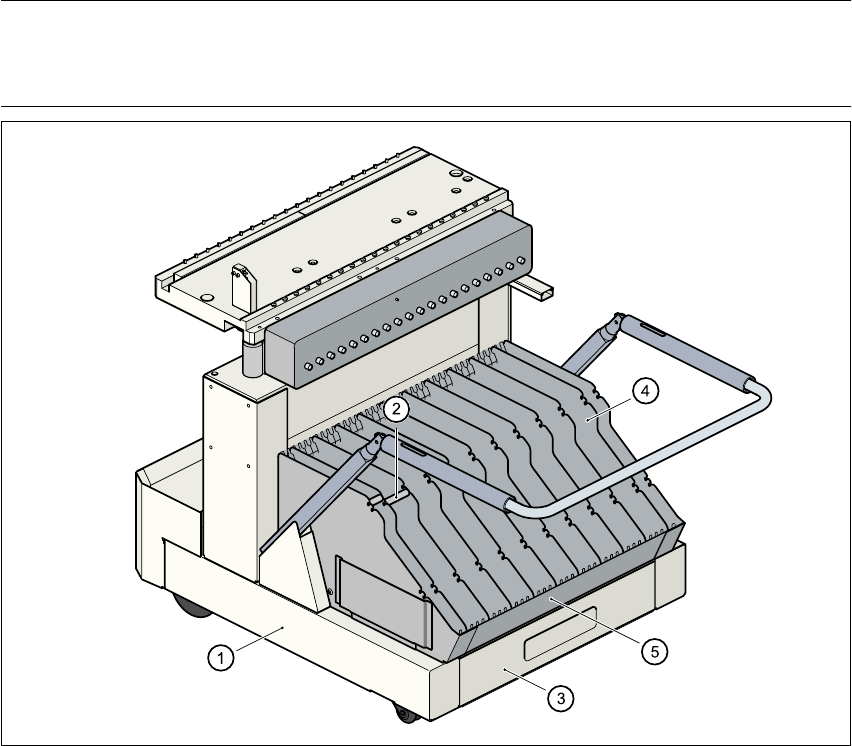

Fig. 10.4 - 1 Component table and tape container
(1) Component changeover table (2) Spindle
(3) Waste tape container (4) Partition
(5) Tape container 10
10 Component handling User Manual SIPLACE 80S-20/F4
10.5 Used tape cutter Software version SR.406.xx 02/00 US Edition
432
10.5 Used tape cutter
10.5.1 General
The placement system has a used tape cutter at each of the two component table locations. It is
used to cut off the waste tape. The cut pieces of tape drop into the waste tape container in the
component table. 10
Å Empty the waste tape container every day.

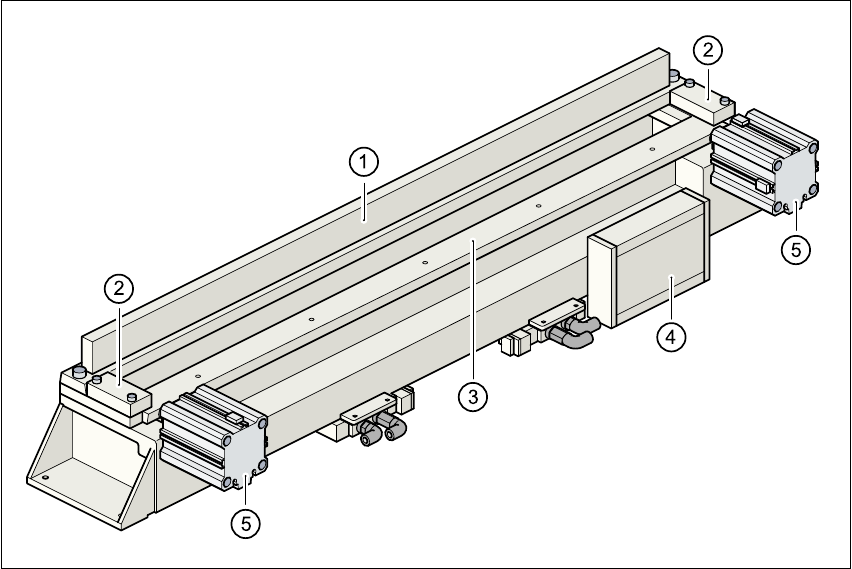

Fig. 10.5 - 1 Used tape cutter
(1) Stationary cutting blade
(2) Retainer
(3) Moving cutting blade
(4) Electronic control unit
(5) Short stroke cylinder
User Manual SIPLACE 80S-20/F4 10 Component handling
Software version SR.406.xx 02/00 US Edition 10.5 Used tape cutter
433
10.5.2 Inserting the tape into the tape cutter
10

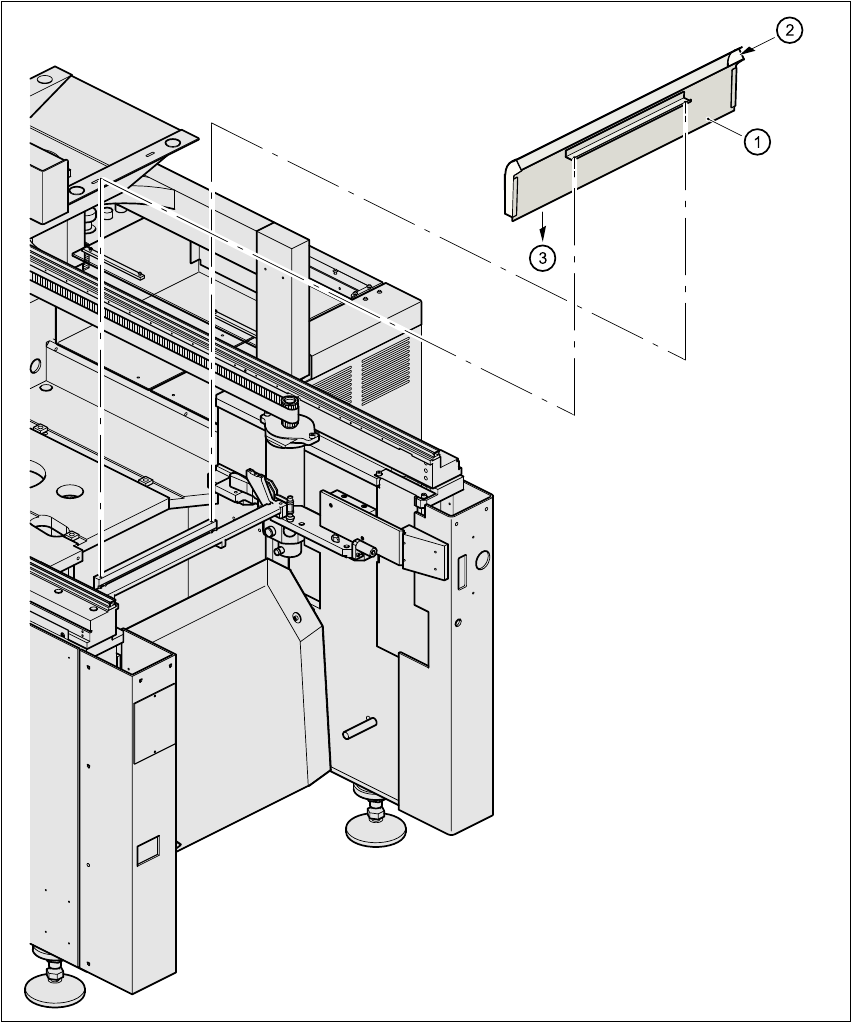

Fig. 10.5 - 2 Inserting the tape into the tape cutter
(1) Used tape channel (2) Used tape
(3) Tape feeder module (4) To used tape cutter
