Calibration
HLGB-10306-01
Auto Calibration (Recognition of
Relationship for the Multiple Recognition)
SHEET
1/4
Auto Calibration (Recognition of Relationship for the Multiple
Recognition)
[Necessary jigs]
A Calibration data FD
B Calibration plate jig
C Positioning pins for calibration plate
D BF00900 nozzle (1 pc.)
E BF60400 nozzle (7 pcs.)
F Calibration jig chip (t=3.4, 1 pc.)
G Calibration jig chip (t=1.4, 8 pcs.)
H Calibration jig chip (glass)
[Procedure]
When performing recognition of relationship for the Multiple Recognition subsequently from
calibration of position relationship between the fixed camera and nozzle, start operation from the
procedure 6.
1 Load the calibration data.
For calibration data loading procedure, refer to “Calibration Data Load [HLGB-10105-01]”.
2 Install the calibration plate jig.
For mounting method of the calibration plate jig, refer to “Install the Calibration Plate Jig [HLGB-10101-01]”.
3 Put the jig tip on the calibration plate.
1. Put 8 thinner jig chips (t=1.4mm) to
front side.
2. Put thicker jig chip (t=3.4mm) to the
right end of the deep row.
3. Put jig chip (glass) on the right
countersunk section.
Set the jig chips so that surface on which glass
black point (pattern) is printed is directed
upward.
E
D
A
B
C
F
G H
Jig chip (t=3.4mm)
Jig chip (t=1.4mm) Jig chip (glass)
Calibration
HLGB-10306-01
Auto Calibration (Recognition of
Relationship for the Multiple Recognition)
SHEET
2/4

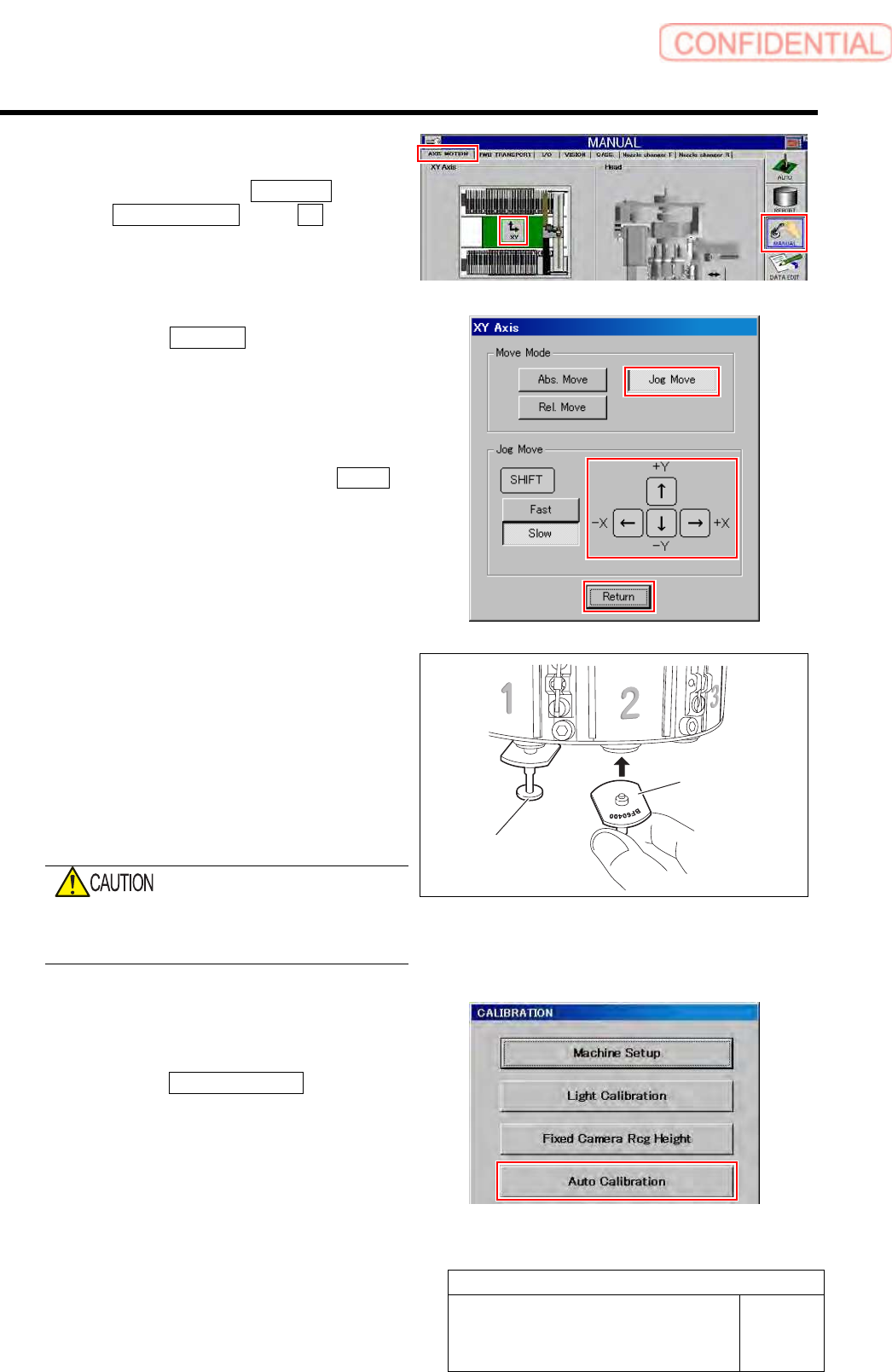

4 Move the head clear of the work area.
1. Click in an order of MANUAL menu
AXIS MOTION tab XY button.
XY Axis screen is displayed.
2. Click the Jog Move button in the move
mode.
3. Press the cursor key to move the head
to a position where working is easily
performed.
4. After moving the head, click the Return
button to close the XY axis screen.
5 Install the jig nozzles to head.
1. Install the BF00900 nozzles (1 piece)
to the turrets No.1.
2. Install the BF60400 nozzles (7 pieces)
to the turrets No.2～8.
Attach the nozzle so that the mark of the nozzle
type comes outer side of the turret.
Do not execute the automatic replacement of
the nozzle using the nozzle changer when the
calibration has not been completed.
6 Display a Recognition of relationship for
Multiple Recognition screen.
1. Click the Auto Calibration button on
the CALIBRATION screen.
Multi-functional machine calibration screen is
displayed.
BF60400 nozzle
BF00900 nozzle
Calibration
HLGB-10306-01
Auto Calibration (Recognition of
Relationship for the Multiple Recognition)
SHEET
3/4
2. Click the Recognition of relationship
for the Multiple Recognition button on
the Multi-functional machine
calibration screen.
Recognition of relationship for Multiple
Recognition screen is displayed.
7 Start calibration of relationship for the
Multiple Recognition.
1. Click the Start button of Sequence 1.
2. Press the [START] button to start the
auto calibration.
Sequence after the Start button is clicked is
subsequently executed.
8 Check that it was normally ended, and click
the Save button.
Calibration result is saved.
If an error occurs and the process aborts, clean
the jig chips and then restart the calibration
from Sequence 1.
