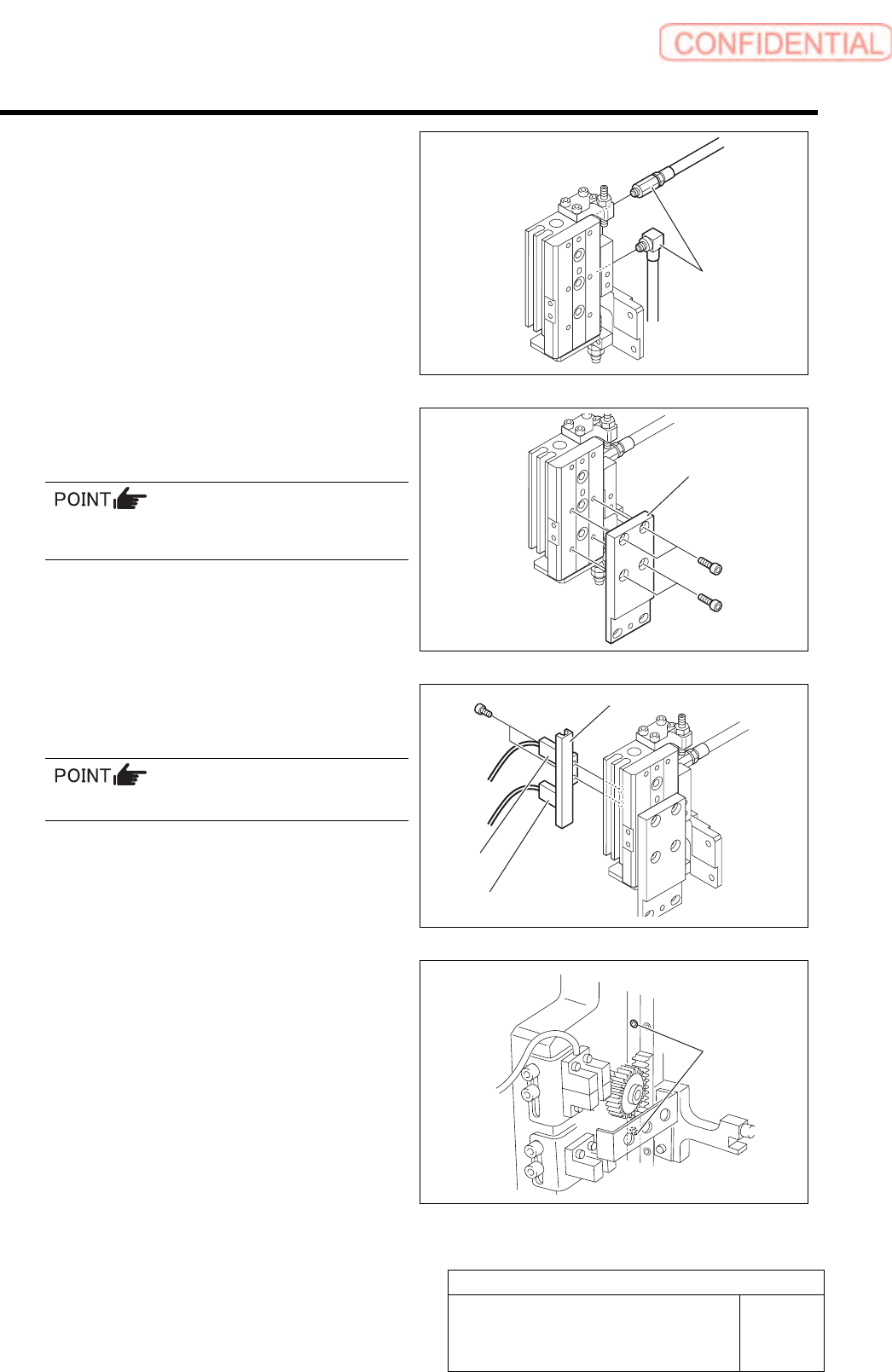

Pickup Check Camera Part
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
SHEET
5/7
6 Connect the pipe fitting.
7 Apply small amount of LOCTITE 242 to
4-CP3x6 and secure the camera holder.
Apply AFC grease thinly to the pin press-fitted
in the camera holder.
8 Attach the cylinder sensor holder and the
cylinder sensor with 2-CP3x5.
SSB-4 comes top and SSB-2 comes bottom.
9 Attach the pickup check Up/Down unit of
Pick up check camera with 2-CP4x6 from
rear side of the head.
Pipe fitting
Camera holder
Cylinder sensor holder
SSB-4
SSB-2
2-CP4x6
Pickup Check Camera Part
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
SHEET
6/7
10 Secure the pickup check camera with
2-CP4x8 and connect the CAM2-UF camera
cable connector.
11 Connect the air tubes to the speed controller
on the rear side of the head. After
connecting the air tubes, bundle them
together using the cable tie (Insulock).
12 Connect SSD-2 and SSB-4 to the SSB
board on the side of the head, and then
fasten the cables with the cable tie
(Insulock).
13 Install the F-axis to the head.
For the F-axis unit removal procedure, refer to
“F-Axis Belt Replacement Procedure
[RPGB-10101-01]”.
14 Connect the air and turn on the system
power.
CAM2-UF
Pickup check
camera
Air tubes
SSB board
SSB-2
SSB-4
2-CP4x8
Pickup Check Camera Part
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
SHEET
7/7
15 Move the cylinder up and downward to
adjust the installing position of the cylinder
up/down sensor.
1. Click the Check button on the ORG
OFFSET screen of the M/C SETUP.
2. Adjust the sensor position so that LED
on the sensor lights up at positions of
cylinder rising end and lowering end.
16 Execute pickup camera set up and pickup check camera calibration.
・ For the pickup check camera setup procedure, refer to “Pickup Check Camera Setup [HLGB-10208-01]”.
・ For the pickup check camera calibration procedure, refer to “Pickup Check Camera Calibration [HLGB-10308-01]”.
Cylinder up senso
r
Cylinder down
senso
r
