Setting UPS w h e n exchanging h a r d disk WKGB-10103-02 [Power of f machine] 1. Press p ower off bu tton on ma chine front side. 2. T urn off the breaker . Power On Switch Power Off Switch Setting UPS when exchanging h…

Setting UPS when exchanging hard disk

WKGB-10103-02

Setting UPS when exchanging

hard disk

13/14

[Shut down Windows]

This work should

be done on the machine

front and rear separately.

1. Select “

Shut Down

” of Windows Start

Menu.

Setting UPS when exchanging hard disk

WKGB-10103-02

[Power off machine]

1. Press p

ower off button on machine

front side.

2. Turn off the breaker.

Power On Switch

Power Off Switch

Setting UPS when exchanging

hard disk

14/14

Install Tray Unit (Including machine modification)

SHEET

1/73

WKGB-10104-03

Installing Tray Unit

(Including machine modification)

Install Tray Unit (Including machine modification)

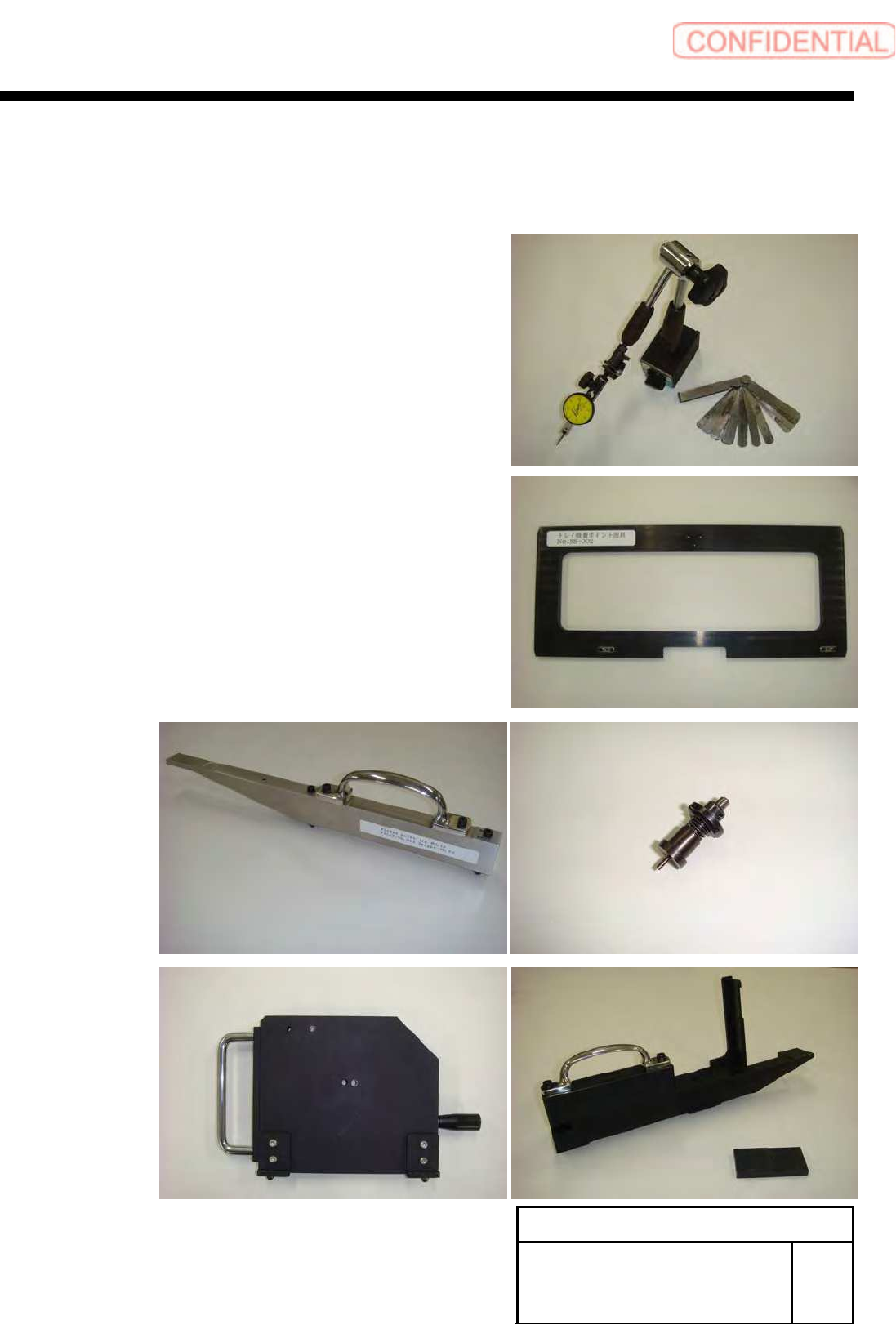

[Necessary jig/tool]

・Magnet Stand

・Dial Gauge(Resolution=0.1[mm] Max>1.2[mm])

・Thickness Gauge

・Tray Pick Up Point Jig

・Reference Jig Nozzle

・Area sensor adjustment Jig

・Feed Adjusting Jig

・Shutter sensor adjustment jig

・Pick Up Point Jig(For Cassette)

・Spanner(17[mm],24[mm],30[mm])

・Hex-Wrench(10 [mm] )

・Scale(300[mm])

・Thickness Gauge(0.3[mm],0.5[mm],1.0[mm])
