Install Tray Unit (Including machine modification) SHEET 18/73 WKGB-10104-03 Installing Tray Unit (Including machine modification) 6 Connection of tray coupling cable 1. Loosen the CP6x12 and pull pout the I/O unit 1 and…

Install Tray Unit (Including machine modification)

SHEET

17/73

WKGB-10104-03

Installing Tray Unit

(Including machine modification)

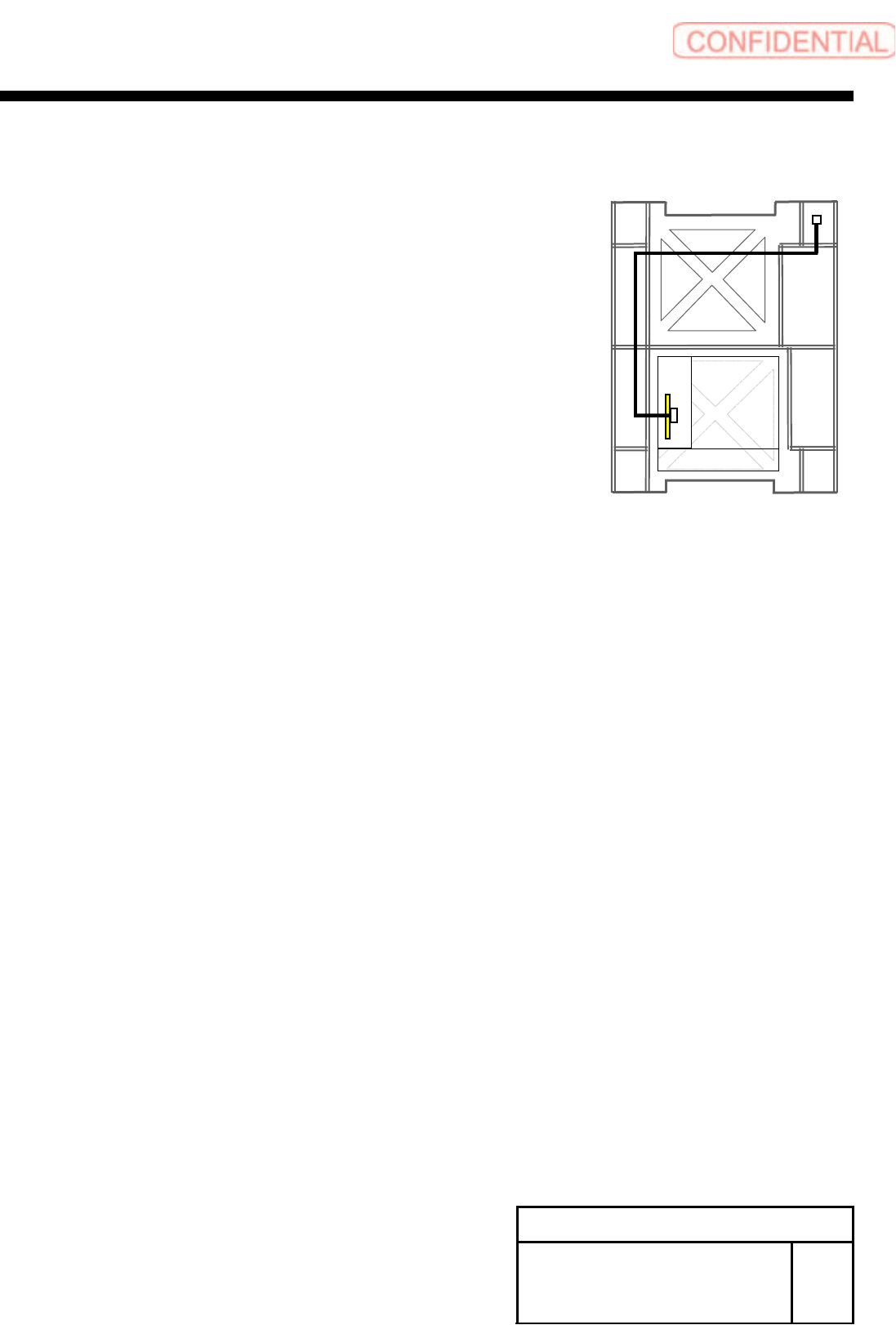

3. Connect the EI0-14 of EX2 I/O cable to the CN14

of EX2 I/O board and wire EX2 I/O cable to rear

side of mounter.

4. Connect the TY-CTL3 of the EX2 I/O cable to

TY0-CTR3 of the tray I/F panel.

Front

Install Tray Unit (Including machine modification)

SHEET

18/73

WKGB-10104-03

Installing Tray Unit

(Including machine modification)

6 Connection of tray coupling cable

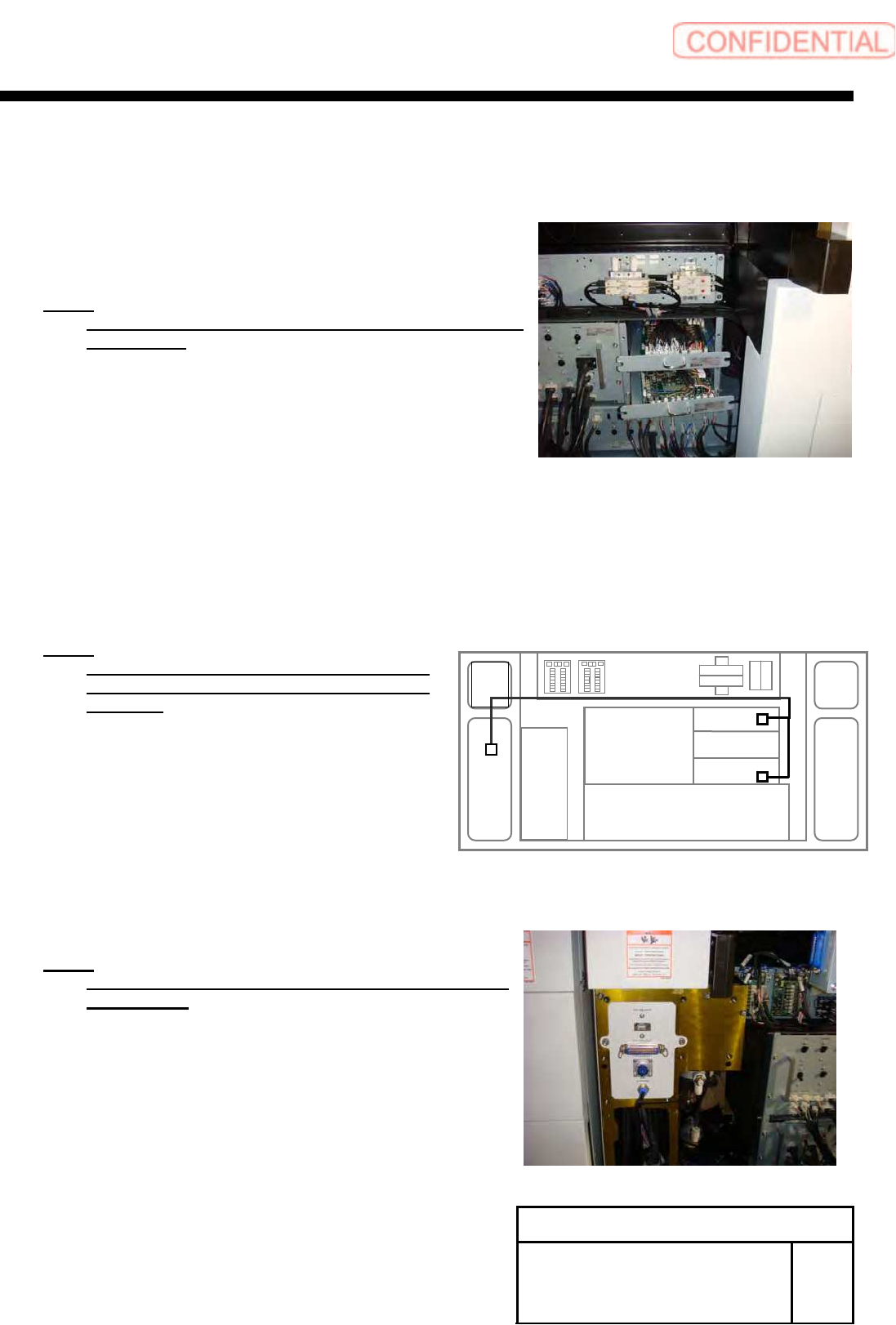

1. Loosen the CP6x12 and pull pout the I/O unit 1

and I/O unit 3 to a position where working can be easily

performed.

NOTE:

Do not forcedly pull them out. Otherwise, the cable may

be damaged.

2. Connect the ELR-12 to CN12 on the emergency

I/L Board in the I/O unit 3, and connect SR-5,

SR-16 to CN5, CN16 on the safety relay board in

the I/O unit.

NOTE:

Remove the jumper connector connected

CN12 on E I/L board and connected CN5 on

SR board.

7 Install the tray I/F panel with the

2-CP6X8.

NOTE:

Connect terminal connectors to the TY-MLOUT and

TY-CTLOUT.

I/O 2

I/O 1

I/O 3

TY-CTL1

TY-CTL2

Install Tray Unit (Including machine modification)

SHEET

19/73

WKGB-10104-03

Installing Tray Unit

(Including machine modification)

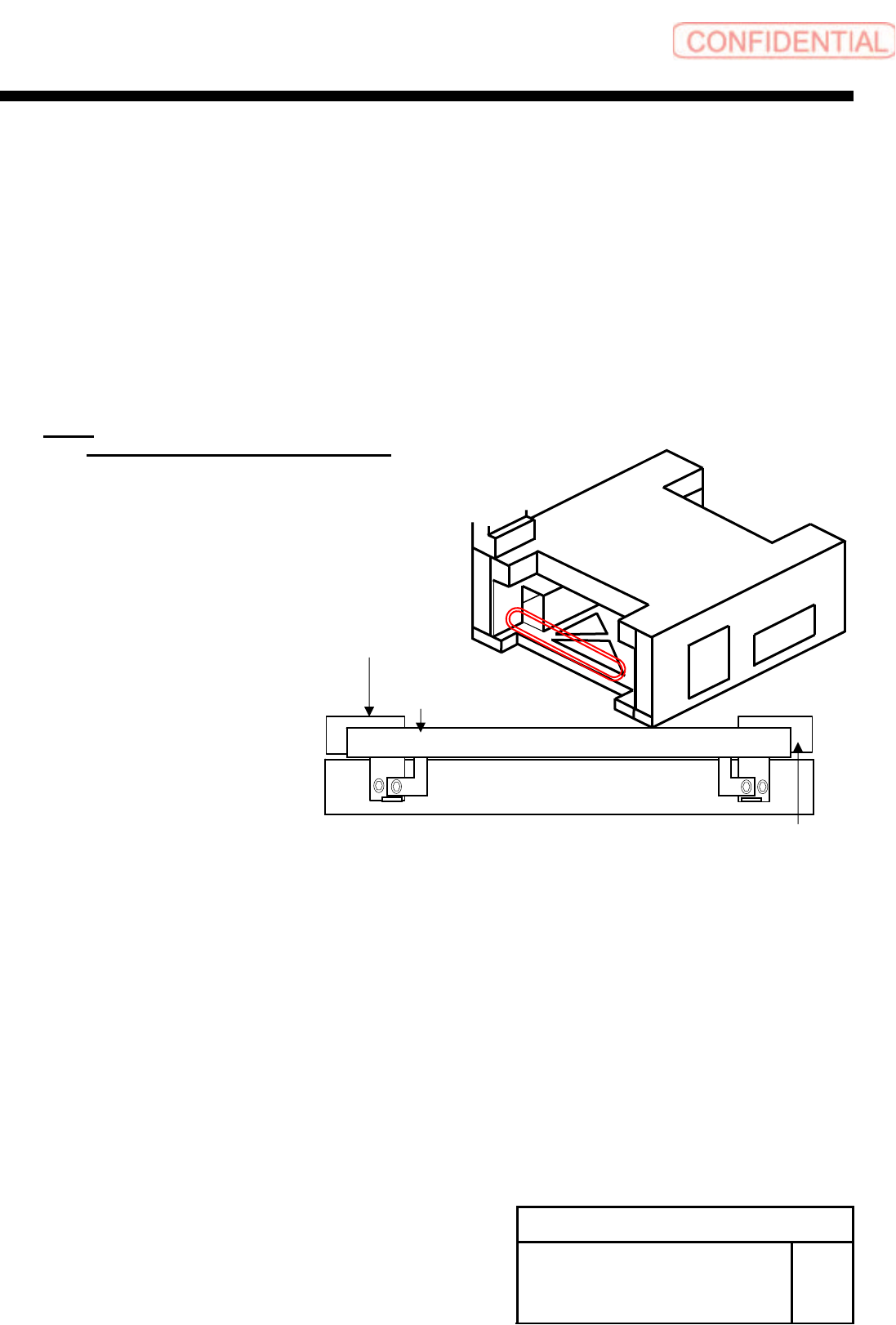

[Removal of under cover]

1 Remove the rear center cover and

shooter.

2 Loosen the 4-CP4x8 to remove the

under cover bracket on the rear side.

3 Loosen the CP4x8 to remove the cover

stay (R) on the rear side.

NOTE:

Use the cover installing stay (L) as it is.

Under cover bracket on rear side

Cover installing stay on the rea

side (R)

Cover installing stay (L) on rear side
