Adjustment
HLGB-10415-01
Nozzle Sensor Adjustment
SHEET
7/7
5. Remove the nozzle for production
installed on the turret No. 1.
6. Press the SET button again.
The LEDs from NEAR to FAR turn on green.
7. Set the mode set switch to RUN.
8. Check that the L/D set switch is set to
the D side.
9. Close the cover for the sensor.
OUT
SET
NORM
TEACH
RUN
ADJ
ZONE
L
D
NEAR
FAR
L/D set switch
Mode set
switch
SET button
Nozzle
Adjustment
HLGB-10416-01
Adjustment of PWB Sensor
SHEET
1/1

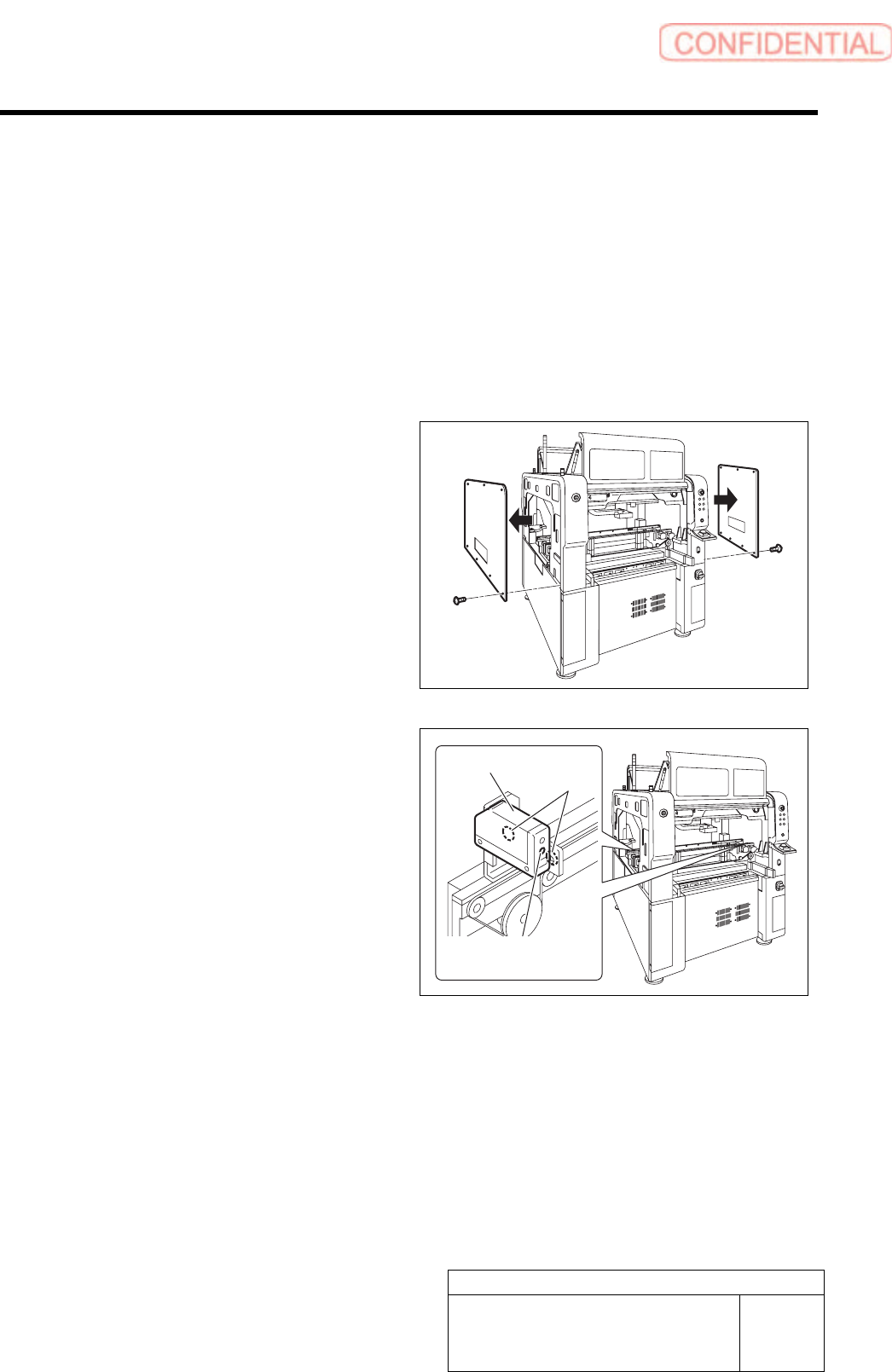

Adjustment of PWB Sensor
This section describes a procedure to adjust sensitivity and installing position of PWB detecting
sensor (BS54, BS50).
[Necessary jigs]
• Do not Use jig.
[Procedure]
1 Remove the upper side panels on both sides
of the unit.
2 Adjust the sensitivity adjustment volume of
the PWB sensors (left side: BS54, right side:
BS50) installed on both ends of the
conveyer to a position of 2/3.
3 Loosen the screw fastening the sensor, and
adjust the sensor position so that the screw
is at the center of the rectangular hole, and
then fasten the screw.
PWB senso
r
Screw
Sensitivity
adjustment volume
Adjustment
HLGB-10417-01
Adjustment of Cassette Float Sensor
Height
SHEET
1/3

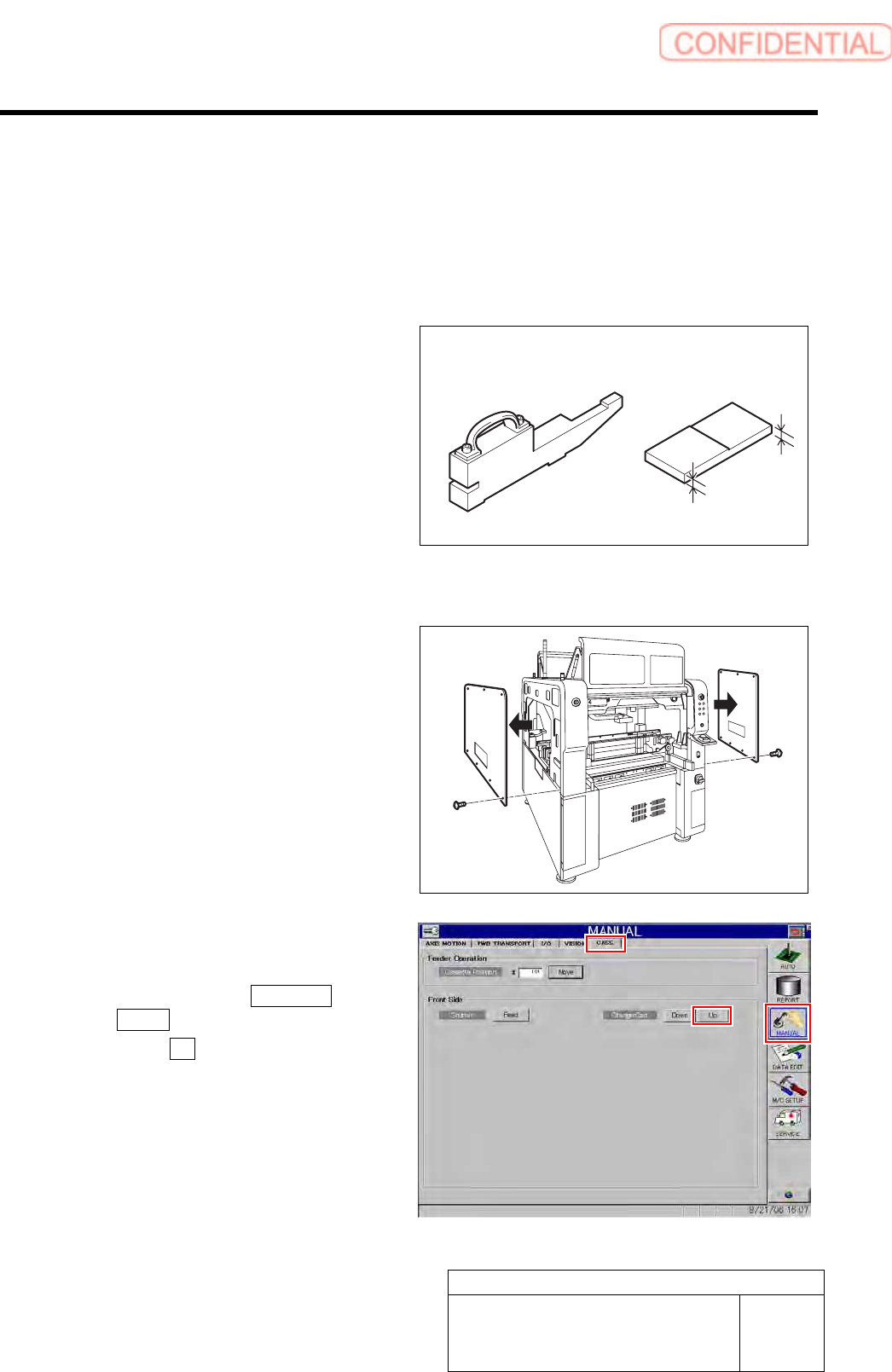

Adjustment of Cassette Float Sensor Height
This section describes a procedure to adjust the height of the cassette float sensor by using feed
adjusting jig and cassette float sensor height adjusting jig.
[Necessary jigs]
• Feed adjusting Jig
• Cassette float sensor height adjusting Jig
[Procedure]
1 Remove the upper side panels on both sides
of the unit.
2 Set the replacing carrier.
1. Set the replacing carrier on the unit.
2. Click in an order of MANUAL menu
CASS. tab.
3. Click the Up button for the replacing
carrier on the front or rear side.
4. Press the [START] button on the
operation panel.
The cassette table on the replacing carrier is
locked.
Feed adjusting jig
Cassette float sensor
height adjusting jig
6 mm
5 mm
