Setting UPS when exchanging hard disk
Setting UPS when exchanging hard disk
UPS re-setting is required when hard disk is replaced.
[Close HI]
1. Change user level to SERVICE.
Click Key mark on the left side
shoulder to show USER LEVEL
setting screen.
2. Click SERVICE radio button to fill
pass word field.
Enter pass word to click Set button.
3. X appears on the right shoulder of
the screen.
Click the X mark to close HI screen.
WKGB-10103-02
Setting UPS when exchanging
hard disk
1/14
Setting UPS when exchanging hard disk
WKGB-10103-02
Setting UPS when exchanging
hard disk
2/14
[Device driver re-installation]
This work should
be done on the machine
front and rear separately.

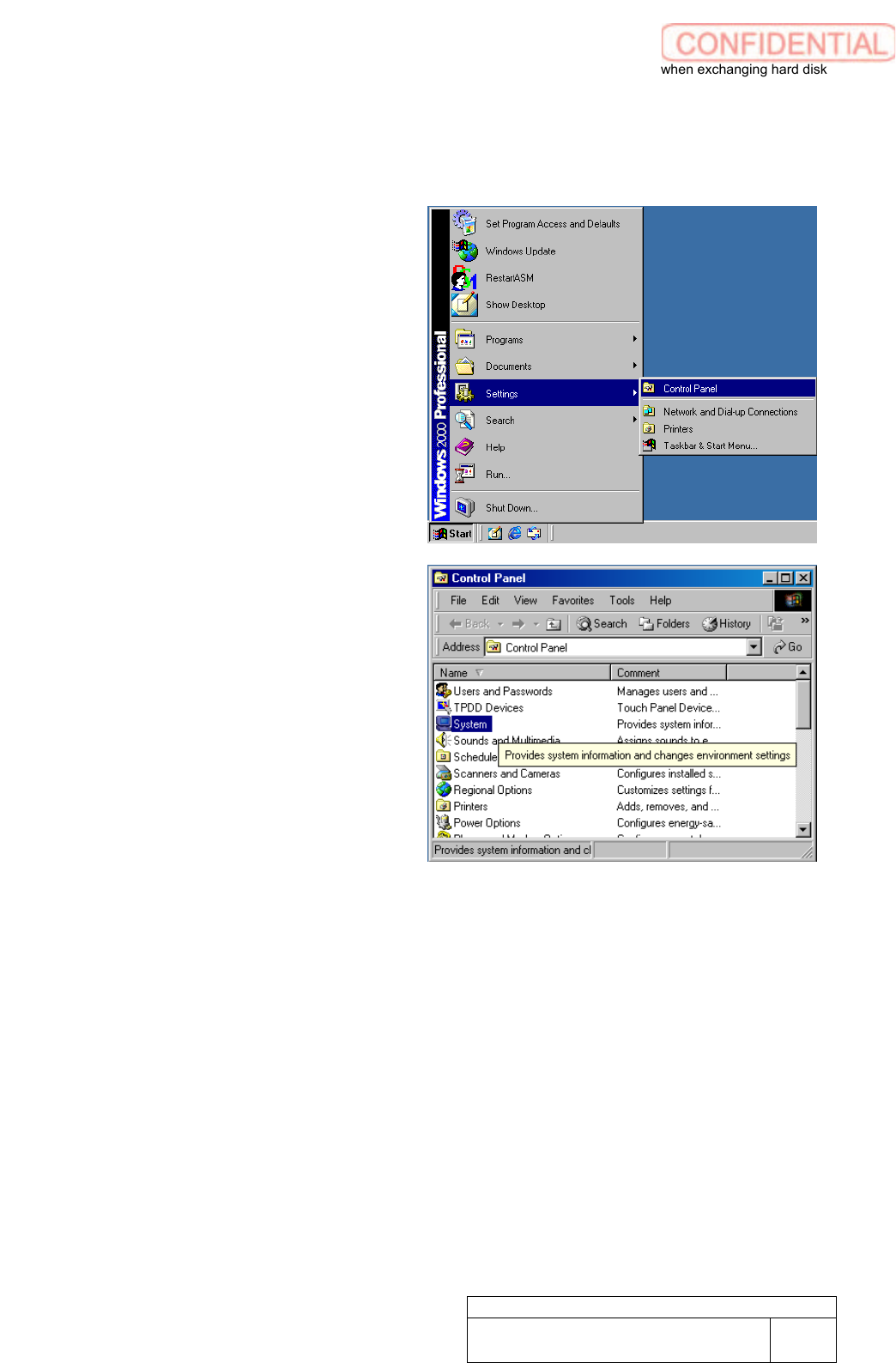

1. Open Control Panel window.
Open Control Panel window from
Windows Start Menu.
2. Make double click on the System to
show System Properties window.
Setting UPS when exchanging hard disk
WKGB-10103-02
Setting UPS when exchanging
hard disk
3/14

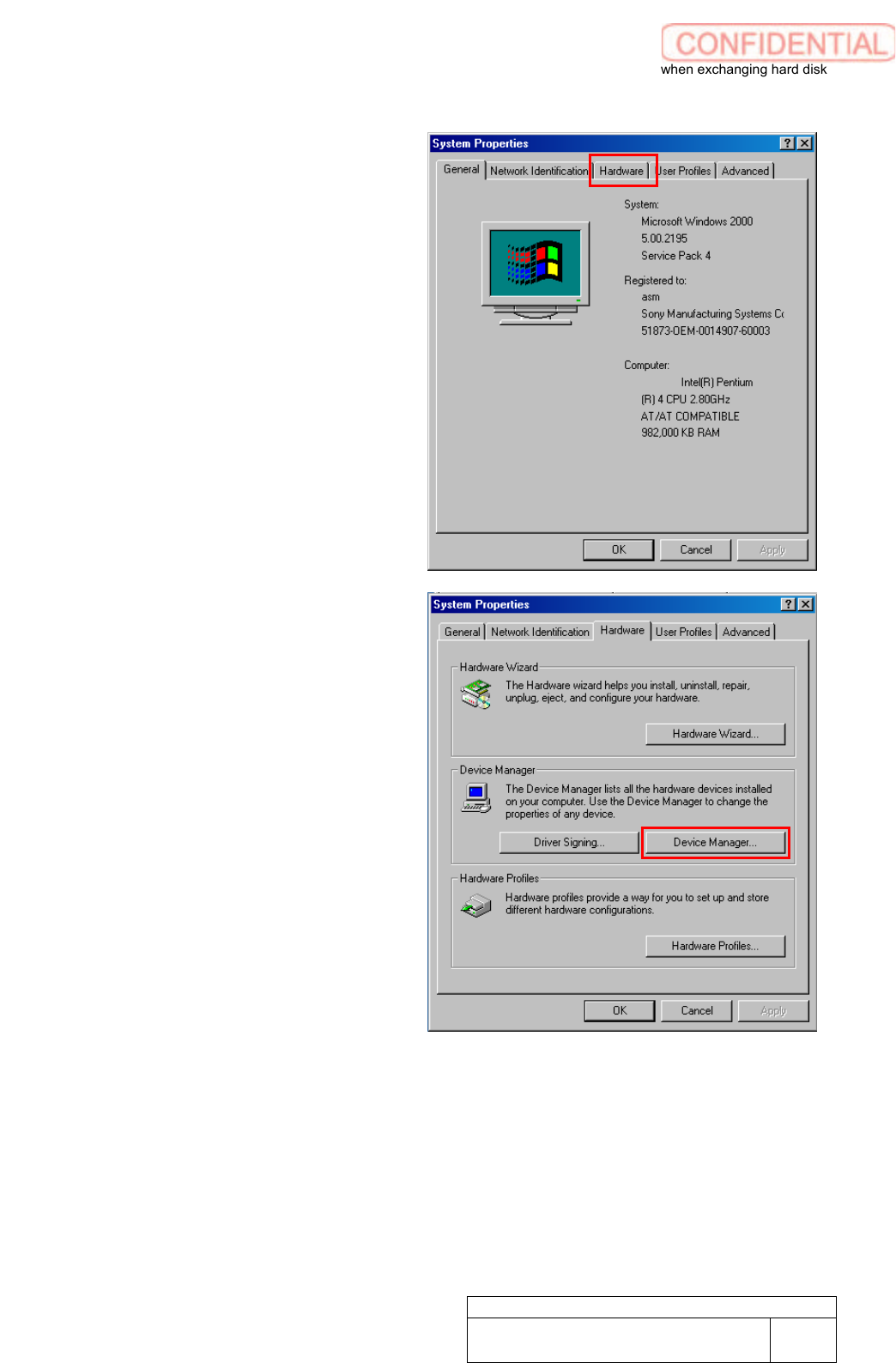

3. Click Hardware tab of System
Properties window.
4. Click Device Manager button of
System Properties window.
