XY axis movable parts
RPGB-11301-01
Change Procedure for
Y Axis
LM-GUIDE
SEET
4/9
5, JIG moves to the next position
Please repeat 3.4 works

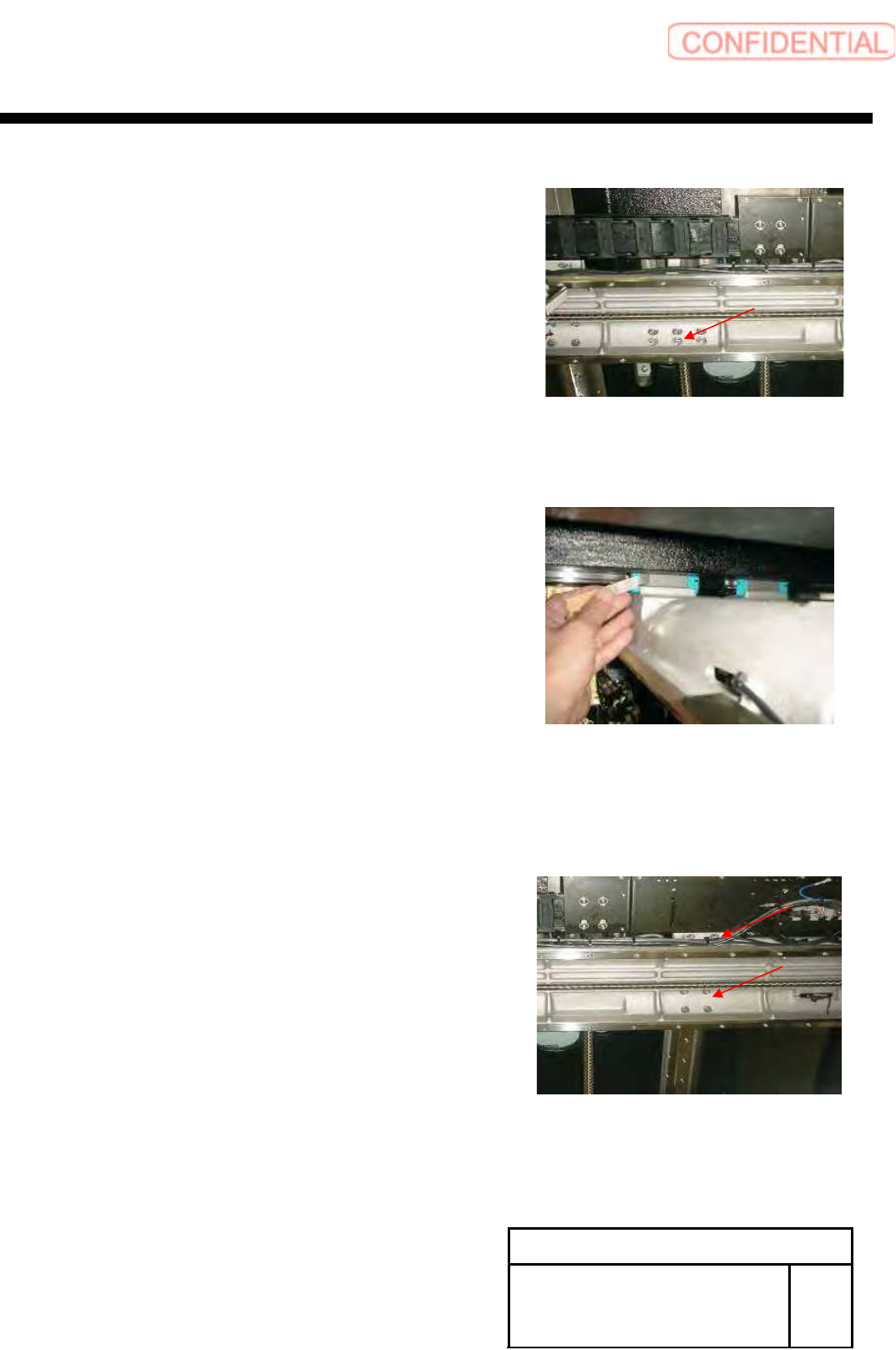

6, Confirm the gap between base level and LM-guide
POINT
Thickness gauge0.01mm do not enter
7, Cleaning of the slide block and installation surface
8, Match a slide block with the installation side of the X-axis,
Temporarily stop the screw (LM-guide of right and left)
If the exchange work of one LM guide is finished as above, change other LM guide equally.
XY axis movable parts
RPGB-11301-01
Change Procedure for
Y Axis
LM-GUIDE
SEET
5/9
9, Fixed the screw in X-axis and nut holder of
a Y-axis ball screw, loosen it
POINT
Loosen it so that a ball screw does not have tension
10, Press to slide block and installation surface of the X-axis
Then tighten it (Left side LM-guide)
Confirm the gap between base level and LM-guide
POINT
Thickness gauge0.02mm do not enter
11, Slide block and installation surface of the X-axis tighten it
(Right side LM-guide)
POINT
Confirm Motion smoothly when move
Y-axis back and forth
XY axis movable parts
RPGB-11301-01
Change Procedure for
Y Axis
LM-GUIDE
SEET
6/9
12, Confirm the position of X axis frame,
2 – 3mm from the motor side of mechanical end
Then Install ball screw of nut folder to the X-axis,
tighten it
12-1 Push a nut holder to a positioning pin
and tighten a screw at the opposite angle
12-2 Loosen a screw fixing a nut holder and the nut
of the ball screw and close it at the opposite angle again
12-3 again 12-1
12-4 again 12-2
POINT
Confirm Motion smoothly when move
Y-axis back and forth
Positioning Pin
Nut folder
