Install Tray Unit (Including machine modification) SHEET 27/73 WKGB-10104-03 Installing Tray Unit (Including machine modification) 7 Inst all a cassette floating detection sensor to the sensor bracket. 1. Install the sen…
SHEET

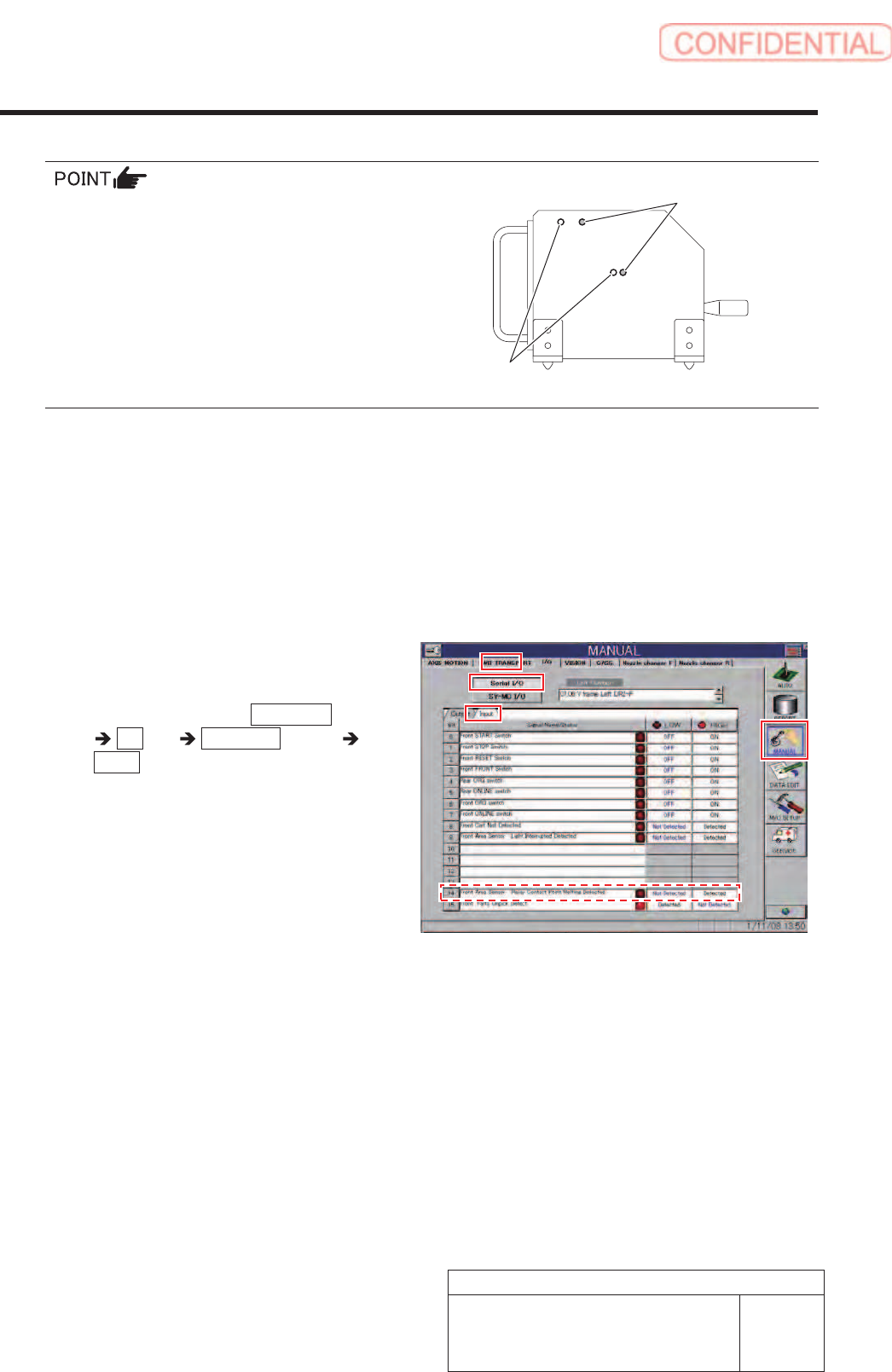

Cassette specification is different from tray
specification in jig hole to be used.
Holes on the front are for cassette specification
and holes on the back are for tray specification
with the optical axis adjustment jig being placed
on the cassette table.
5. When putting optical axis adjustment jig on
the supply No. 101, 120 and 140, check that
the sensor is turned ON.
6. When shielding the area sensor by hand,
check that the sensor is turned OFF on the
I/O monitor screen.
1 ) Remove the optical axis adjustment
jig.
2 ) Click in an order of MANUAL menu
I/O tab Serial I/O button
Input tab.
Serial I/O screen is displayed.
3 ) When shielding the area sensor by
hand, check that the sensor is turned
OFF.
For tray specification
For cassette specification
Install Tray Unit (Including machine modification)
26/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
Install Tray Unit (Including machine modification)
SHEET
27/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

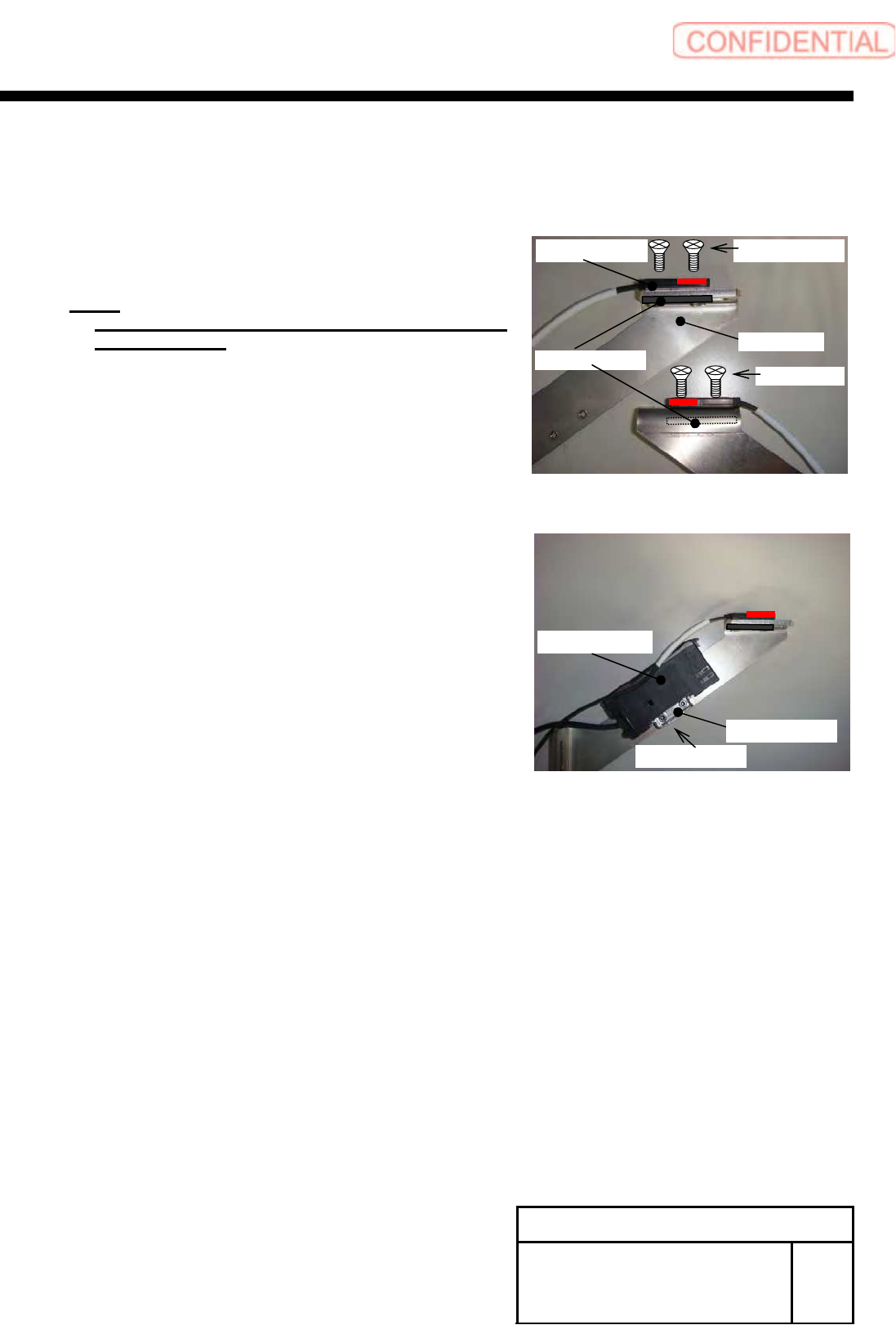

7 Install a cassette floating detection
sensor to the sensor bracket.
1. Install the sensor to the bracket with the 2-+K3x8
and plate nut.
NOTE:
Press the sensor against the sensor cable side and
temporarily fix it.
2. Install the bracket for fixing amplifier and sensor
amplifier to the sensor bracket on the right side.
2-CP3X5
Sensor amplifier
Bracket
Plate nut
2-+K3X8 Sensor
Bracket
2-+K3X8
Install Tray Unit (Including machine modification)
SHEET
28/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

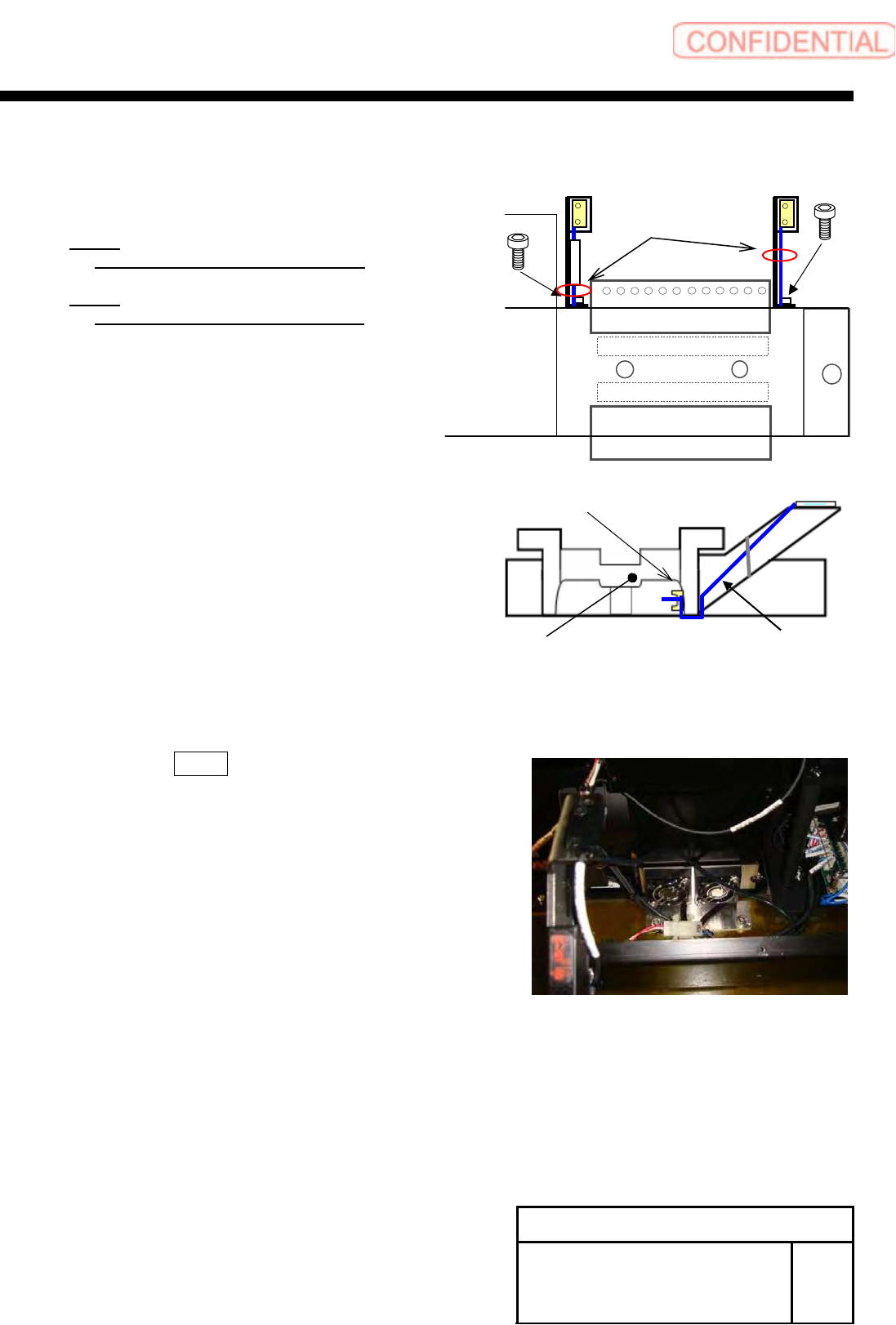

8 Install the sensor bracket to the cassette
table.
NOTE:
Temporarily fix the sensor bracket.
NOTE:
Bind the fiber line with INSULOCK.
9 Connect the sensor amplifier and the
connector 375 on the main body.
2-CP4x8
Fiber line binding
2-CP4x8
Cassette cable
Fiber line
Cassette table
Tie mount
