Operation Panel Circumferen ce LAGB-101 14-01 Operation Panel Circumfe rence SHEET 2/2 < Rear side > PB75, D1 137 REAR ON LINE SW/LAMP LCD TO UCH P ANEL PB92, D1 132 REAR RESET SW/LAMP TRACK BALL PB93, D1 133 REAR …
Operation Panel Circumference
LAGB-10114-01
Operation Panel Circumference
SHEET
1/2
Operation Panel Circumference
< Front side >
PB77, D1117
FRONT ON LINE SW/LAMP
LCD TOUCH PANEL
PB72, D1112
FRONT RESET SW/LAMP
TRACK BALL
PB73, D1113
FRONT ACTIVE SW/LAMP
PB70, D1110
FRONT START SW/LAMP
PB71, D1111
FRONT STOP SW/LAMP
PB76, D1116
FRONT ORIGIN SW/LAMP
SW10
EMERGENCY SWITCH
Operation Panel Circumference
LAGB-10114-01
Operation Panel Circumference
SHEET
2/2

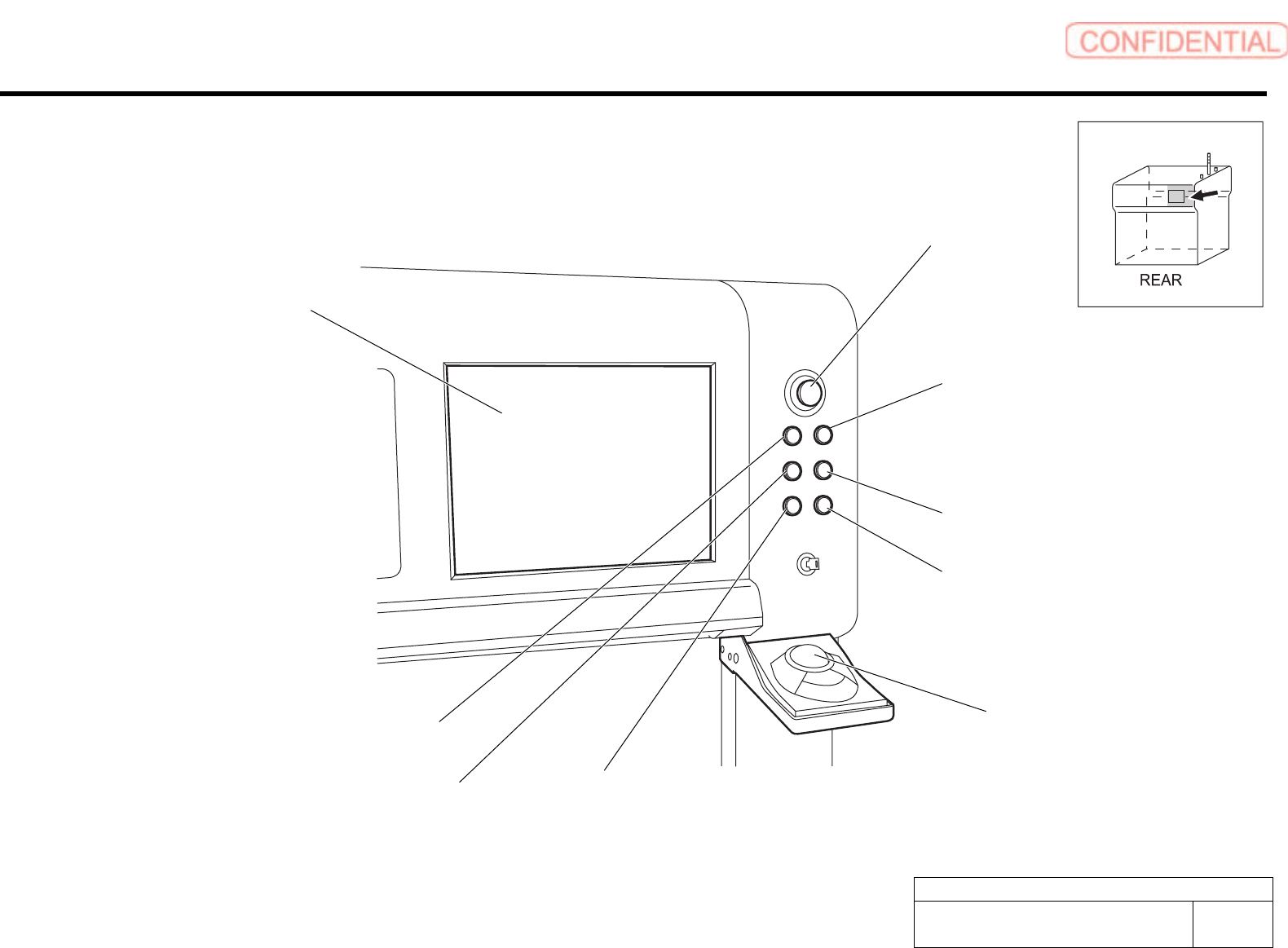

< Rear side >
PB75, D1137
REAR ON LINE SW/LAMP
LCD TOUCH PANEL
PB92, D1132
REAR RESET SW/LAMP
TRACK BALL
PB93, D1133
REAR ACTIVE SW/LAMP
PB90, D1130
REAR START SW/LAMP
PB91, D1131
REAR STOP SW/LAMP
PB74, D1136
REAR ORIGIN SW/LAMP
SW13
EMERGENCY SWITCH
Machine Top Circumference
LAGB-10115-01
Machine Top Circumference
SHEET
1/2
Machine Top Circumference
< Front side >
SIGNAL TOWER
SV1441
REAR DOOR LOCK
SV1115
FRONT DOOR LOCK
DRV-YF
SGDS-15A12A
DRV-XF
SGDS-08A12A
DRV-HF
SGDS-02A12A
REGULATOR for BLOW
SV1138
FRONT BLOW ON
DRV-RNF
SGDS-02A12A
DRV-RTF
SGDS-04A12A
DRV-FF
SGDS-02A12A
LS30
FRONT DOOR SW
IF2 LS BOARD II
DW11-F
SDIOC-OUT16
DR11-F
SDIOC-IN16-CHAT
DW2-F
SDIOC-OUT16
DR2-F
SDIOC-IN16-CHAT
A
REA SENSOR
BOARD (F)
