Install Tray Unit (Including machine modification)
SHEET
14/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

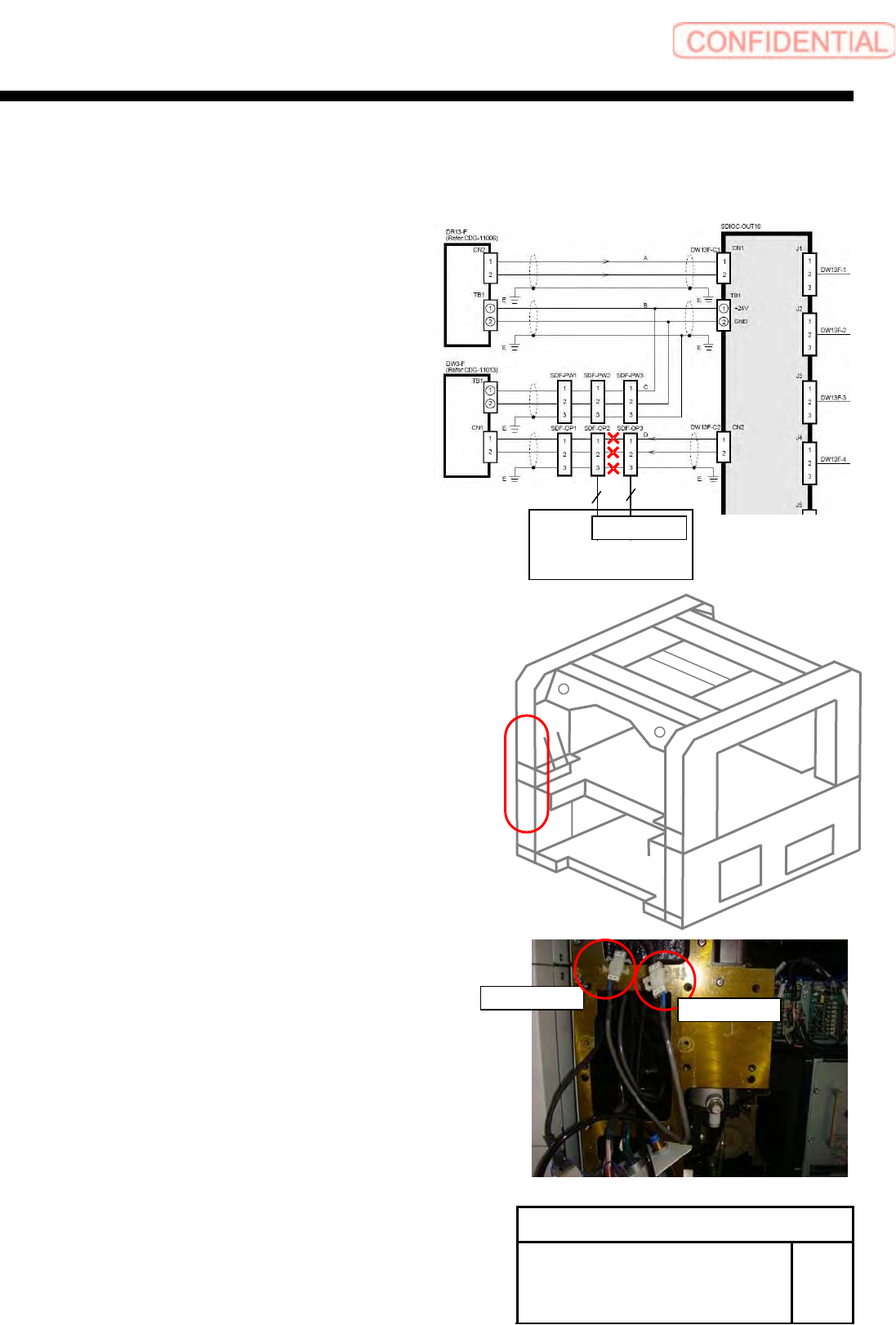

4 Connection of serial DIO connector
(OP2-OP3)
Connect the SDR-OP2, SDR-OP3 on the tray coupling I/F plate.
1. Remove the existing
cable ”SDR-OP2<=======>SDR-OP3.”
REAR
SDR-OP2
SDR-OP3
3
3
Tray coupling I/F panel
TY-CTLOUT
Install Tray Unit (Including machine modification)
SHEET
15/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

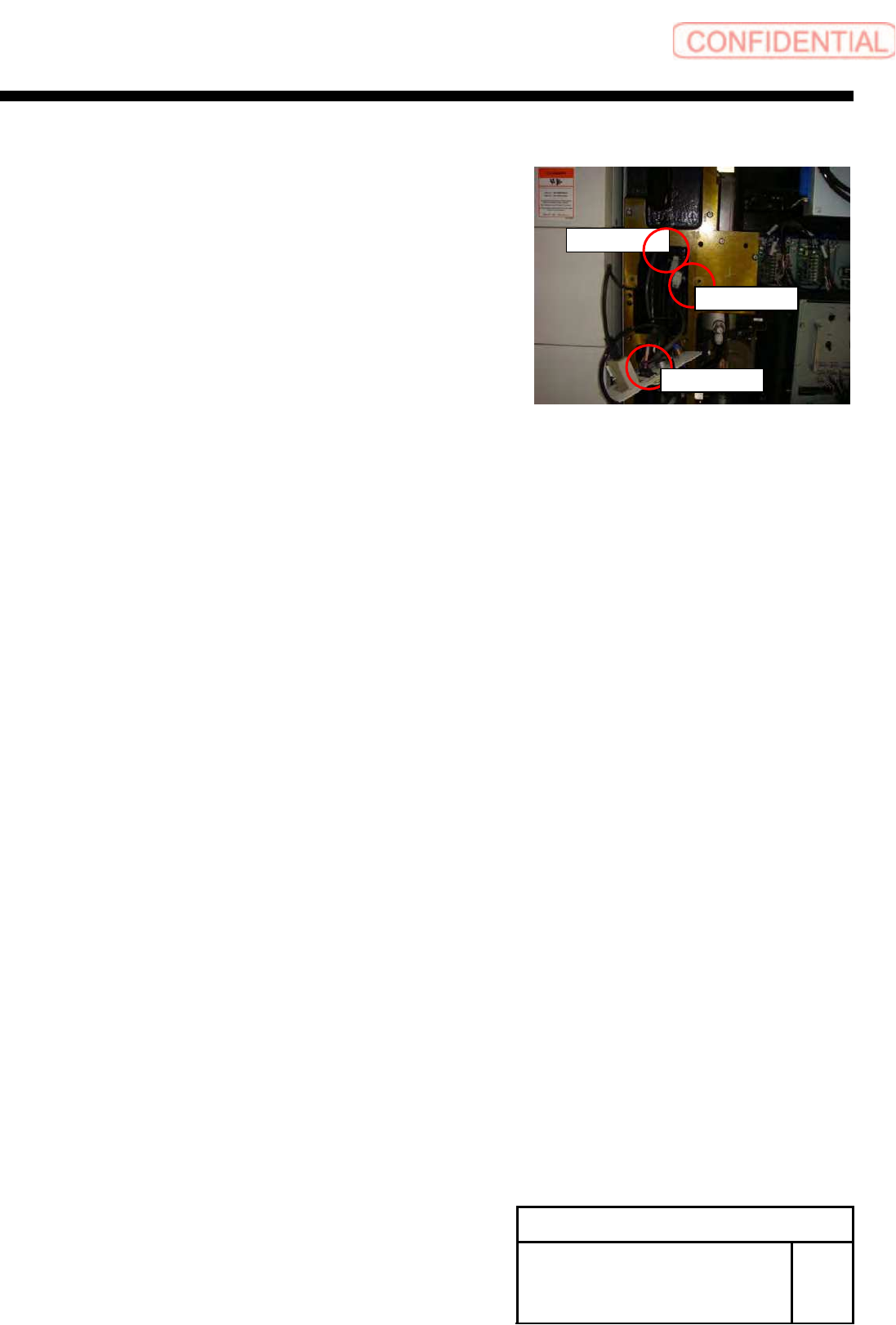

2. Connect the TY-CTROUT on the tray coupling I/F
bracket, and the SDR-OP2, SDR-OP3.
3. Fix the shoulder cover with the 2-CP5x10.
4. Fix the side sealing with the 2-CP5x10.
5. Install the packen box with the 6-+T5x6.
6. Install the top plate on the front side with the
2-CP4x45.
7. Install the top plate on the rear side with the
2-CP4x45.
SDR-OP2
SDR-OP3
TY-CTROUT
Install Tray Unit (Including machine modification)
SHEET
16/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

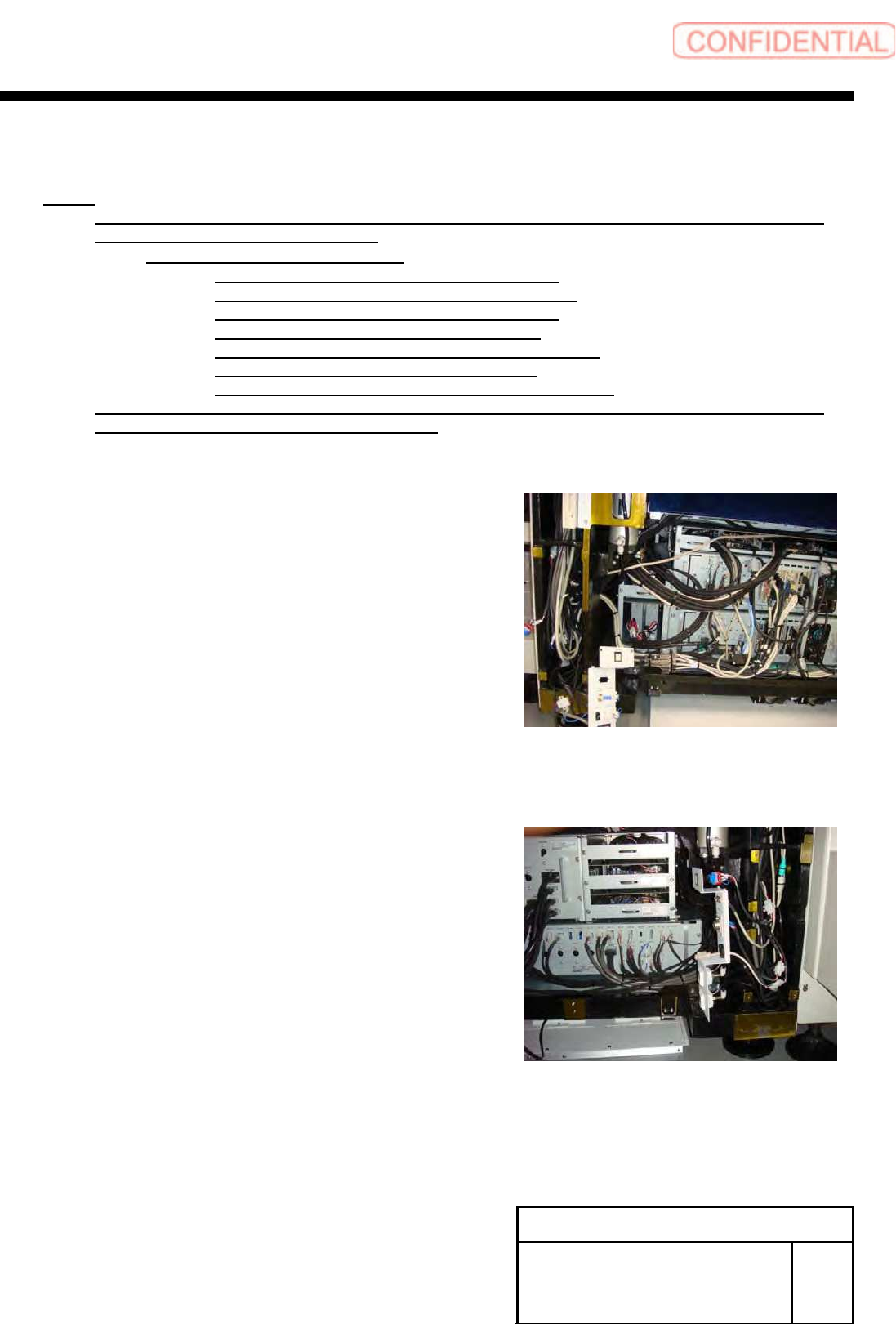

5 Install wiring of EX2 I/O cable.
NOTE:
Please arrange the following goods additionally, if you execute the modification to SI-G200
that is older than the 866th machine.
・A-1540-885-A TRAY ASSY KIT
1-834-058-11 CABLE, TRAY CONNECT 3
1-835-002-11 CABLE (JEPMC-W6002-04-E)
3-870-447-01 CAP (SC750-150), SILICON
4-708-465-01 CAP, TUBE (KQ2C06-00)
4-716-434-11 TIE, INSULOCK (AB100 BLACK)
4-761-324-31 REJUICER (KQ2R06-08)
7-632-385-50 TUBE, POLYURETHAN (TU0604B)
Please connect the cable that has already been arranged, if you execute the modification to
SI-G200 that is later than the 865th machine.
1. Remove the front center cover and left lower front
cover.
2. Remove the rear center cover and left lower rear
cover.
