1-50

AKHEMT-ID

4.3 Replacement of Fluorine Sheet and Urethane Clamp

Time of Replacement

It is recommended that they should be replaced once a year.

Replacement Procedure

(1) Zero the cutter.

Reference

Refer to "4.4 "CUTTER ADJ" Window" in "Chapter 4 (Vol. 2)" for the

zeroing operation of the cutter.

(2) Move down the feeder base and detach the bank feeder change cart.

(3) Turn off the power to the machine.

(4) Open the cover.

(5) Detach the transparent cover (origin and motor sides) and the tape

guide.

Notice

(a) Carefully detach or attach the tape guide to avoid the Y-axis

linear scale being scratched.

(b) When the cutter is not located at its origin, the tape guide

cannot be detached because the ﬂ uorine sheet is caught by the

tape clamp.

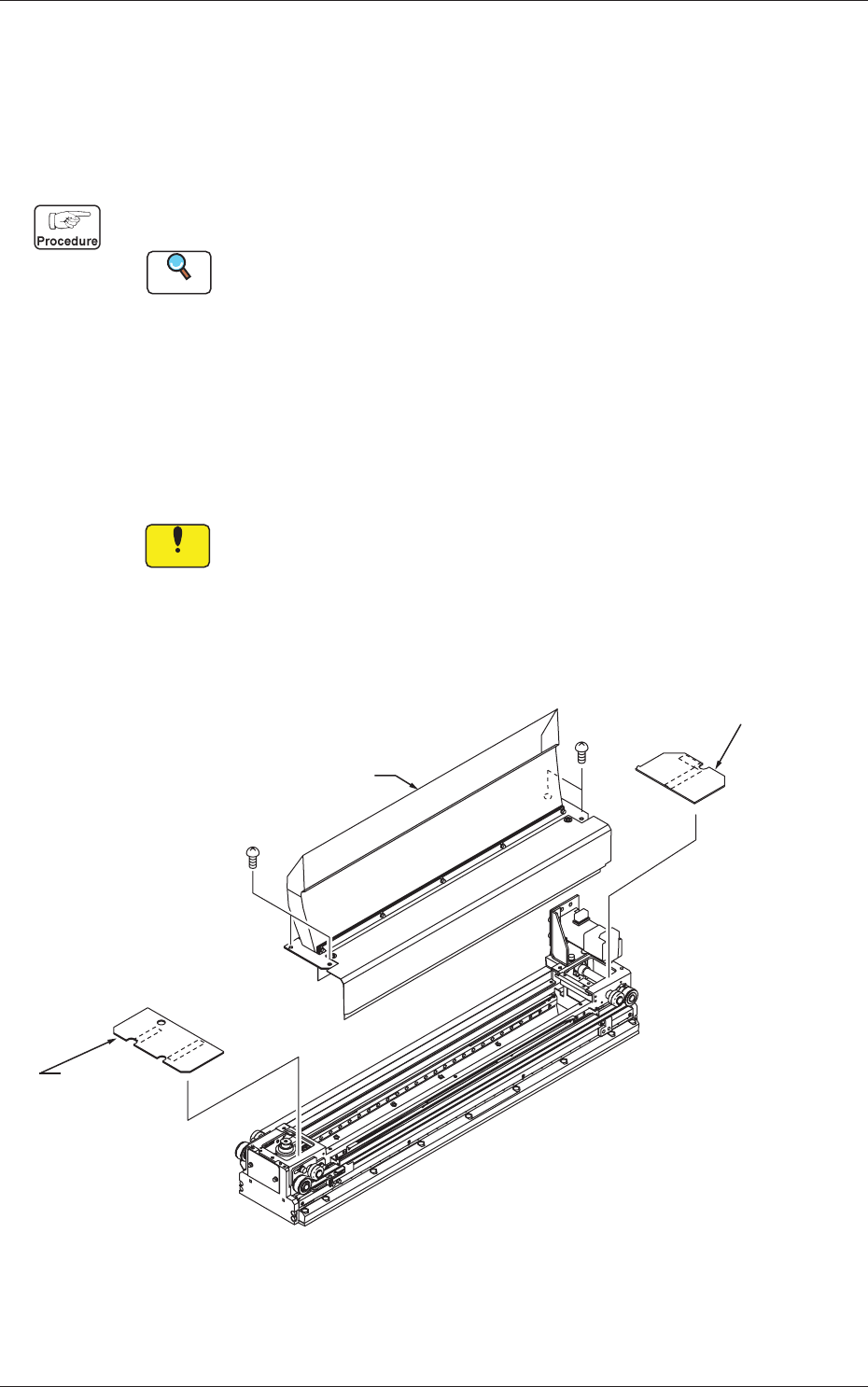

Tape Guide

Transparent Cover

(Motor Side)

Transparent Cover

(Origin Side)

Fig. 4A48

0602-001

4.3 Replacement of Fluorine Sheet and Urethane Clamp

1-51

AKHEMT-ID

(6) Attach the cut unit ﬁ xing Jig.

WARNING

Pay close attention to the cutter blade during the maintenance

work.

•

Lack of attention will result in a hand injury, etc.

•

Be sure to attach the ﬁ xing jig to the cut unit during the

maintenance work for safety purposes.

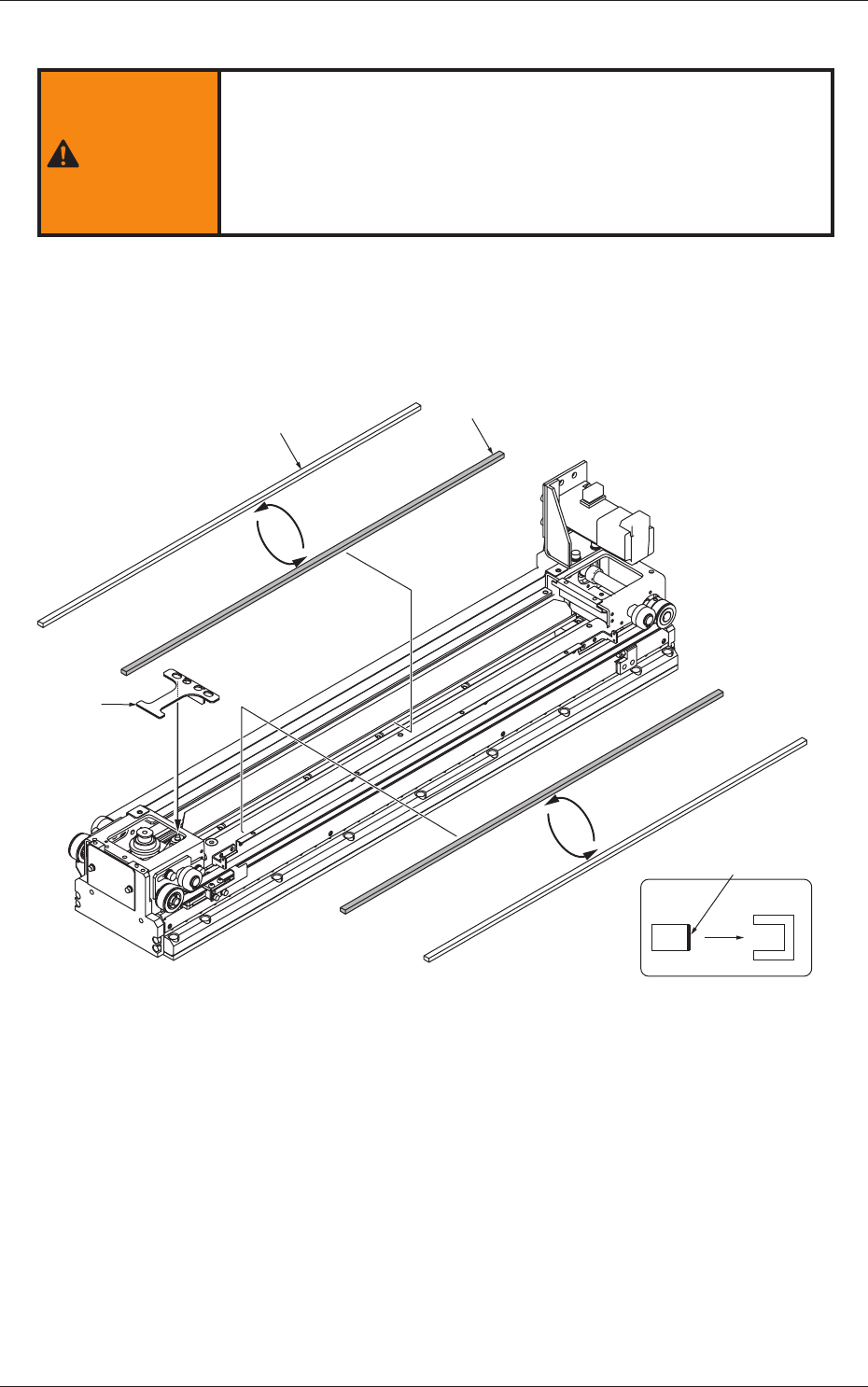

(7) Detach the urethane clamp from the tape clamp.

(8) Peel off the double-faced tape of a new urethane clamp and attach a

new urethane clamp to the tape clamp.

New Urethane Clamp

Old Urethane Clamp

Double-Faced Tape Side

View (Attachment Direction)

from Side Face

Cut Unit

Fixing Jig

Fig. 4A49

0602-001

4.3 Replacement of Fluorine Sheet and Urethane Clamp

1-52

AKHEMT-ID

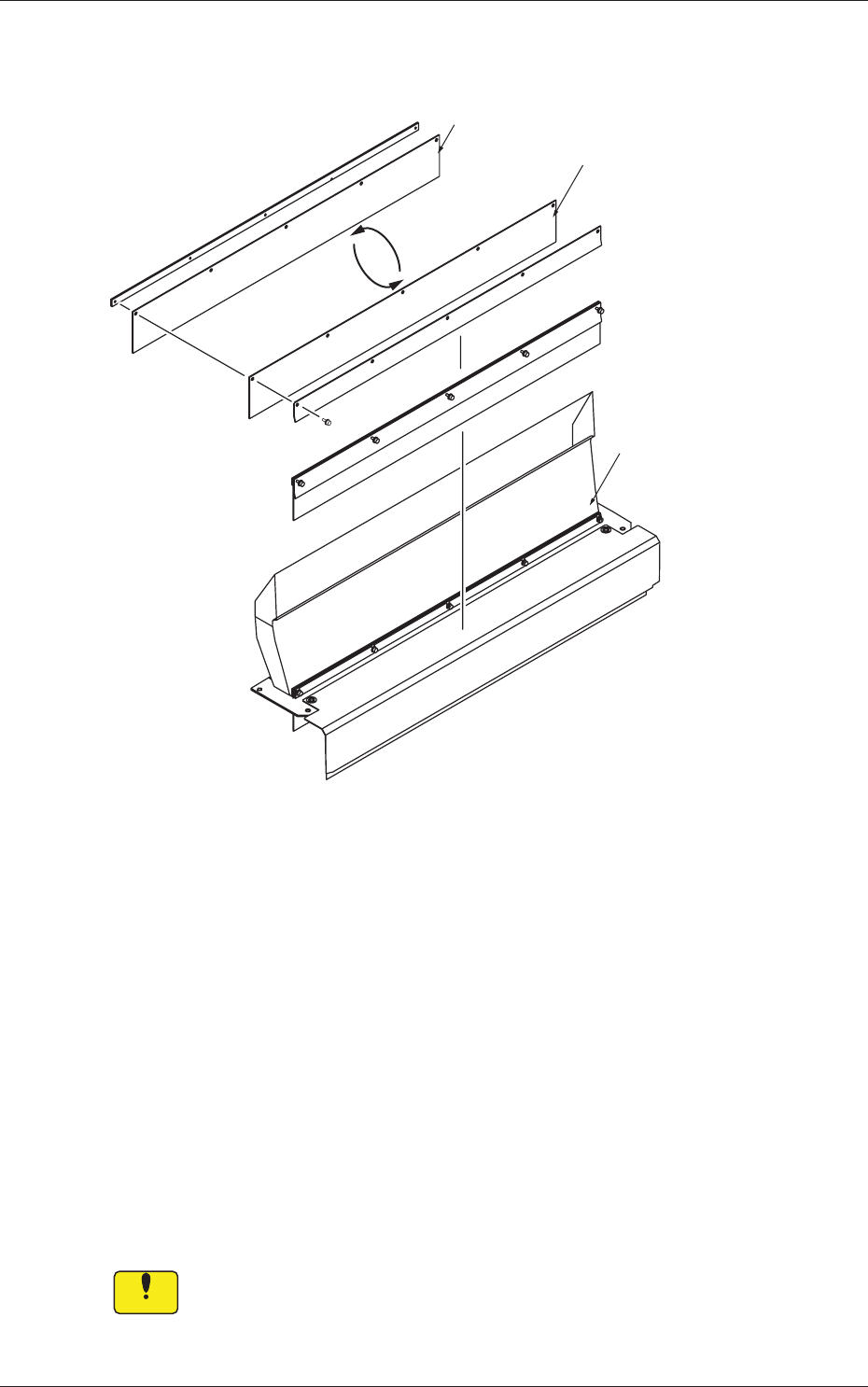

(9) Loosen the screws of tape guide and detach the ﬂ uorine sheet and

the plate. After that, replace the ﬂ uorine sheet with a new one.

Old Fluorine Sheet

New Fluorine Sheet

Tape Guide

Fig. 4A50

(10) Attach the ﬂ uorine sheet and the plate to the tape guide.

At this time, conﬁ rm that the ﬂ uorine sheet is put between the tape clamps.

(11) Detach the cut unit ﬁ xing jig.

(12) Attach the tape guide and the transparent cover.

(13) Close the cover, power the machine, and perform a zeroing

operation.

(14) Select the [Round trip] button in the "Mode" group box in the

"CUTTER ADJ" window to shuttle the cutters.

(Operation Sequence: [MAINT] on Main Menu

→

[UNIT ADJ.] on

Submenu Bar

→

"CUTTER ADJ" window)

The unrequired portions of the ﬂ uorine sheet are cut and fall down into the

scrap box of the bank feeder change cart.

Notice

Be sure to cut the unrequired portions of the ﬂ uorine sheet without the

tape being threaded through the cutters. Otherwise, the tape cannot be

cut normally.
