1-26

AKHEMT-ID

3.3.5 Feeder Cart Section

Groove on Feeder Base

Every Week Cleaning

Required Time: 2 minutes

Suck dirt and dust with a vacuum cleaner.

Upper Surface of Feeder Base

Every Day Cleaning

Required Time: 2 minutes

Remove foreign substances and unrequired

components with a vacuum cleaner and

wipe off dirt and dust with a rag.

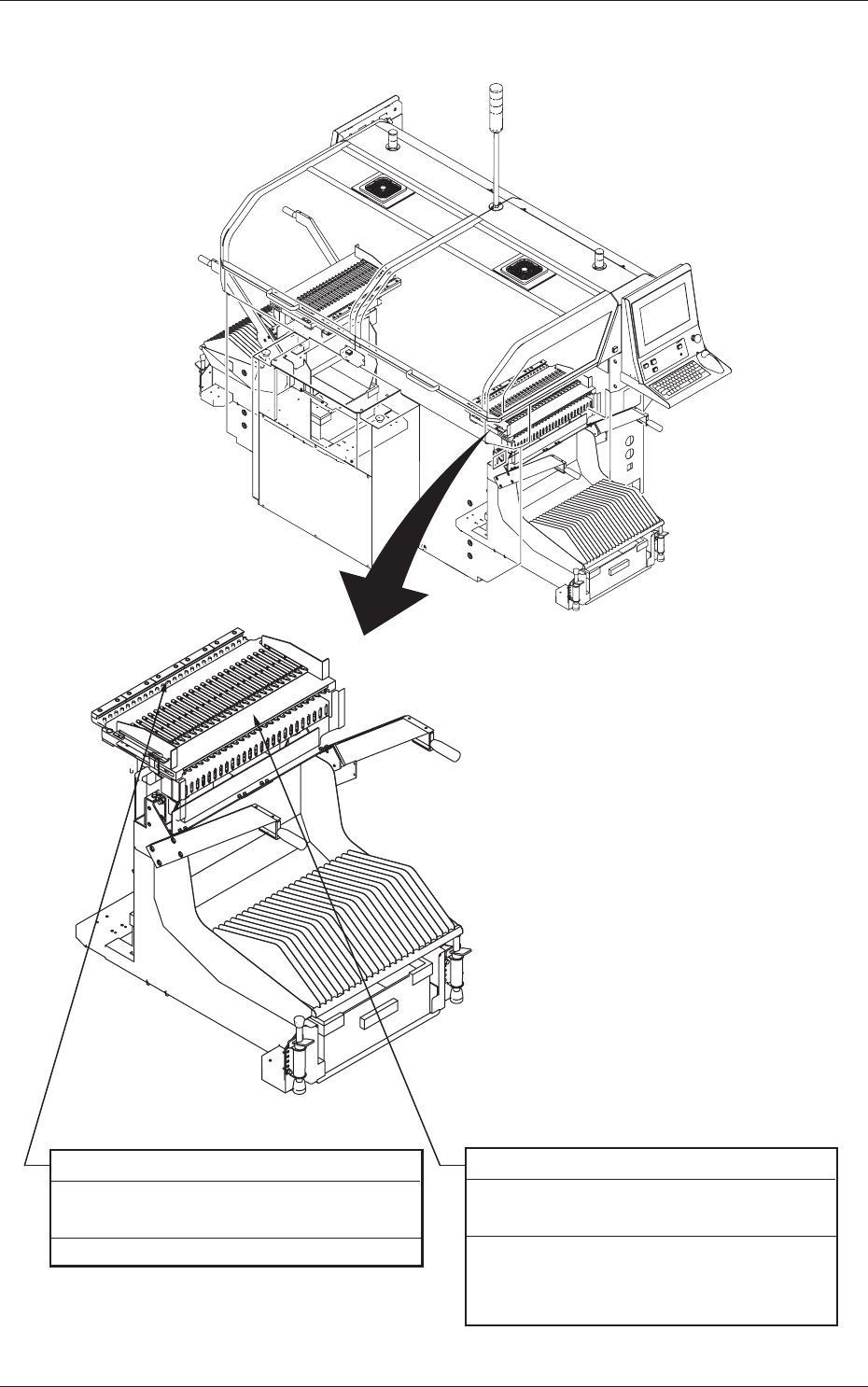

Fig. 4A17

0609-003

3.3 Inspection, Cleaning, and Lubrication Spots

1-27

AKHEMT-ID

Scrap Box

Every Day Cleaning

Required Time: 1 minute

Draw out the scrap box and remove the

empty tape.

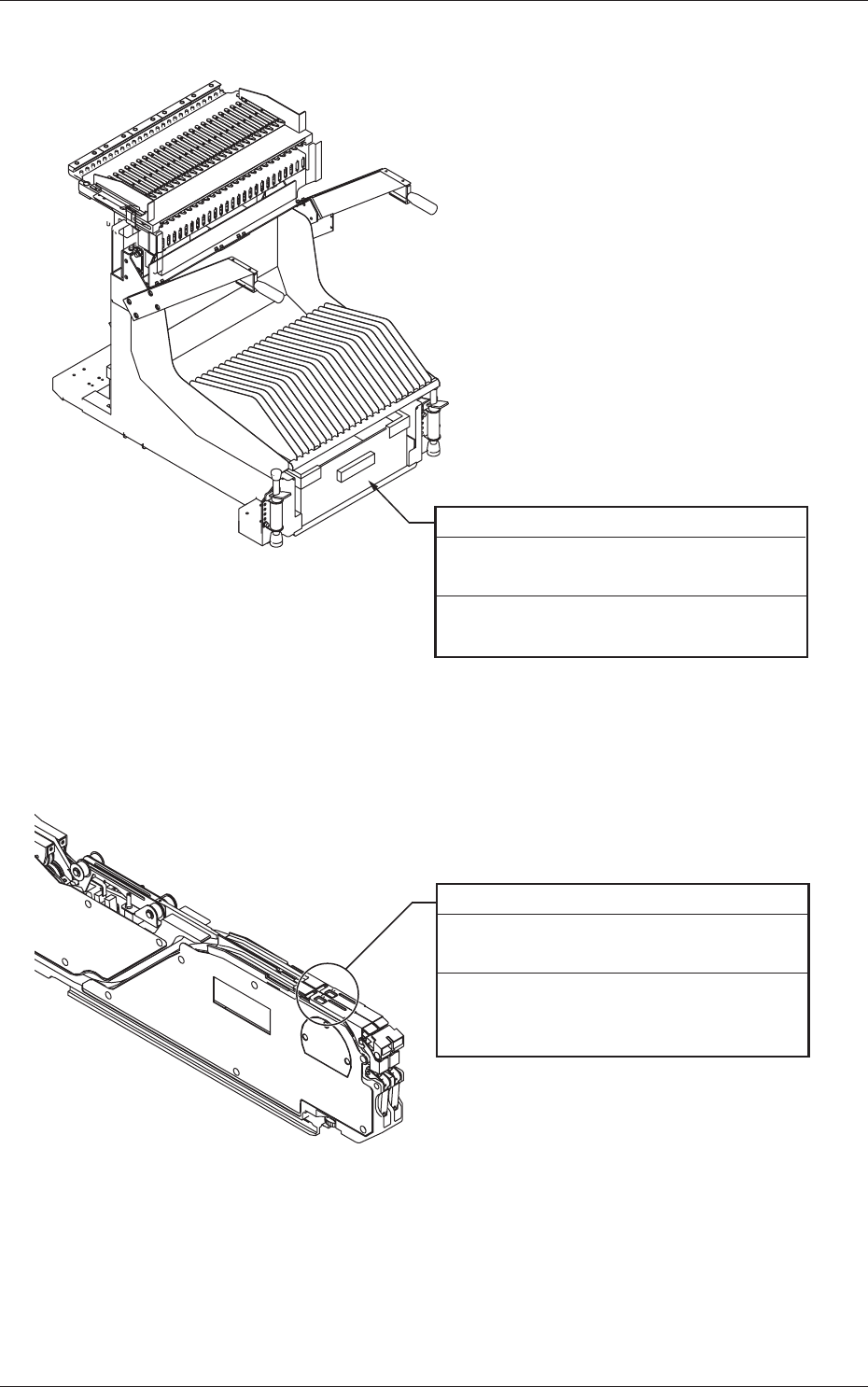

Fig. 4A18

Upper Surface of Suppressor

Every Day Cleaning

Required Time: 2 minutes

Remove dirt and dust with a vacuum

cleaner and wipe the surface clean with a

rag.

Fig. 4A18-1

0609-003

3.3 Inspection, Cleaning, and Lubrication Spots

1-28

AKHEMT-ID

3.3.6 Cutter Section

Cutter Boxes (Both Sides)

Every Week Cleaning

(1)

(2)

Detach the bank feeder change cart.

Move the cutter unit with the [Move Maint. Pos.]

button in the "CUTTER ADJ" window

(the window that opens after the [CUT ADJ]

button on the "UNIT ADJ" submenu bar is pressed).

(3) Turn off the power supply.

(4) Open the cover.

(5) Detach the transparent covers located on both

sides (origin and motor sides) of the cutter section

and remove dirt and dust with a vacuum cleaner.

Use a vacuum cleaner with a narrow air opening

in the nozzle.

Note

Narrow Air Opening in Nozzle End

(Recommended)

Transparent Cover

(Motor Side)

Required Time: 2 minutes

Transparent Cover

(Origin Side)

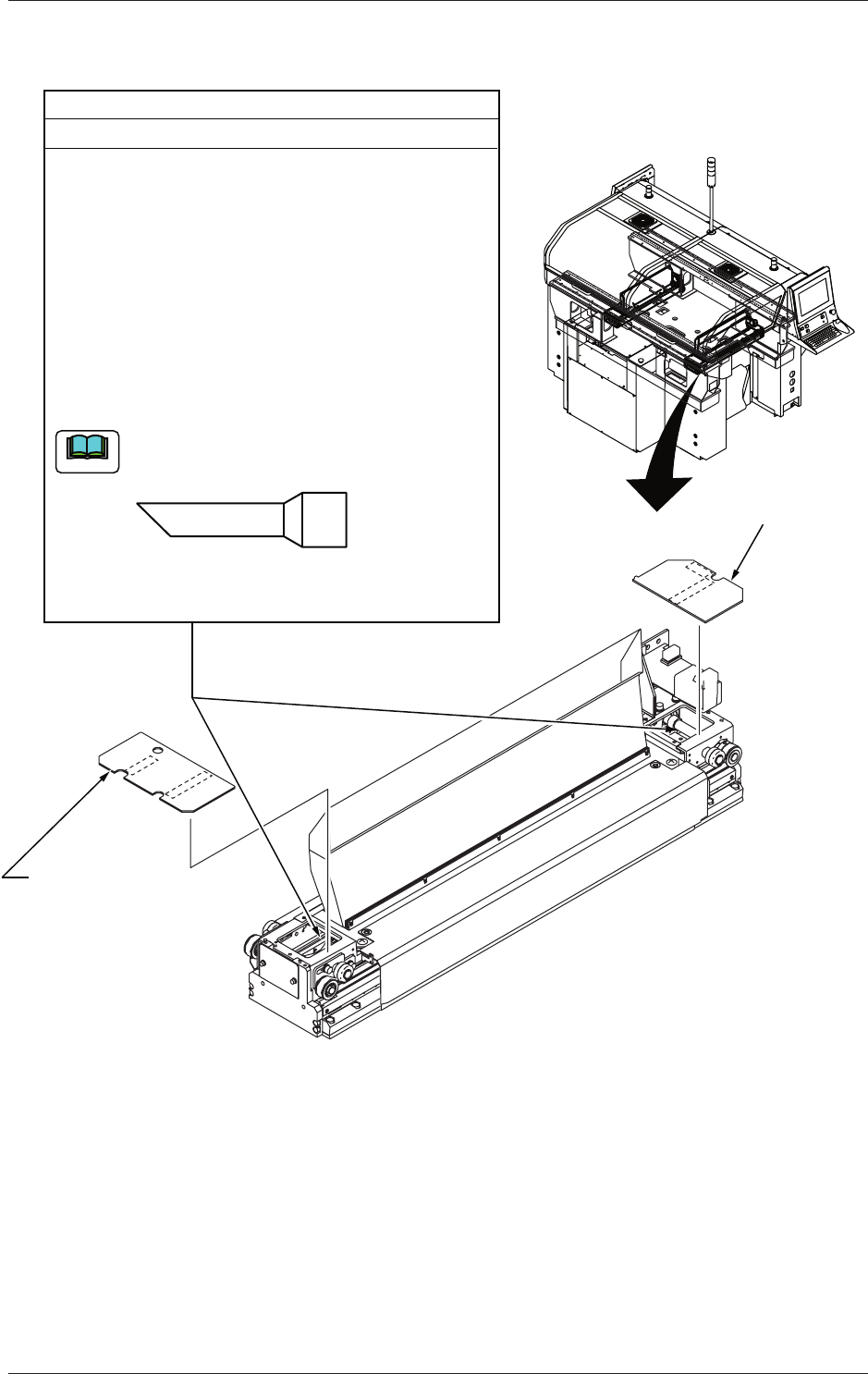

Fig. 4A19-1

0605-002
