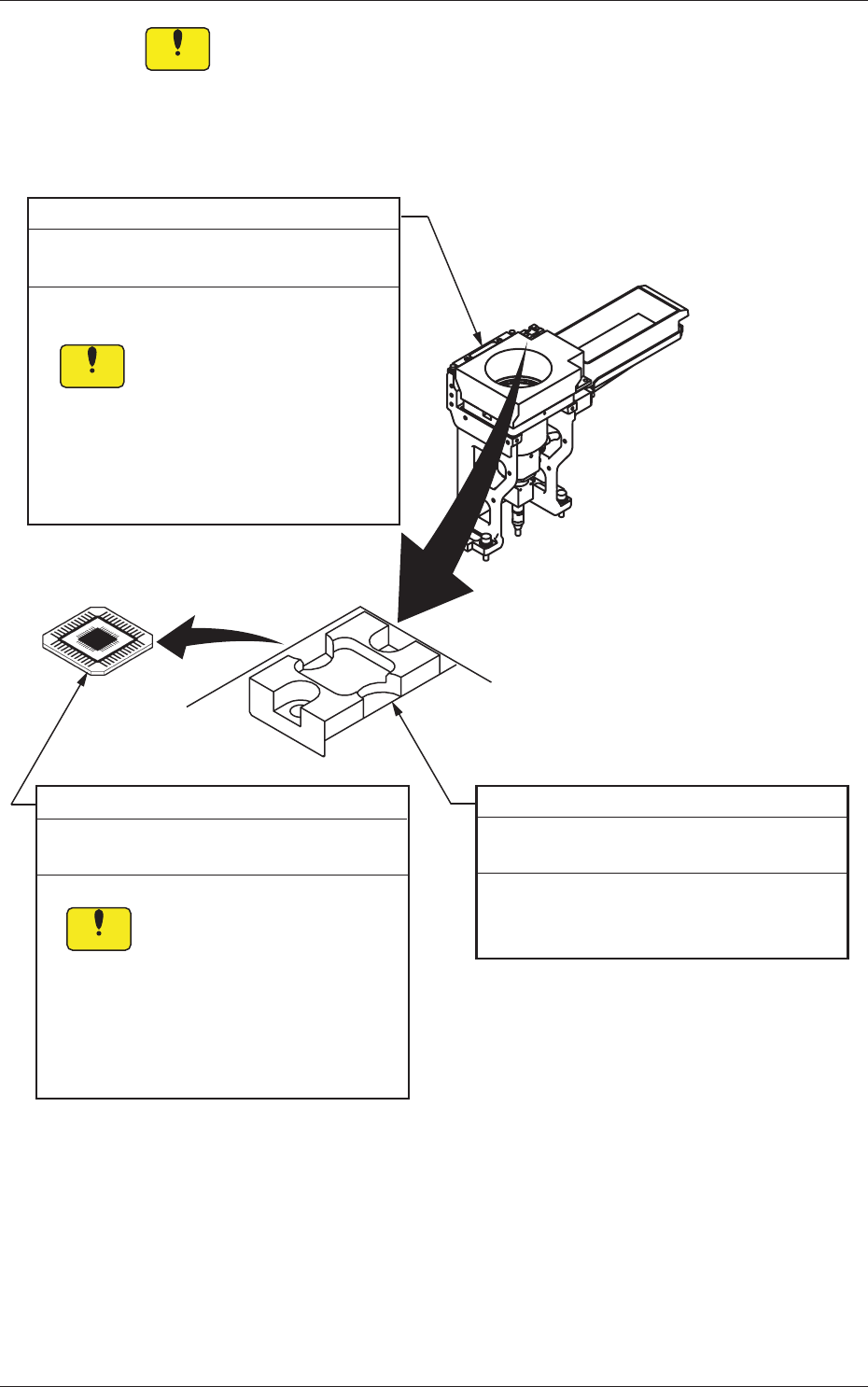

3.3.3 Component Recognition Camera Section
Notice
Be sure to use a suction force such as a vacuum cleaner for the
cleaning.
Do not blow air to any cleaning section with an air gun.
Hood
(for BGA components)
Component Recognition Camera
Every Day Cleaning
Required Time: 4 minutes
Remove the components that have fallen
with a pair of vacuum tweezers and wipe
off dust with a lens cleaning cloth.
Fig. 4A14
CAUTION
Be sure to wear gloves during cleaning. Otherwise, you may cut
your hands on the edges of the lighting hood.
Note
G-S047-01 Adhesive Cleaner (Part No: 630 133 0679) is also available
as an option.
Adhesive Cleaner
Fig. 4A14-1
0712-003
3.3 Inspection, Cleaning, and Lubrication Spots
1-23
AKHEMT-ID
CAUTION
CAUTION

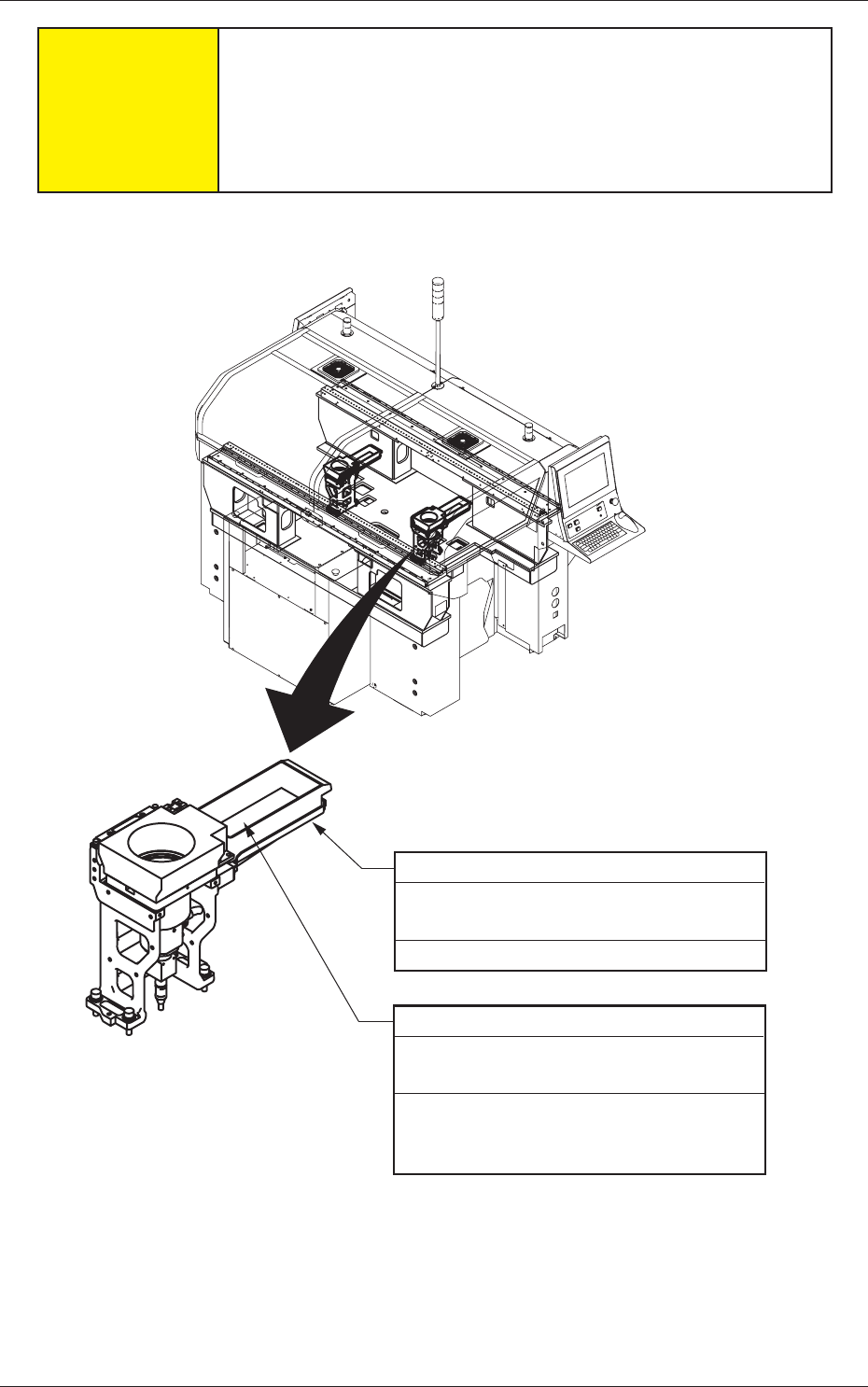

Before removing the accumulated components from the box, be
sure to connect a grounding cable (used to make a connection
to ground) to your body.
Otherwise, some component may be damaged by static
electricity.
Hanenaito (Vibration Proof Rubber)
Every Day Cleaning
Required Time: 1 minute
Take out Hanenaito from the component
storage box and clean it with a vacuum
cleaner.
Component Storage Box
Every Day Cleaning
Required Time: 1 minute
Remove components collected in the box.
Fig. 4A15
0605-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-24
AKHEMT-ID
Notice
Be sure to use a suction force such as a vacuum cleaner for the
cleaning.
Do not blow air to any cleaning section with an air gun.
When air is blown, the dirt and dust inside the machine will disperse,
causing the recognition system and the machine to malfunction.
Fiducial Marks (2 places)
Every Week Cleaning
Required Time: 1 minute
Wipe the upper surfaces of the fiducial
marks with a dry lens cleaning cloth.
Sebum (fingerprint) or oil
should not adhere to the
fiducial marks.
If sebum or oil adheres, wipe it
off with a lens cleaning cloth
which contains a small amount
of alcohol.
Notice
QFP Glass Plate Jigs (2 pcs.)
Every Month Cleaning
Required Time: 1 minute
Wipe the jigs with a dry lens cleaning cloth.
Sebum (fingerprint) or oil
should not adhere to the QFP
glass plate jigs.
If sebum or oil adheres, wipe it
off with a lens cleaning cloth
which contains a small amount
of alcohol.
Teaching Plates (2 places)
Every Month Cleaning
Required Time: 1 minute
Remove foreign substances and unrequired
components and wipe off dirt and dust with
a rag.
Notice
Fig. 4A16
0609-002
