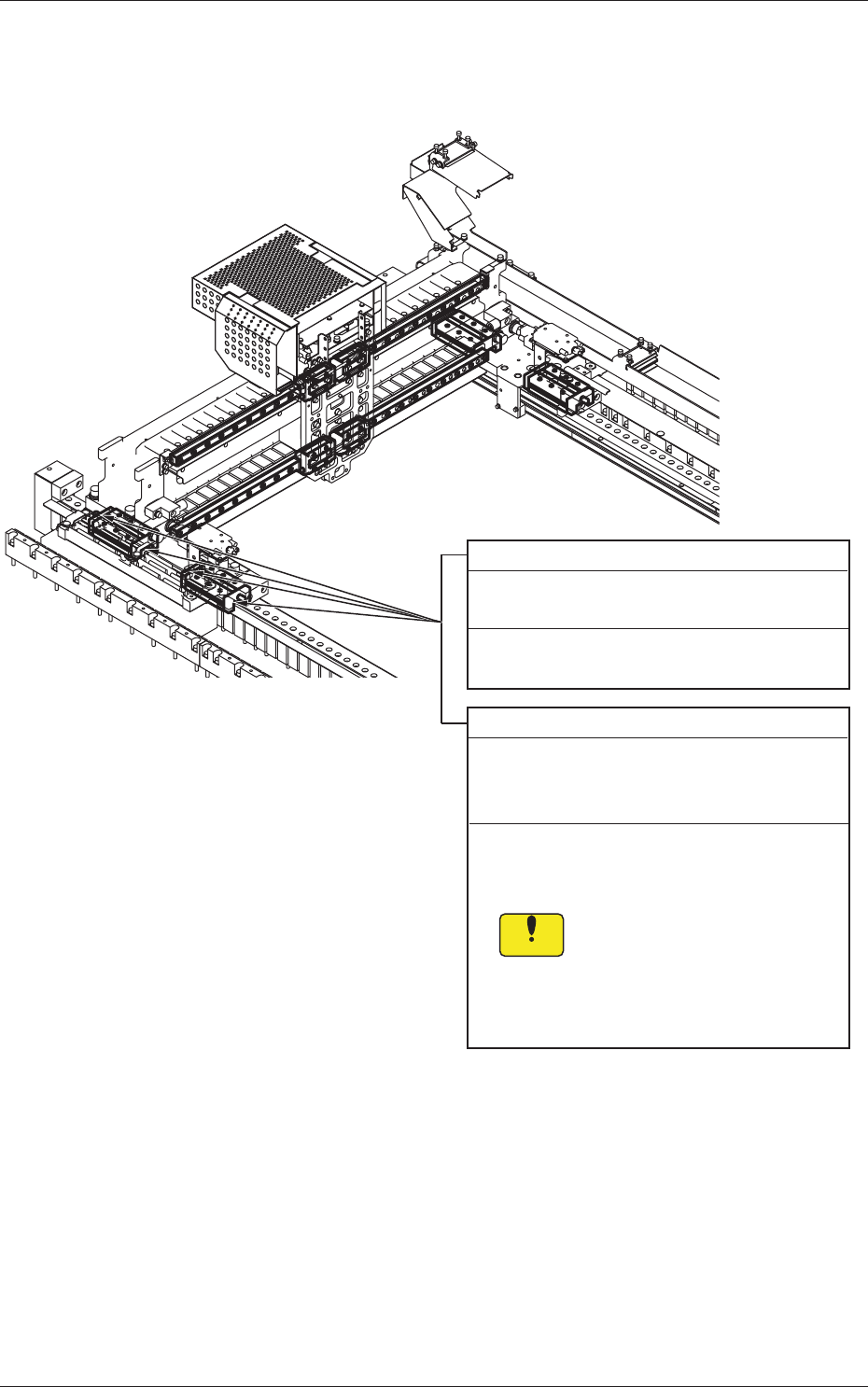

3.3.8 X/Y Beam Section
X-Axis Linear Guides (4 places)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with a rag and supply
new grease to the grease nipples with a
hand grease gun.
Take ample care not to leave
any waste threads after
cleaning.
Grease should be applied every 3 months
after the initial month.
X-Axis Linear Guides (2 places)
Every Day Inspection
Required Time: 1 minute
Check visually for any dropped foreign
substance, etc.
Notice
Fig. 4A24
0602-001
3.3 Inspection, Cleaning, and Lubrication Spots
1-36
AKHEMT-ID

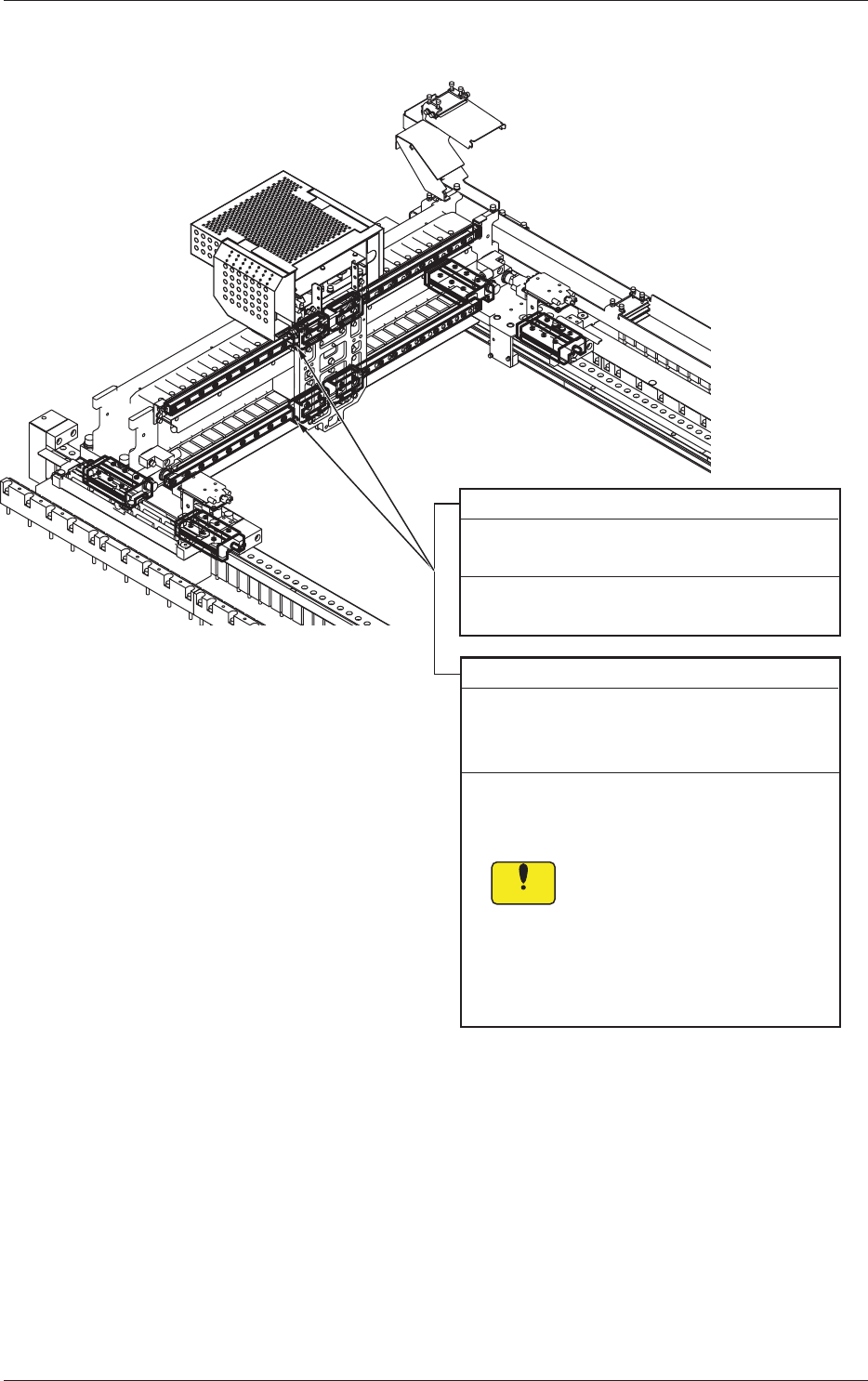

Y-Axis Linear Guides (8 places)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with a rag and supply
new grease to the grease nipples with a hand
grease gun.
Take ample care not to leave
any waste threads after
cleaning.
Grease should be applied every 3 months
after the initial month.
Y-Axis Linear Guides (2 places)
Every Day Inspection
Required Time: 1 minute
Check visually for any dropped foreign
substance, etc.
Notice
Fig. 4A25
0602-001
3.3 Inspection, Cleaning, and Lubrication Spots
1-37
AKHEMT-ID

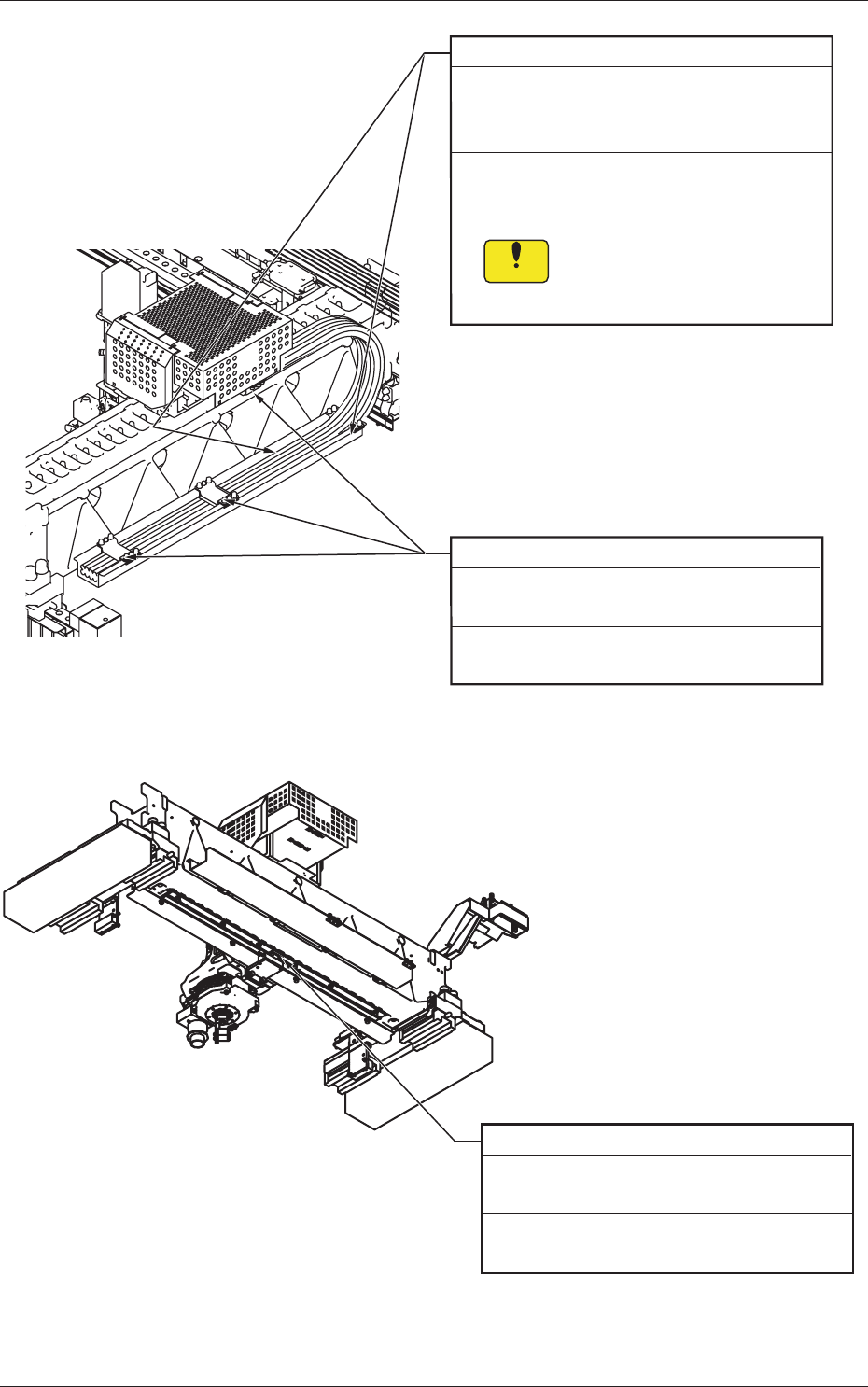

X-Axis Cable Fixing Places (3 places)
Every 6 Months Inspection
Required Time: 1 minute
Check visually for any abnormality such as
cracks.
X-Axis Cable Sidefaces
Every 6 Months Cleaning and Lubrication
(Silicon Grease KS64)
Required Time: 3 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease by hand or with a
brush.
Take ample care not to leave
any waste threads after
cleaning.
Notice
Fig. 4A26
X-Axis Linear Scale
Every 3 Months Cleaning
Required Time: 5 minutes
Clean the X-axis linear scale with a cotton
swab soaked in alcohol.
Fig. 4A27
0602-001
3.3 Inspection, Cleaning, and Lubrication Spots
