1-53

AKHEMT-ID

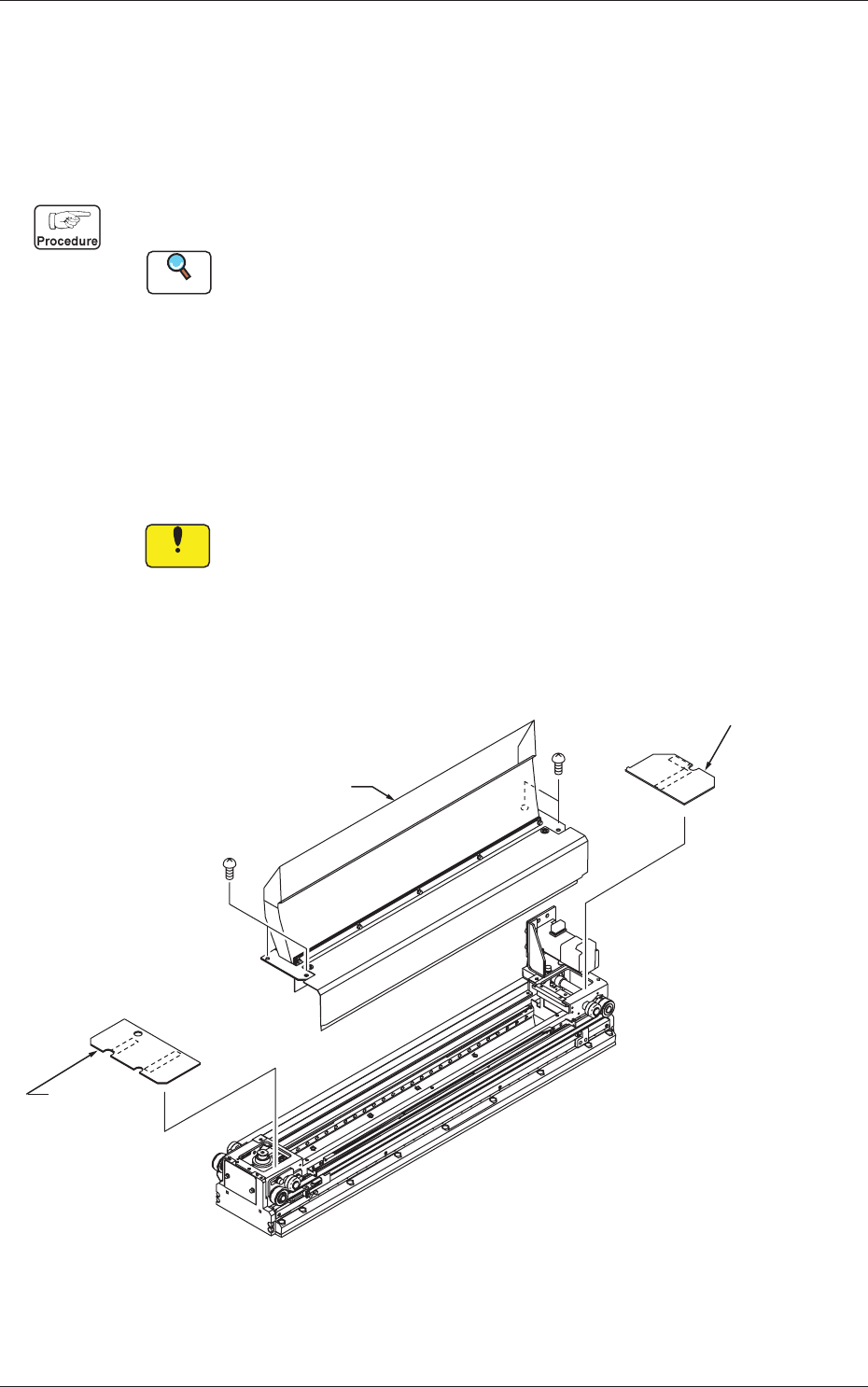

4.4 Procedure of Flat Ring Replacement

Time of Replacement

It is recommended that they should be replaced every 3 months (approx.).

Replacement Procedure

(1) Zero the cutter.

Reference

Refer to "4.4 "CUTTER ADJ" Window" in "Chapter 4 (Vol. 2)" for the

zeroing operation of the cutter.

(2) Move down the feeder base and detach the bank feeder change cart.

(3) Turn off the power to the machine.

(4) Open the cover.

(5) Detach the transparent cover (origin and motor sides) and the tape

guide.

Notice

(a) Carefully detach or attach the tape guide to avoid the Y-axis

linear scale being scratched.

(b) When the cutter is not located at its origin, the tape guide

cannot be detached because the ﬂ uorine sheet is caught by the

tape clamp.

Tape Guide

Transparent Cover

(Motor Side)

Transparent Cover

(Origin Side)

Fig. 4A51

0602-001

4.4 Procedure of Flat Ring Replacement

1-54

AKHEMT-ID

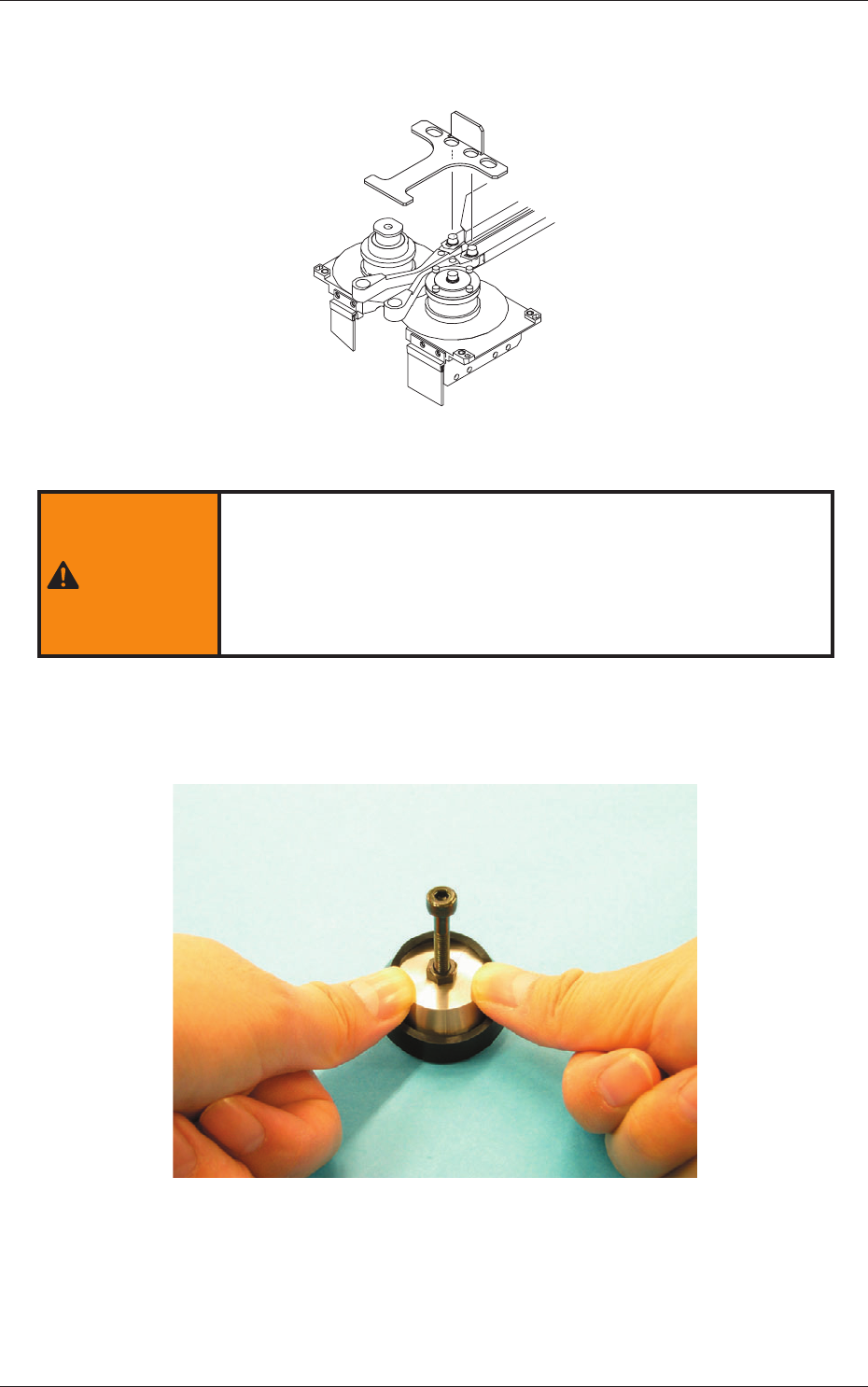

(6) Use the inner holes of the cut unit ﬁ xing jig with the tape clamp being

closed and attach the jig with the bent portion being directed upward.

Fig. 4A52

WARNING

Pay close attention to the cutter blade during the maintenance

work.

•

Lack of attention will result in a hand injury, etc.

•

Be sure to attach the ﬁ xing jig to the cut unit during the

maintenance work for safety purposes.

(7) Cut the used ﬂ at ring with a cutter on market and detach it.

(8) Attach the ﬂ at ring to the ﬂ at ring replacement jig.

Fig. 4A53

0602-001

4.4 Procedure of Flat Ring Replacement

1-55

AKHEMT-ID

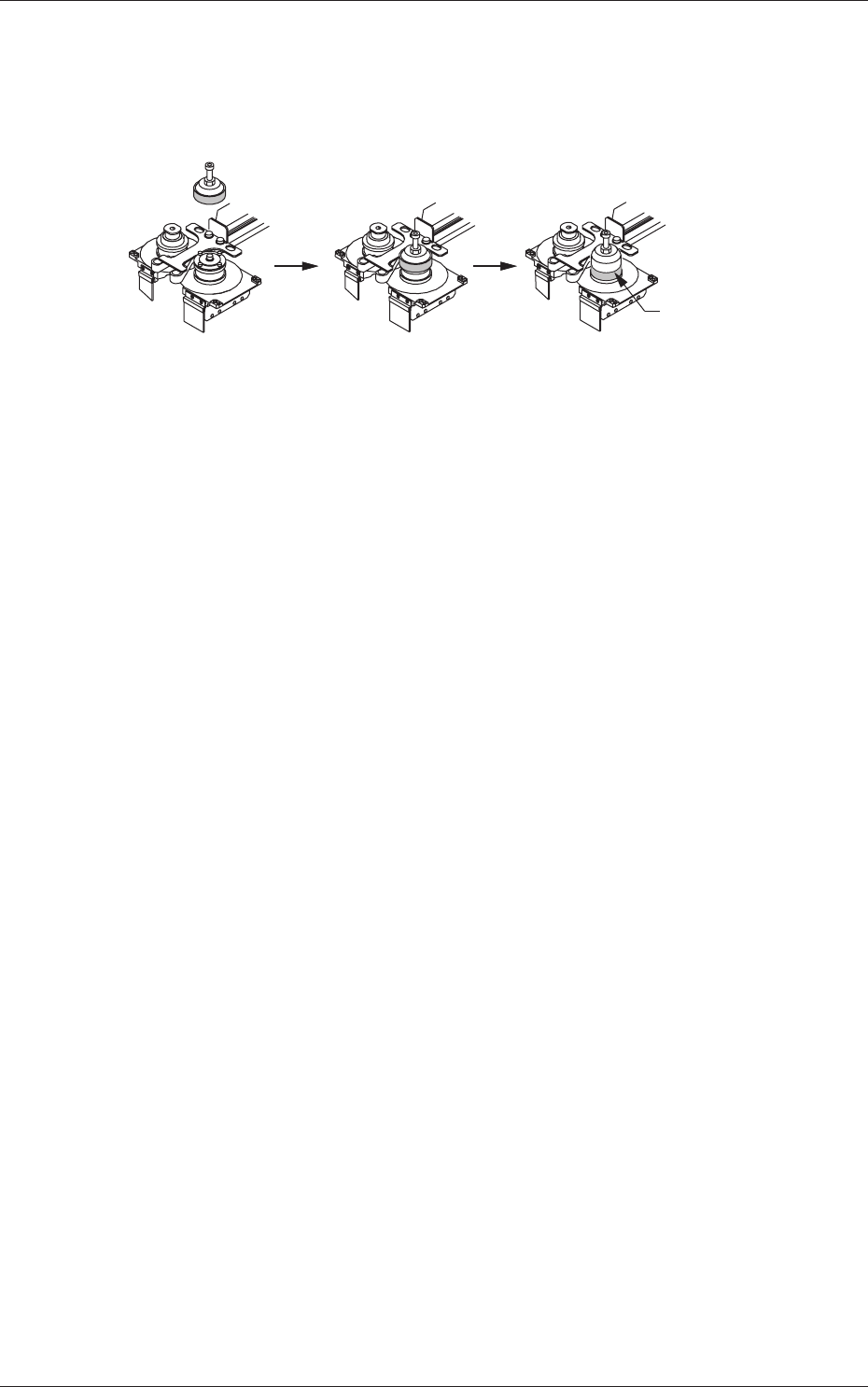

(9) Put the ﬂ at ring replacement jig on the roller on the oscillating side

(outside of the machine).

Push only the ﬂ at ring downward by hand and insert it into the groove

of the roller.

Flat Ring

Fig. 4A54

(10) Pay attention to the cutter blade and detach the ﬂ at ring replacement

jig.

(11) Attach the tape guide and the transparent cover.

0602-001
