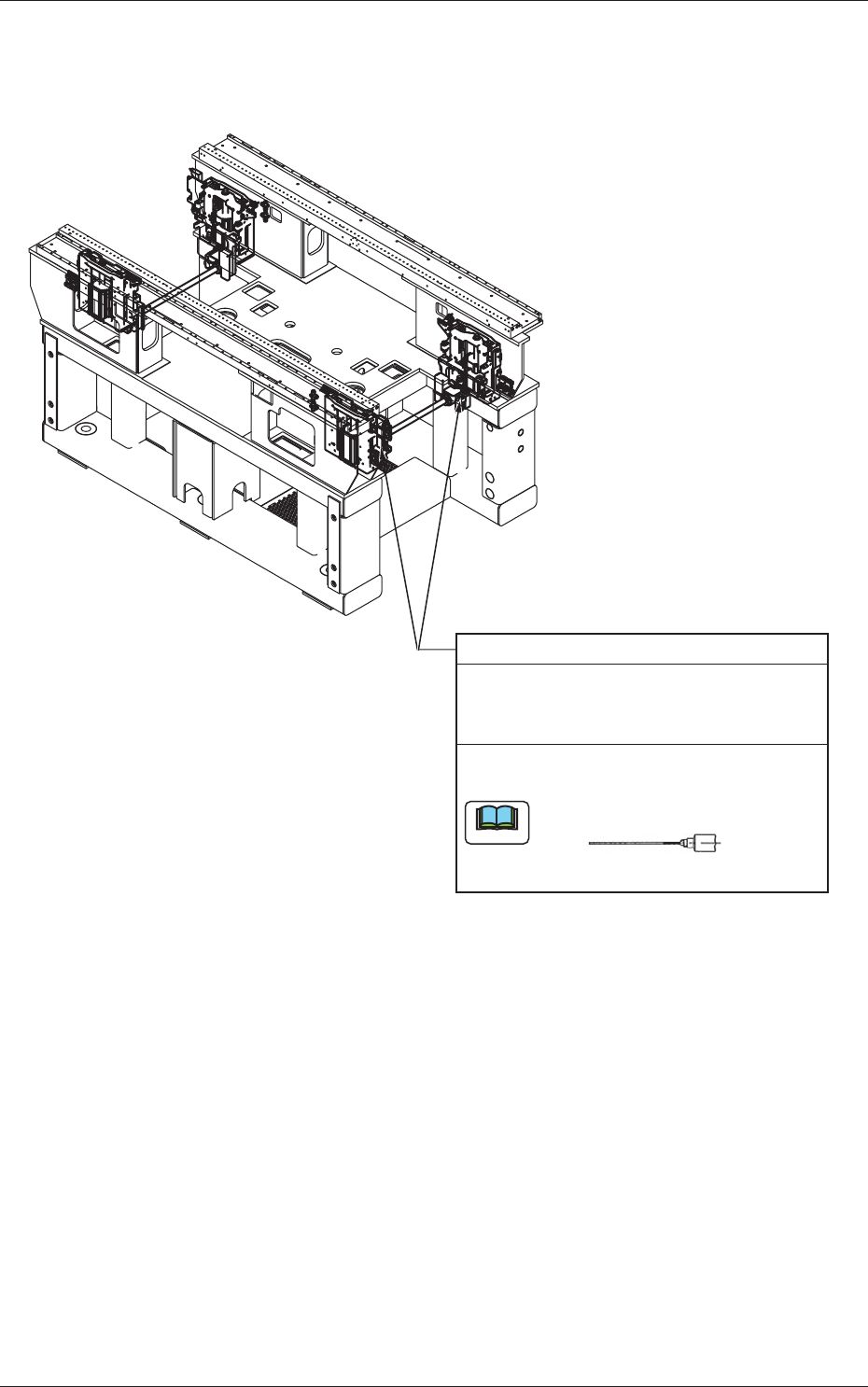

3.3.4 Feeder Base Driving Section

Worm Gears (2 places)

Every 3 Months Lubrication

(MOLYNOC GREASE AP1)

Required Time: 2 minutes

Apply a small amount of new grease to the

worm gears with a syringe.

Use No. 19 (brown) nozzle.

Note

No. 19 (brown)

Fig. 4A16-1

0605-002

3.3 Inspection, Cleaning, and Lubrication Spots

1-26

AKHEMT-ID

3.3.5 Feeder Cart Section

Groove on Feeder Base

Every Week Cleaning

Required Time: 2 minutes

Suck dirt and dust with a vacuum cleaner.

Upper Surface of Feeder Base

Every Day Cleaning

Required Time: 2 minutes

Remove foreign substances and unrequired

components with a vacuum cleaner and

wipe off dirt and dust with a rag.

Fig. 4A17

0609-003

3.3 Inspection, Cleaning, and Lubrication Spots

1-27

AKHEMT-ID

Scrap Box

Every Day Cleaning

Required Time: 1 minute

Draw out the scrap box and remove the

empty tape.

Fig. 4A18

Upper Surface of Suppressor

Every Day Cleaning

Required Time: 2 minutes

Remove dirt and dust with a vacuum

cleaner and wipe the surface clean with a

rag.

Fig. 4A18-1

0609-003

3.3 Inspection, Cleaning, and Lubrication Spots
