Speci ed lubrication tools
(1) Brush
Use a brush whose bristles do not come off if possible.
Notice
Do not use a brush for ball screws and splines.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.
(3) Hand Grease Gun
Standard : KH-120
Part No : 228A0022
Maker : Yamada Yuki
Note
Use this gun only for DAPHNE EPONEX GREASE No. 1.
Reference
Refer to the attached instruction manuals for the hand grease gun for the
usage.
Fig. 4A4
0906-002
1.2 Preparation for Maintenance
(4) Syringe
Maker: TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases: DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
1
2
3
4
5
6
7
8
9
10
12
mL
SINGLE USE ONLY
Fig. 4A5
Table 4A6
1.2 Preparation for Maintenance
Table 4A6
228A0171
216M0451
216M0453
1-7
AKHEMT-ID
(4) Syringe
Maker: TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases: DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
1
2
3
4
5
6
7
8
9
10
12
mL
SINGLE USE ONLY
Fig. 4A5
Table 4A6
0906-002
1.2 Preparation for Maintenance
1-8
AKHEMT-ID

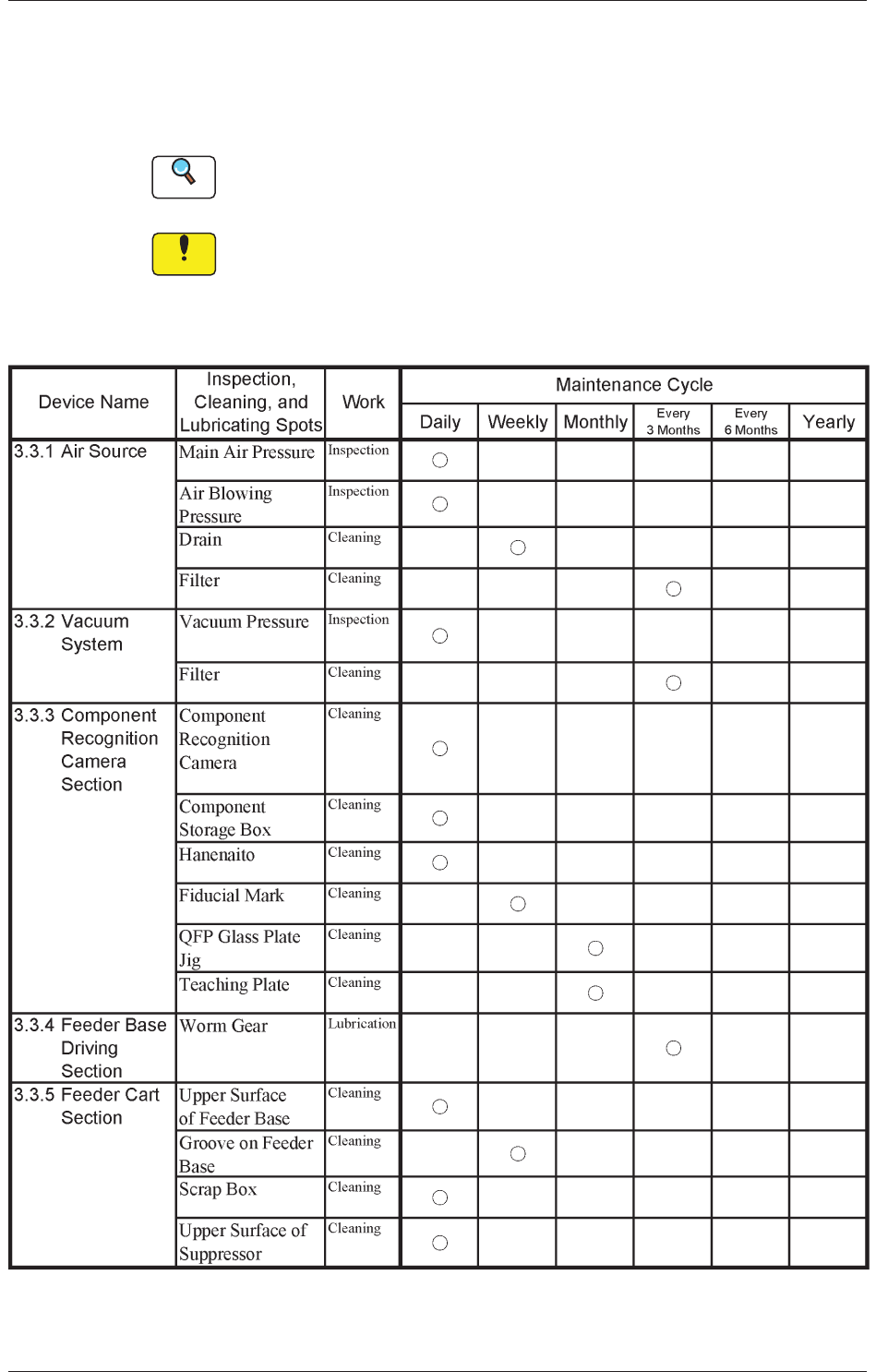

1.3 Items for Periodic Maintenance
The items (inspection, cleaning, lubrication, etc.) that require periodic
maintenance are classifi ed and described based on each individual devices.
Reference
Refer to "2. Maintenance Check List" for the maintenance based on
frequency of use.
Notice
The * -marks represent that the items require maintenance only for
the fi rst time.
Follow the
-marked maintenance cycle for the subsequent use.
Table 4A7-1
