3.5 PEC Recognition Errors
Z
A
B CC DDD
Detailed Classifi cation: Detailed Classifi cation
Small Classifi cation: Small Classifi cation
Middle Classifi cation
0: PEC Recognition (Mark Missing)
1: PEC Recognition (Coarse Recognition Error)
2: PEC Recognition (Detailed Recognition Error)
3: PEC Recognition (Shape Error)
8: PEC Recognition (Inspection Error)
E: PEC Recognition (Other Errors)
Large Classifi cation (6)
Classifi cation Criteria
Notice
When an error ID other than the described ones is issued, contact
our service personnel for some advice.
Table 4D8
Recognition Error ID Description of Recognition Error, Cause, and Remedy
0 6 0 ** 001 Specifi ed mark not found in recognizable range.
0 6 1 ** 001 Specifi ed mark not found in recognizable range.
0 6 2 ** 001 Specifi ed mark not found in recognizable range.
(Cause) The fi ducial mark and the fi ducial mark coordinates X and Y or
the mark data are not suitable.
(Remedy) Follow the steps below to reset the machine to the normal
condition.
(1) When the [RETURN] button is pressed, the "Manual Alignment
Operation Guide" window appears.
(2) When the [Mnl Align] button is pressed, the following recognition
window appears.
Template of Fiducial Mark
Actual Fiducial Mark
Crosshair

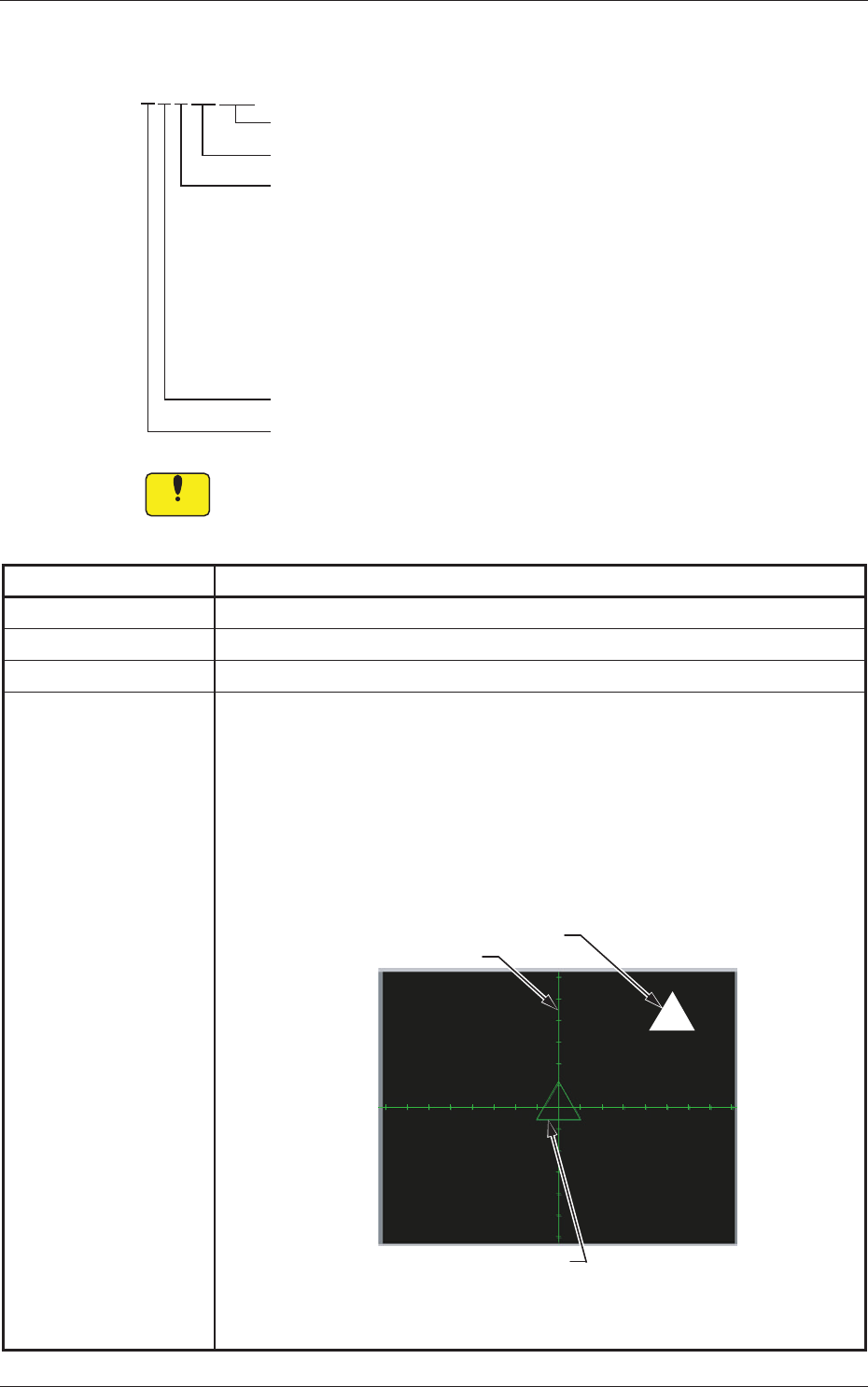

Fig. 4D2 Sample Display of Recognition Window
(Continued to the next page.)
0602-001
3.5 PEC Recognition Errors
4-20
AKHEMT-ID
Recognition Error ID Description of Recognition Error, Cause, and Remedy
(3) Manipulate the image movement buttons on the window until the actual
fi ducial mark comes over to the fi ducial mark template located at the
center of the crosshair.
Enlarge the view for accurate alignment operation. Otherwise,
components may not placed accurately.
(4) After the actual fi ducial mark has come over to the fi ducial mark
template, press the position defi nition button. The "AUTO OPN."
window resumes.
(5) When the [START] button on the operation panel is pressed, the
automatic operation restarts.
Notice
When the [x] button is pressed to exit from the recognition window,
the "Manual Alignment Operation Guide" window resumes.
Position Definition
Button
Image Movement
Buttons

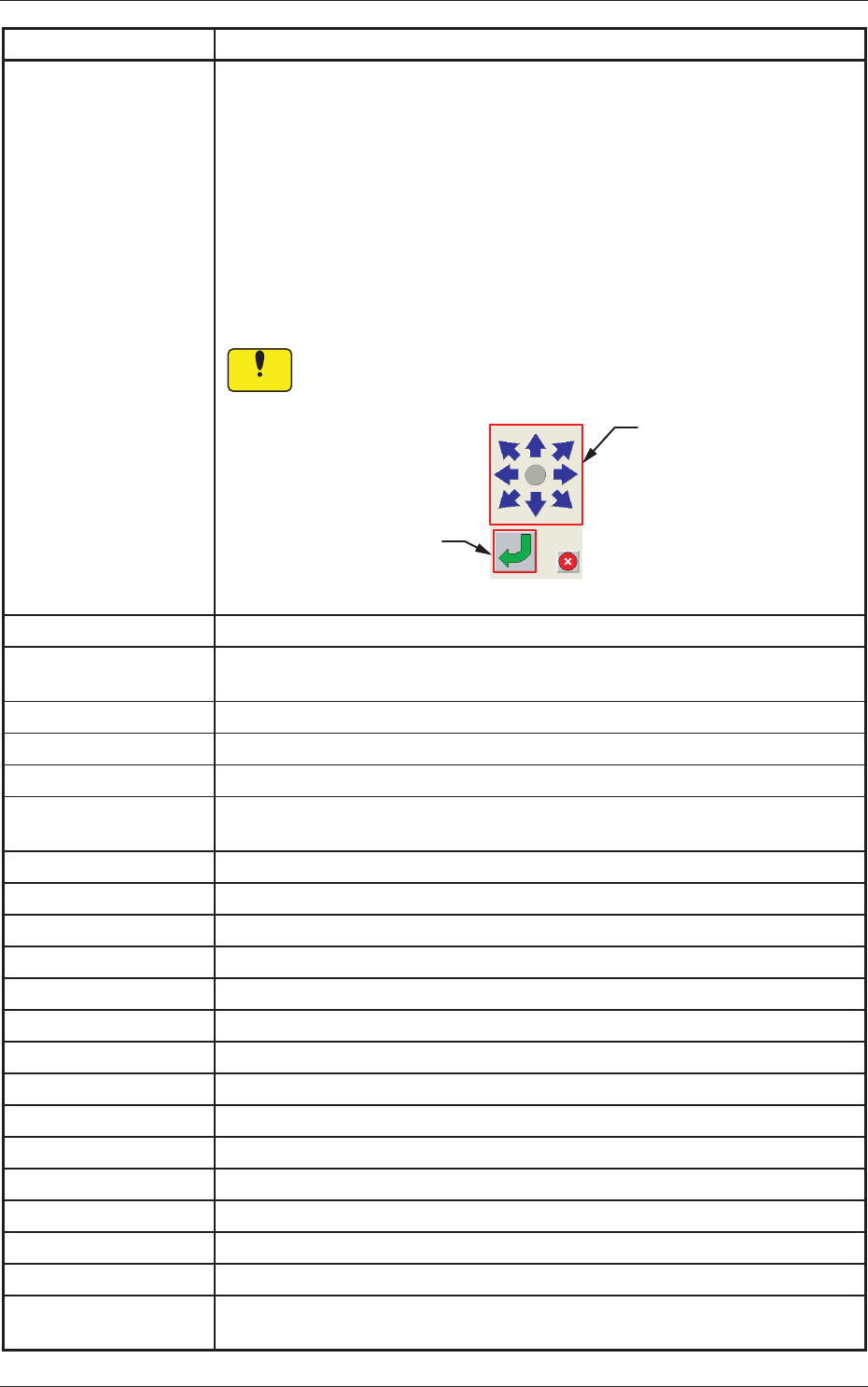

Fig. 4D3 Operation Buttons
0 6
2 * * 1 * * Edge not detected.
(Cause) PCB Recognition Error
(Remedy) Contact our service personnel for details.
0 6 3 ** 101 Specifi ed mark is not circle.
0 6 3 ** 102 Specifi ed mark is not square.
0 6 3 ** 201 Edge not detected.
(Cause) PCB Recognition Error
(Remedy) Contact our service personnel for details.
0 6 8 ** 101 Specifi ed mark not found in recognizable range.
0 6 8 ** 102 Specifi ed mark not found in recognizable range.
0 6 8 ** 201 Extensive error in similitude of mark size
0 6 8 ** 202 Extensive error in similitude of mark size
0 6 8 ** 301 Extensive error in similitude of mark shape
0 6 8 ** 302 Extensive error in similitude of mark shape
0 6 8 ** 401 Extensive error in similitude of mark shape
0 6 8 ** 402 Extensive error in similitude of mark shape
0 6 8 ** 501 Specifi ed mark not found in recognizable range.
0 6 8 ** 502 Specifi ed mark not found in recognizable range.
0 6 8 ** 601 Specifi ed mark not found in recognizable range.
0 6 8 ** 602 Specifi ed mark not found in recognizable range.
0 6 8 ** 603 Specifi ed mark not found in recognizable range.
0 6 8 ** 604 Specifi ed mark not found in recognizable range.
(Cause) PCB Recognition Error
(Remedy) Contact our service personnel for details.
0602-001
3.5 PEC Recognition Errors
4-21
AKHEMT-ID
Recognition Error ID Description of Recognition Error, Cause, and Remedy
0 6 E ** 001 Others
(Cause) Self-Diagnostics Error Message
(Remedy) Contact our service personnel for details.
1 6 * * * * * * Others
(Cause) Self-Diagnostics Error Message
(Remedy) Contact our service personnel for details.
