1-40 AKHEMT -ID 0602-001 3.3.10 Conveyor Section Conveyor Belt Shafts (3 places) Every 3 Months Cleaning and Lubrication (MOL YNOC GREASE AP1) Required T ime: 3 minutes W ipe off the old grease with a rag and apply new o…
1-39
AKHEMT-ID
3.3.9 PCB Positioning Section
View A
View A
Ball Screws (2 pcs.)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with a rag and apply
new one with a syringe.
Take ample care not to leave any
waste threads after cleaning.
Grease should be applied every 3 months
after the initial month.
Use No. 19 (brown) nozzle.
Notice
No. 19
Upper Surface of Backup Table
Every Week Cleaning
Required Time: 1 minutes
Remove foreign substances and unrequired
components and suck dirt and dust with a
vacuum cleaner.
Ball Screw Splines (4 places)
Every 6 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
Take ample care not to leave
any waste threads after
cleaning.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
No.19
Refer to "4.2 Lubrication for Ball
Screw Splines" for the lubrication
procedure.
Notice
Reference
Note
Note
Fig. 4A30
0605-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-40
AKHEMT-ID
0602-001
3.3.10 Conveyor Section
Conveyor Belt Shafts (3 places)
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 3 minutes
Wipe off the old grease with a rag and apply
new one with a brush.
Take ample care not to leave
any waste threads after cleaning.
Notice
Linear Guides (5 places)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 3 minutes
Wipe off old grease with a rag and apply
new one with a syringe.
Take ample care not to leave any
waste threads after cleaning.
Grease should be applied every 3 months
after the initial month.
Use No. 19 (brown) nozzle.
Notice
Note
No. 19
Fig. 4A31
0602-001
3.3 Inspection, Cleaning, and Lubrication Spots
1-41
AKHEMT-ID

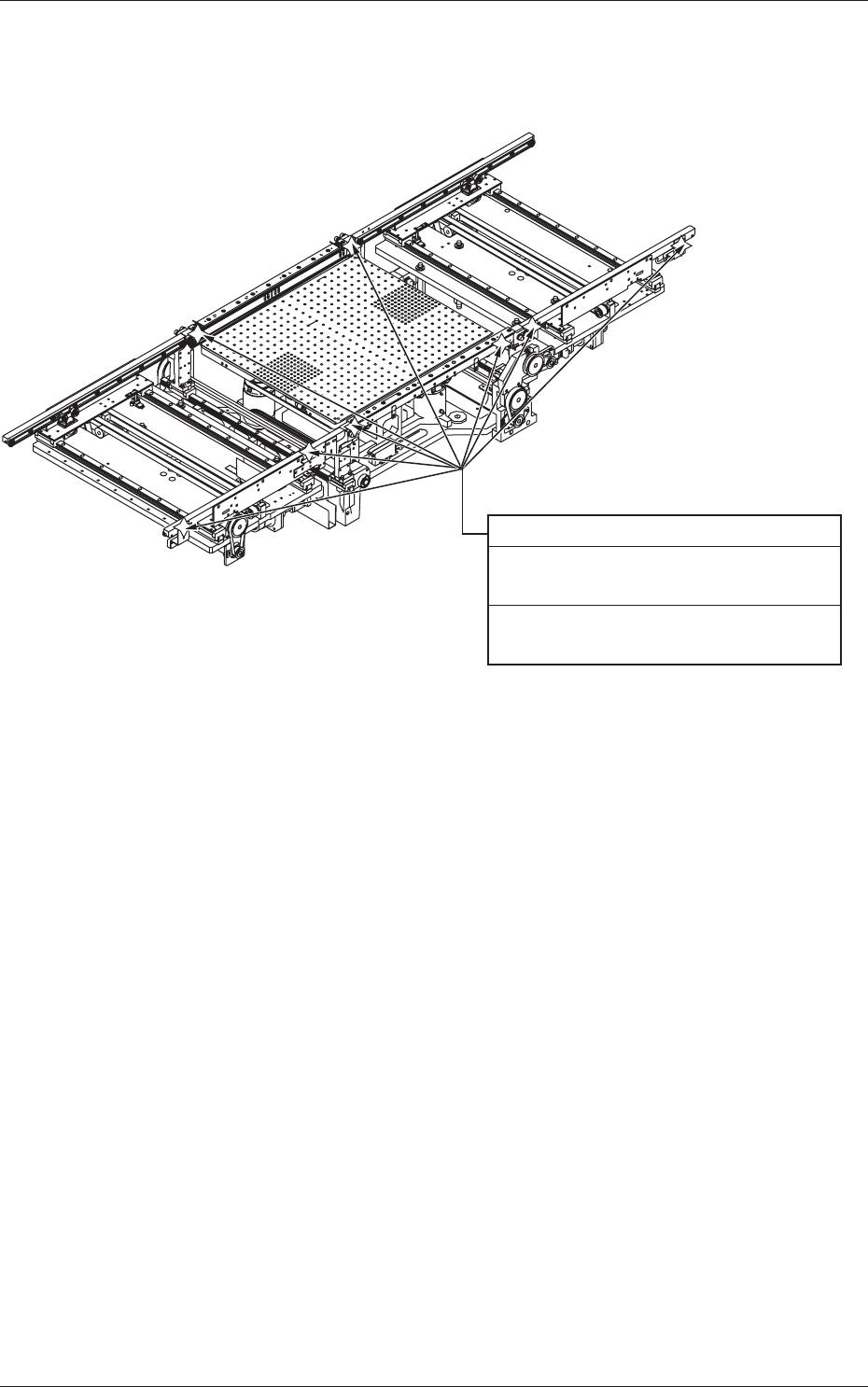

PCB Detection Sensors (8 places)
Every Week Cleaning
Required Time: 2 minutes
Clean the PCB detection sensors with a
rag.
Fig. 4A32
0602-001
3.3 Inspection, Cleaning, and Lubrication Spots
