1-43 AKHEMT -ID 3.3.12 Control Box Section Fan (1 place) Every 3 Months Cleaning Required T ime: 2 minutes (1) Detach four setscrews fastening the dust filter . (2) Suck dirt and dust with a vacuum cleaner . (3) Attach t…
1-42
AKHEMT-ID
3.3.11 Nozzle Stocker Section
Nozzle Storage Section
Every Month Cleaning
Suck dirt and dust with a vacuum cleaner.
Nozzle Stocker Sliding Area
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
Note
No. 19
Fig. 4A33
0605-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-43
AKHEMT-ID
3.3.12 Control Box Section
Fan (1 place)
Every 3 Months Cleaning
Required Time: 2 minutes
(1) Detach four setscrews fastening the
dust filter.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter and secure it with
the setscrews.
Fig. 4A34
0605-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-44
AKHEMT-ID

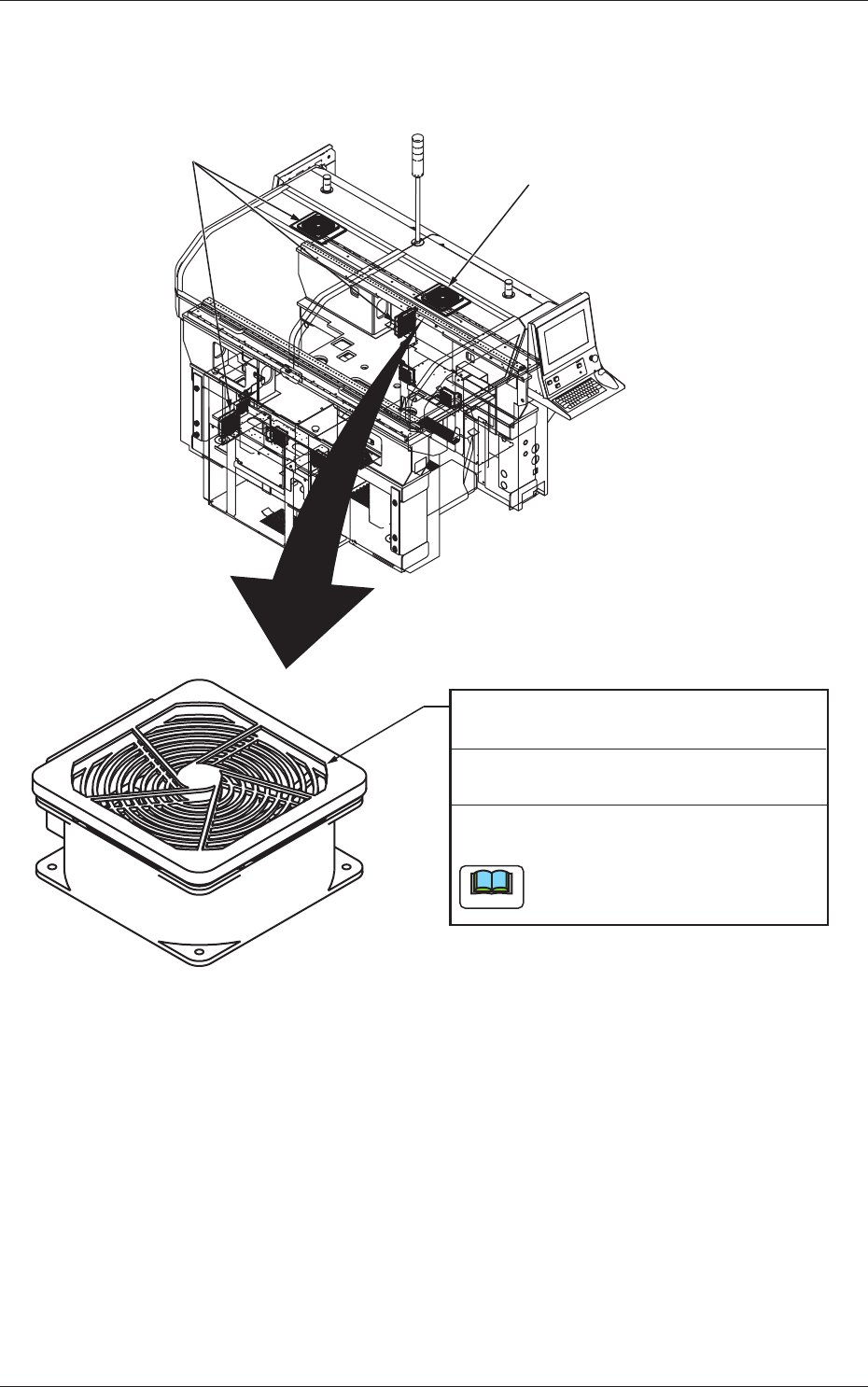

3.3.13 Fans
Every 3 Months Cleaning
Required Time: 5 minutes
Suck dirt and dust from the dust filters with
a vacuum cleaner.
10 fans are used in all but only
4 fans are provided with dust filters.
Fan (Provided with Dust Filter)
(4 places)
Note
Fans with Dust Filters
Fans with Dust Filters
Fig. 4A35
0605-002
3.3 Inspection, Cleaning, and Lubrication Spots
