1-15 AKHEMT -ID 2.5 Half-Y early Maintenance Grease Symbols DE1 : DAPHNE EPONEX GREASE No. 1 KS64 : Silicon Grease KS64 T able 4A12 2.6 Y early Maintenance T able 4A13 0602-001 2.5 Half-Y early Maintenance
1-14
AKHEMT-ID
Table 4A11-2
0602-001
2.4 Quarterly Maintenance
1-15
AKHEMT-ID
2.5 Half-Yearly Maintenance
Grease Symbols
DE1 : DAPHNE EPONEX GREASE No. 1
KS64 : Silicon Grease KS64

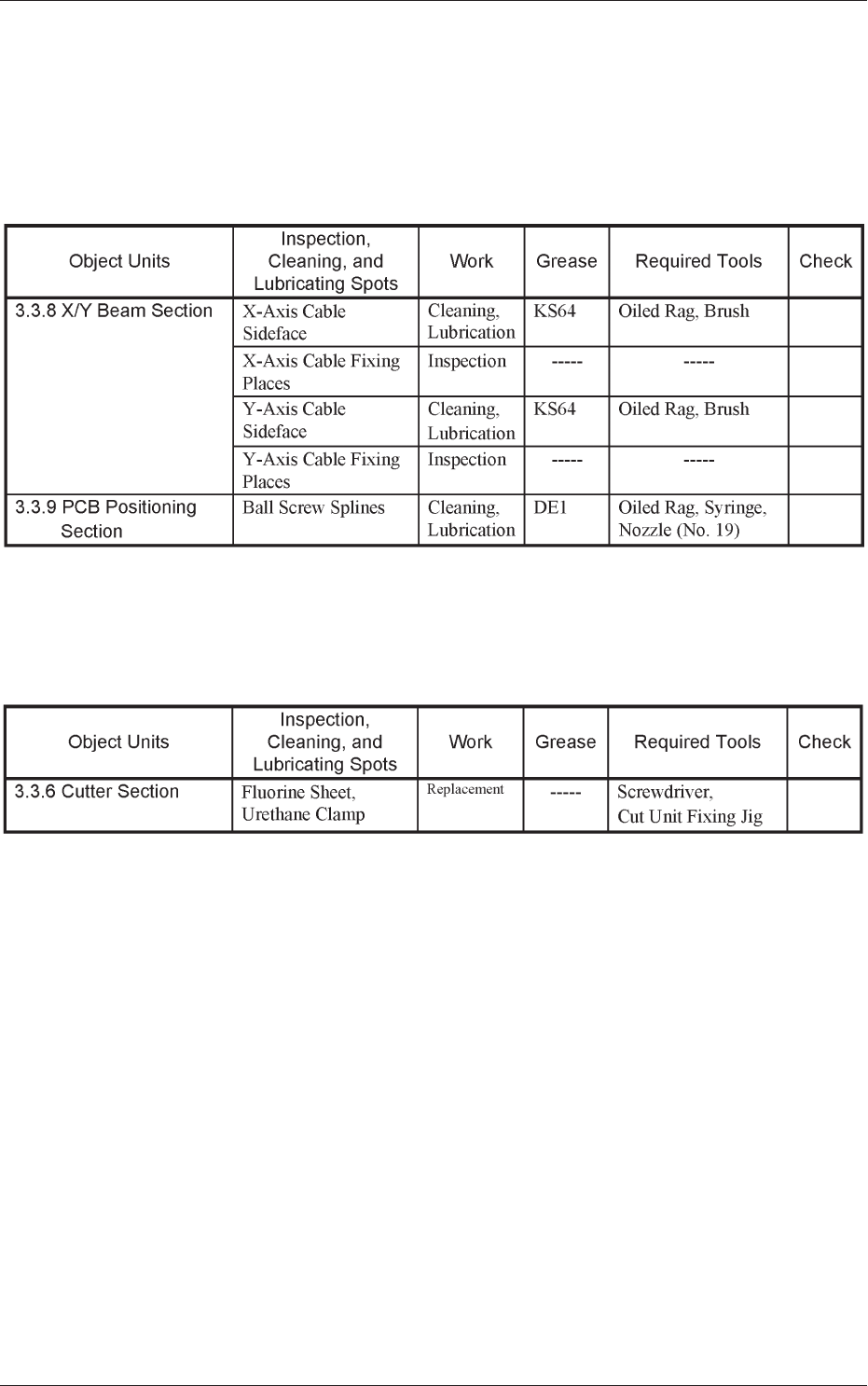

Table 4A12
2.6 Yearly Maintenance
Table 4A13
0602-001
2.5 Half-Yearly Maintenance
1-16
AKHEMT-ID
3. Maintenance Spots
3.1 Whole View
Notice
Any operations with a cover(s) being removed are included.
After the maintenance work, be sure to attach the cover.
Feeder Cart Section
Control Box Section
Air Source
Vacuum System
Fig. 4A6 Front View of Machine
Reference
(a) Refer to "3.3" and the subsequent items for the detailed information
on the spots of each section to be maintained and how to maintain
them.
(b) As for the options, refer to each instruction manual of the specially
specifi ed devices for the maintenance.
0609-003
3. Maintenance Spots
