Preparation for Cleaning
(1) Lens Cleaning Cloth (Accessory)
(2) Cotton Swab
(3) Recommended Absolute Ethanol : C
2
H
6
O 99.5 vo1/%
(High Purity)
Cleaning Procedure
(1) Press
the [LINE MEAS] button on the "PERIODIC MAINT" submenu
bar. The "LINEAR MEASURE CLEANING" window appears.
(Operation Sequence: [MAINT] Button on Main Menu Bar
→
[PERIODIC MAINT]
Button on Submenu Bar
→
[LINE MEAS]
Button)

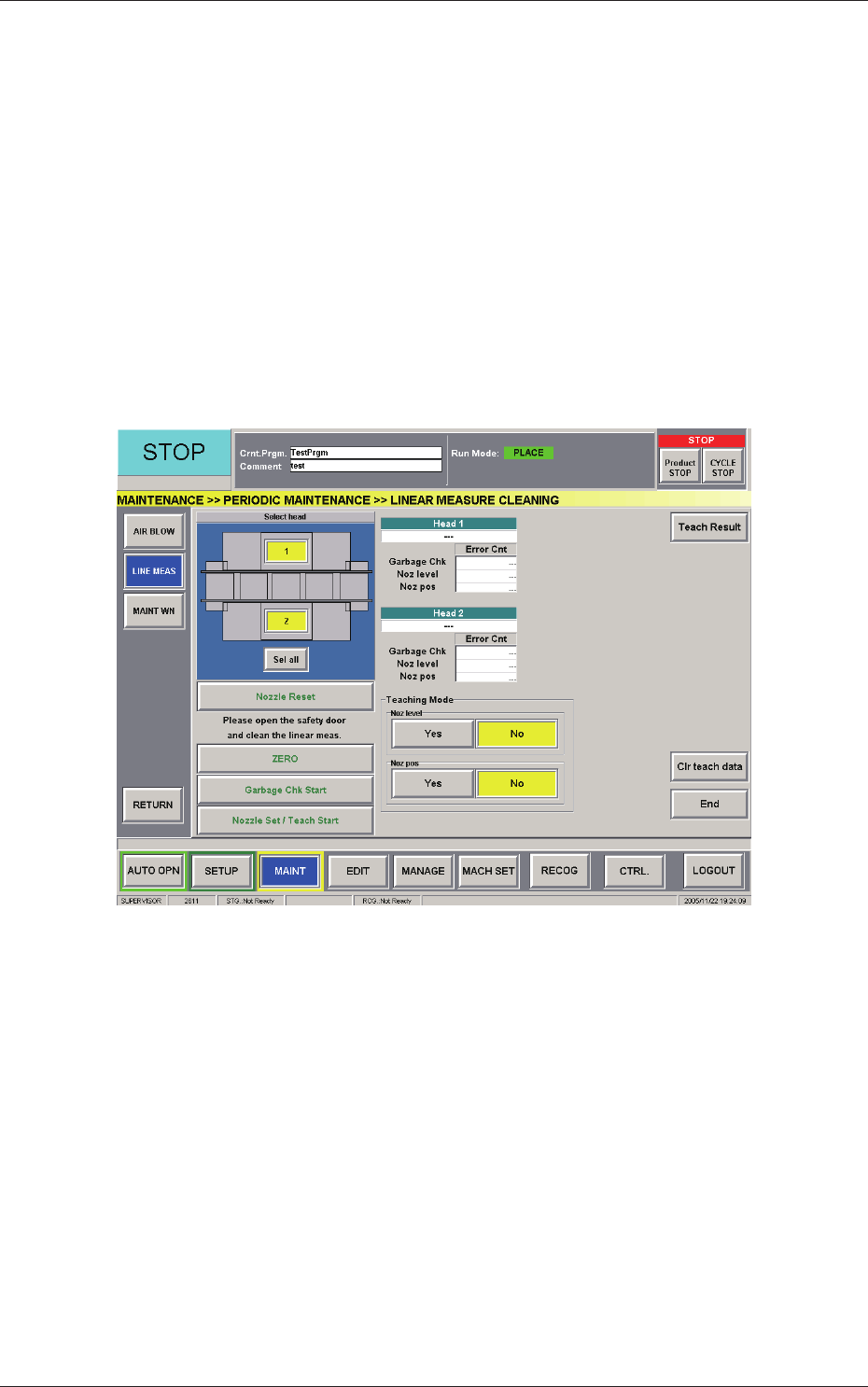

Fig. 4A56 "LINEAR MEASURE CLEANING" Window
(
2) Select
the head whose linear measure sensor should be cleaned.
(3) Press the [Nozzle Reset] button to store the vacuum nozzle in the nozzle
stocker (housing).
(4) Press the [READY] switch. The LED extinguishes.
The cover is unlocked.
0804-003
4.5 Cleaning of Linear Measure Sensor
1-58
AKHEMT-ID
(5) Open the cover.
CAUTION
CAUTION
The load power to the motors, etc., is turned OFF but the
maintenance operation must be performed carefully, protecting
your hands from any injury.
(6) Move the placement head manually to an easy-to-access position for
cleaning.
(7) Wipe the light emitter and receiver of the linear measure sensor softly
with a lens cleaning cloth.
Notice
Be sure not to rub the surface of the sensor strong with the cloth.
Otherwise, the sensor may be damaged.
(8) Close the cover.
(9) Press the [READY] switch. The LED illuminates.
The cover is locked.
(10) Press the [Garbage Chk Start] button.
"OK" or "NG" appears in the "Garbage Chk" text box of the selected
head.
OK :
No dirt and scratch marks are detected.
NG :
Some dirt and scratch marks are detected.
Fig. 4A57
("OK" Displayed)
When "OK" is displayed, proceed to Step (20).
When "NG" is displayed, go back to Step (4).
When "OK" is not displayed even after Steps (4) through (9) are
repeated several times, follow Steps (11) through (19).
(11) Move down the feeder base and detach the bank feeder change cart
from the machine.
Reference
Refer to "2.4.8 Feeder Bases and Bank Feeder Change Cart" in "Chapter
1" of the instruction manual (Vol. 1: Guide) for how to detach the bank
feeder change cart.
(12) Press the [READY] switch. The LED extinguishes.
The cover is unlocked.
0605-002
4.5 Cleaning of Linear Measure Sensor
1-59
AKHEMT-ID
(13) Open the cover.
CAUTION
CAUTION
The load power to the motors, etc., is turned OFF but the
maintenance operation must be performed carefully, protecting
your hands from any injury.
(14) Move the placement head manually to an easy-to-access position for
cleaning.
(15) Wipe the light emitter and receiver of the linear measure sensor (located
at the bottom of the head) softly with a cotton swab (cotton loosened
and soaked in absolute ethanol).
Notice
Be sure not to rub the surface of the linear measure sensor strong.
Otherwise, the sensor may be damaged.
(16) Close the cover.
(17) Press the [READY] switch. The LED illuminates.
The cover is locked.
(18) Press the [Garbage Chk Start] button.
"OK" or "NG" appears in the "Garbage Chk" text box of the selected
head.
When "OK" is displayed, proceed to Step (19).
When "NG" is displayed, go back to Step (11).
When "OK" is not displayed even after the required steps are repeated
several times, the linear measure sensor must be replaced with a new
one.
(19) Set the bank feeder change cart back in place and move up the feeder
base.
Reference
Refer to "2.4.8 Feeder Bases and Bank Feeder Change Cart" in "Chapter
1" of the instruction manual (Vol. 1: Guide) for how to attach the bank
feeder change cart.
(20) Select the [Yes] or the [No] button in the "Noz level" and "Noz pos"
group boxes ("Teaching Mode" Group Box) to determine whether or
not a teaching operation should be performed.
(21) Press the [Nozzle Set / Teach Start] button to attach the vacuum nozzle
to the placement head.
When the [Yes] buttons are selected in the "Noz level" and "Noz pos"
group boxes in Step (20), both nozzle attachment and teaching operation
are executed.
0602-001
