1-29 AKHEMT -ID W A R N I N G W ARNING Pay close attention to the cutter blade during the maintenance work. • Lack of attention will result in a hand injury , etc. • Be sure to attach the ﬁ xing jig to the cut unit durin…

1-28

AKHEMT-ID

3.3.6 Cutter Section

Cutter Boxes (Both Sides)

Every Week Cleaning

(1)

(2)

Detach the bank feeder change cart.

Move the cutter unit with the [Move Maint. Pos.]

button in the "CUTTER ADJ" window

(the window that opens after the [CUT ADJ]

button on the "UNIT ADJ" submenu bar is pressed).

(3) Turn off the power supply.

(4) Open the cover.

(5) Detach the transparent covers located on both

sides (origin and motor sides) of the cutter section

and remove dirt and dust with a vacuum cleaner.

Use a vacuum cleaner with a narrow air opening

in the nozzle.

Note

Narrow Air Opening in Nozzle End

(Recommended)

Transparent Cover

(Motor Side)

Required Time: 2 minutes

Transparent Cover

(Origin Side)

Fig. 4A19-1

0605-002

3.3 Inspection, Cleaning, and Lubrication Spots

1-29

AKHEMT-ID

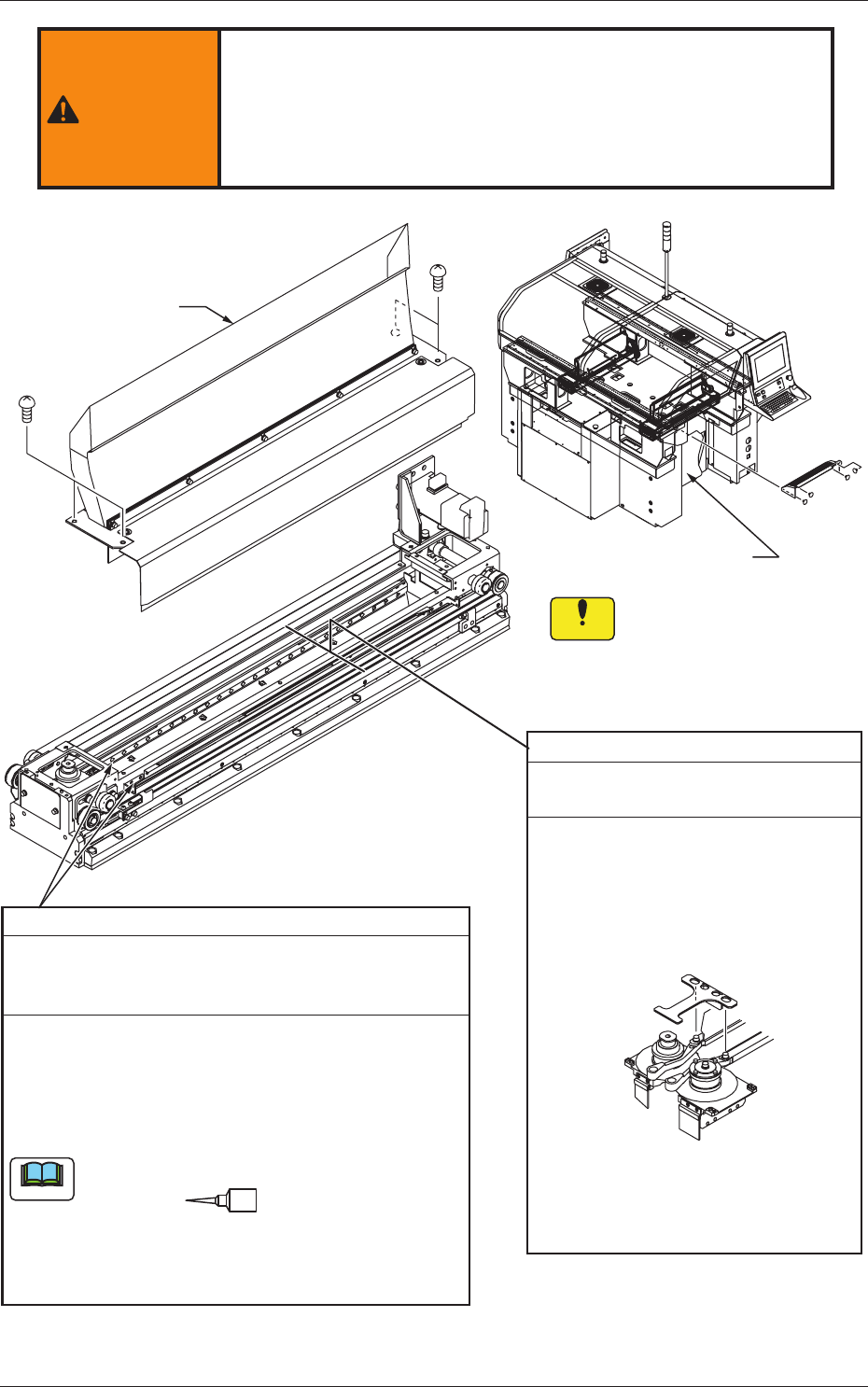

WARNING

Pay close attention to the cutter blade during the maintenance

work.

•

Lack of attention will result in a hand injury, etc.

•

Be sure to attach the ﬁ xing jig to the cut unit during the

maintenance work for safety purposes.

Linear Guides

Every 3 Months Lubrication

(DAPHNE EPONEX GREASE No. 1)

Required Time: 10 minutes

As for the lower groove, put your hand from the cut

waste chute (cover) and apply the grease to the groove.

Tape Guide

Cut Waste Chute (Cover)

When the tape guide is

detached or attached,

be sure to keep the Y-axis

linear scale free of nicks

and scratches.

Notice

Cutter Box

Every 3 Months Cleaning

Required Time: 5 minutes

(1) Remove four screws and detach

the tape guide.

(2) Use the outer hole of the cut unit

fixing jig and attach the jig with

the bent portion being directed

downward.

No. 18

Note

Attachment Position of

Cut Unit Fixing Jig

(3) Clean the area around the linear

guides with a vacuum cleaner.

(1) Remove four screws and detach the tape guide.

(2) Wipe off the old grease with a rag and apply a

small amount of new grease to the grooves

(upper and lower ones) of the linear guides with a

syringe.

Use No. 18 (green) nozzle.

Fig. 4A19-2

0605-002

3.3 Inspection, Cleaning, and Lubrication Spots

1-30

AKHEMT-ID

WARNING

Pay close attention to the cutter blade during the maintenance

work.

Lack

of attention will result in a hand injury, etc.

Be

suretoattachthexingjigtothecutunitduringthe

maintenance work for safety purposes.

Tape Guide

Flat Ring

Every 3 Months Replacement

(1) Remove four screws and detach the tape guide.

(2) Use the inner holes of the cutter unit fixture with the tape clamp being closed and attach the jig

with the bent portion being directed upward.

Attachment Position of Cutter Unit Fixture Attachment Condition of Replacement Jig

(3) Cut the used flat ring with a cutter on market and detach it.

(4) Attach a new flat ring to the flat ring replacement jig.

(5) Place the flat ring replacement jig on the roller on the oscillating side (outside of the machine),

push down the flat ring, and insert it into the groove of the roller on the oscillating side.

Required Time: 10 minutes

When the tape guide is

detached or attached,

be sure to keep the Y-axis

linear scale free of nicks

and scratches.

Notice

Fig. 4A19-3

CAUTION

Whilecuttingtheatringwithacutteronmarket,handlethe

cutter with care to avoid getting hurt.

0712-003

3.3 Inspection, Cleaning, and Lubrication Spots
