Page 7-15
DATA MODIFICATION
7

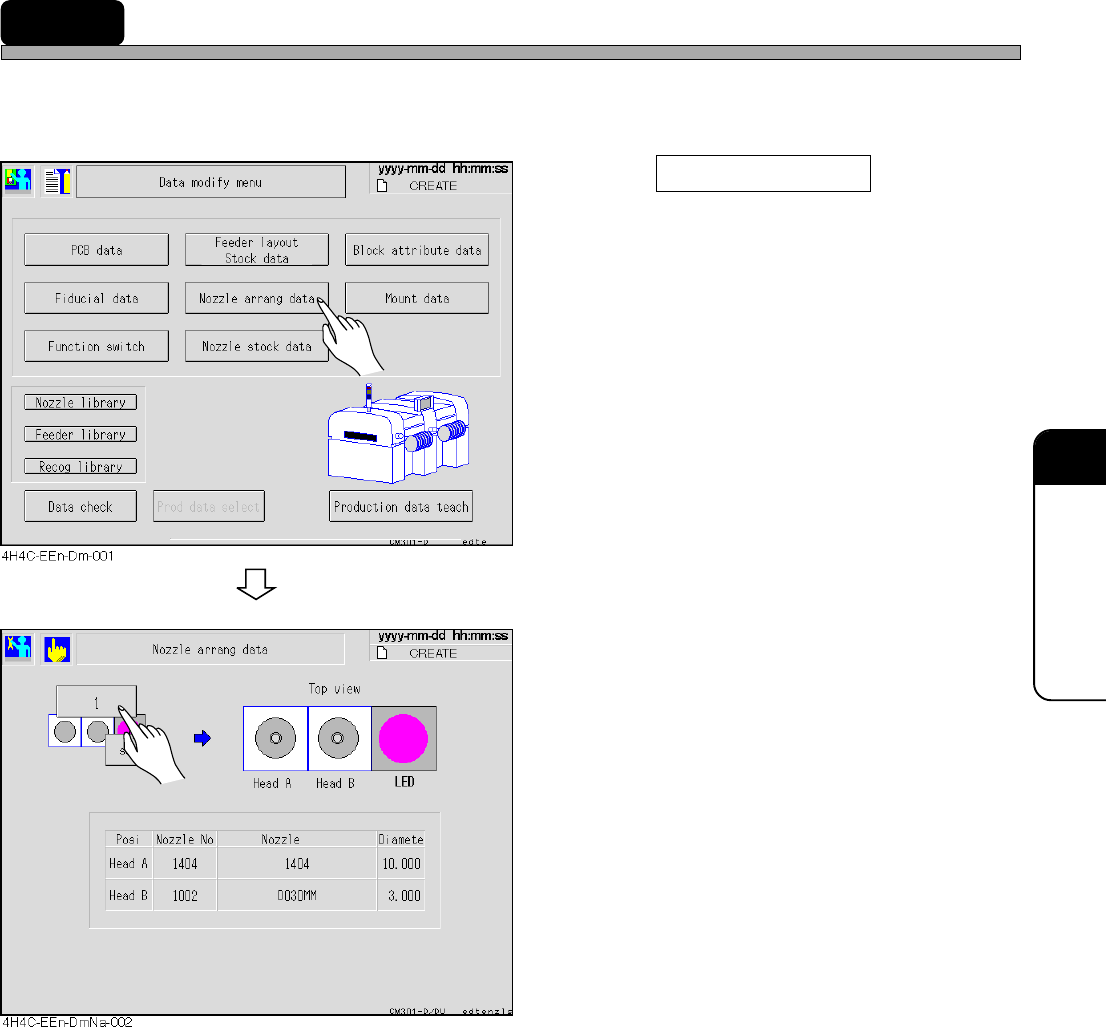

7-6 Nozzle Arrangement Data
The arrangement of the nozzle on each head can be checked.
∗ You cannot change data. Change data on PT, if necessary.
1. Press Nozzle arrang data .
• The nozzle arrangement data screen appears.
2. Select the stage and check data.
4H4C-E-OMA07-A01-03
Page 7-16

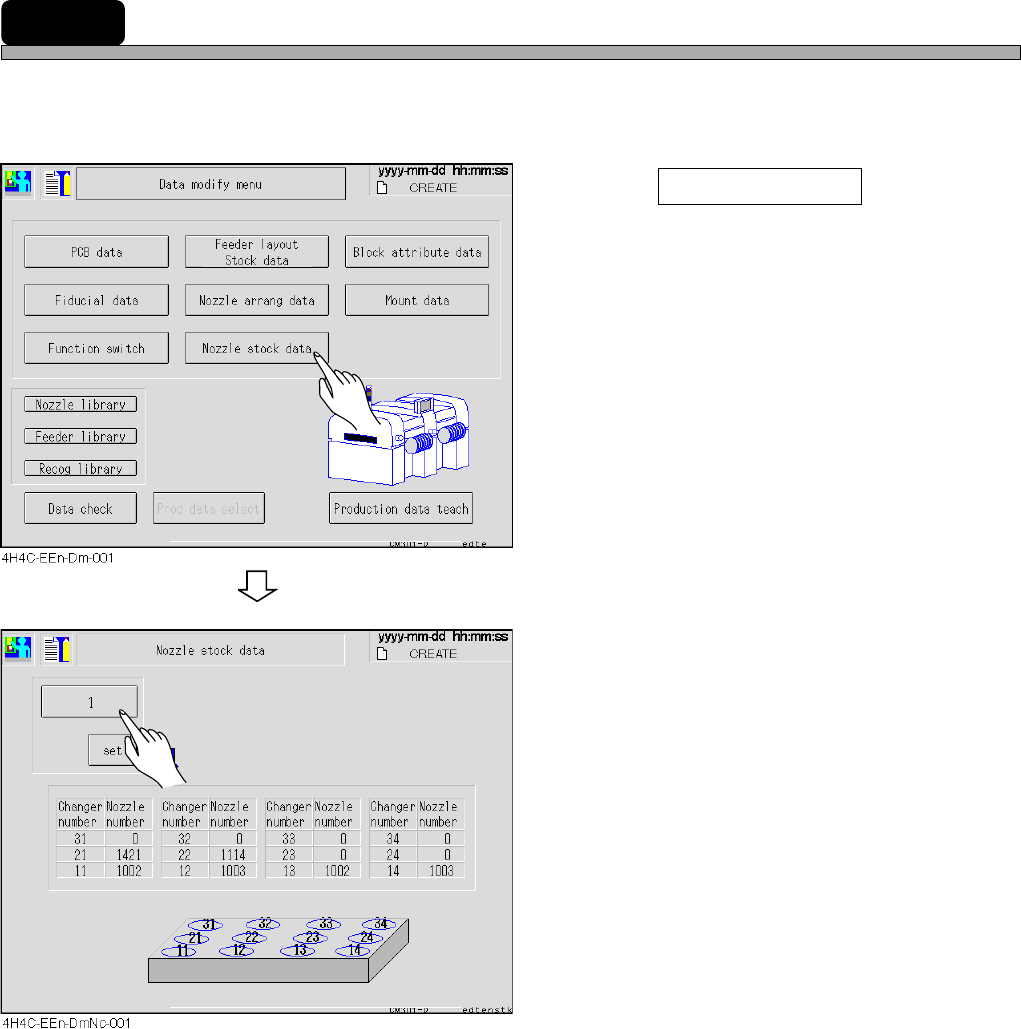

7-7 Nozzle Stock Data
These are data of the position to set the nozzle to the nozzle changer.
∗ This screen is for referring to the nozzle stock data. Data cannot be changed. Change data on PT
if necessary.
1. Press Nozzle stock data .
• The nozzle stock data screen appears.
2. Select the stage and check data.
4H4C-E-OMA07-A01-03
Page 7-17
DATA MODIFICATION
7

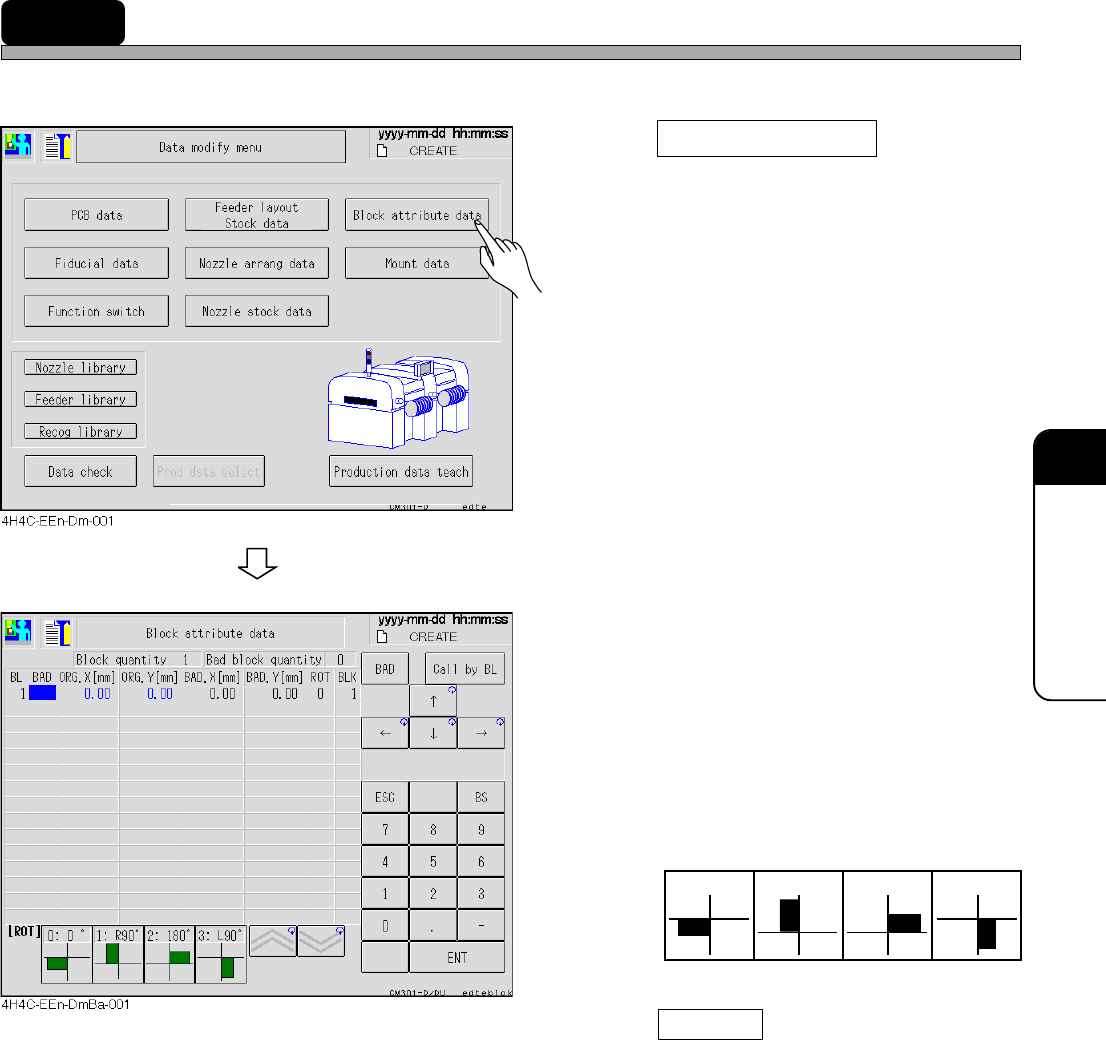

7-8 Block Attribute Data
The block attribute data is checked and modified.
1. Press Block attribute data .
• The block attribute data screen appears.
2. Modify the bad block mark coordinate
(BAD. X, BAD. Y), if necessary.
[Items]
• BL : Block No.
• BAD : Bad block
• ORG. X, Y : Block origin coordinate
• BAD. X, Y : Bad block mark coordinate
• ROT : Block extension angle number
• Press Call by BL , and enter the block No. to
move the cursor to the specified block No.
1 :
R 90°
2 : 180°
3 :
L 90°
0 : 0°
4H4C-E-OMA07-A01-05
