Chip Recognition Teaching
8-5-3 Before the Chip Recognition Teaching
Many recognition errors are attributed to the chip data, and correcting the data can prevent the
errors.
Use the chip recognition teaching mainly for checking the chip data, in addition to the block match
recognition.
Check following items before checking chips at the chip recognition teaching.
a) Chip data being used is proper or not
Operating procedures for checking
chip data
1
Press
Data modify
.
2
Press .
To the next page
Feeder layout
Stock data
4H4C-E-OMA08-A01-01
Page 8-21
TEACHING
8
Chip Recognition Teaching
3
Select the chip name and press
Change .
4
Check the chip data.
1. Chip size
2. Nozzle
3. REF No.
Press Exten chip .
Check the extension chip data.
5
6
4H4C-E-OMA08-A01-03
4H4C-EEn-DmCd-003
Page 8-22
Chip Recognition Teaching
b) The recognition rate of the judgment value within the machine
parameter is proper or not

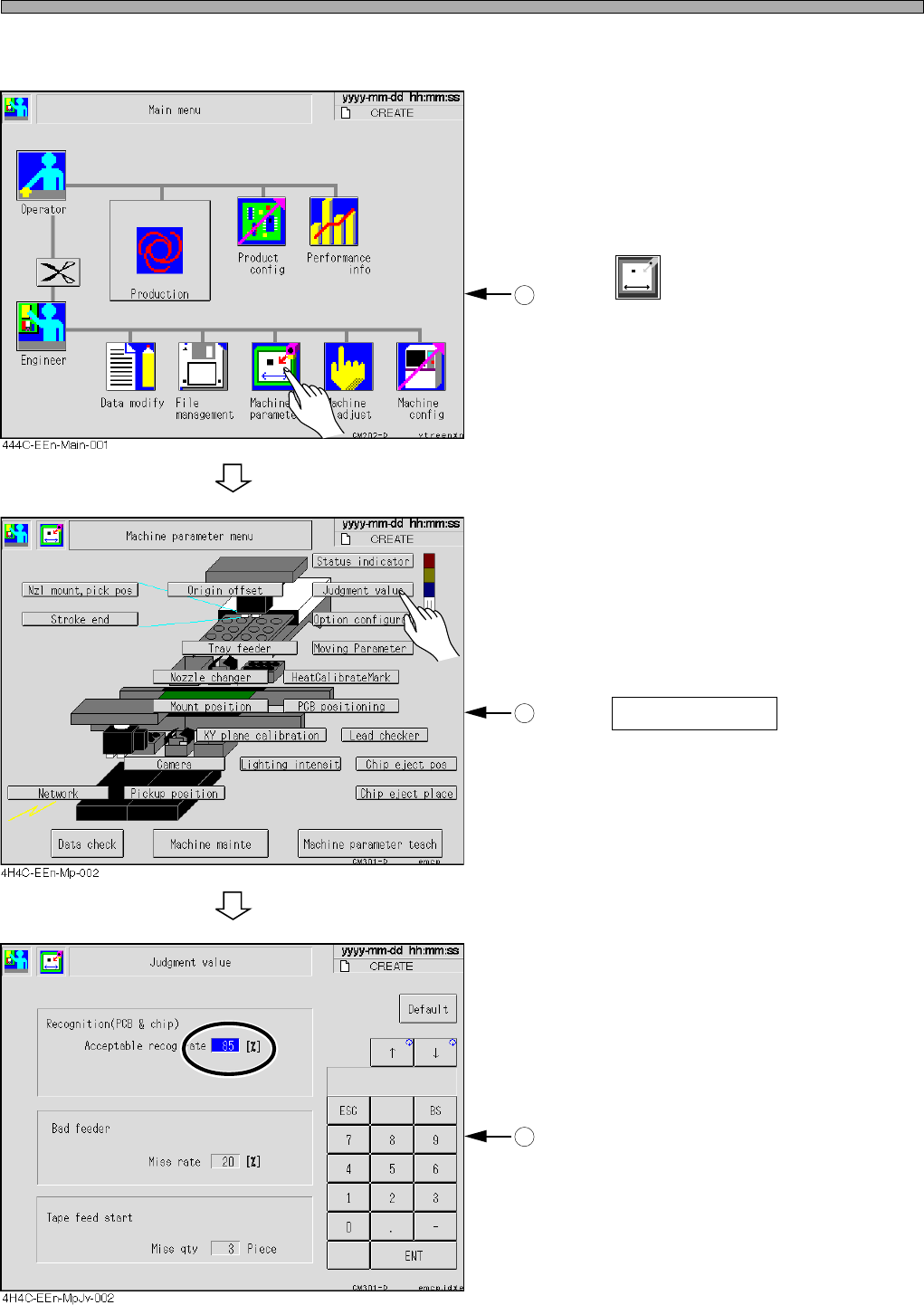

Operating procedures to checking the
recognition rate
1
Press
Machine
parameter
.
2
Press Judgment value .
3
Check the recognition rate.
(Usually about 85%)
4H4C-E-OMA08-A01-03
