Page 8-20 Chip Recognition T eaching 8-5-3 Before the Chip Recognition T eaching Many recognition errors are attributed to the chip data, and correcting the data can prevent the errors. Use the chip recognition teaching …
Page 8-19
TEACHING
8
Chip Recognition Teaching
When chip recognition is required
When following troubles occur, check the chip recognition teaching.
Case 1. At the specified unit during pro-
duction, a recognition error oc-
curs.
Case 2. By the pickup information in the
reference production report, many
errors occur at the specified unit.
4H4C-E-OMA08-A01-03
Page 8-20
Chip Recognition Teaching
8-5-3 Before the Chip Recognition Teaching
Many recognition errors are attributed to the chip data, and correcting the data can prevent the
errors.
Use the chip recognition teaching mainly for checking the chip data, in addition to the block match
recognition.
Check following items before checking chips at the chip recognition teaching.
a) Chip data being used is proper or not
Operating procedures for checking
chip data
1
Press
Data modify
.
2
Press .
To the next page
Feeder layout
Stock data
4H4C-E-OMA08-A01-01

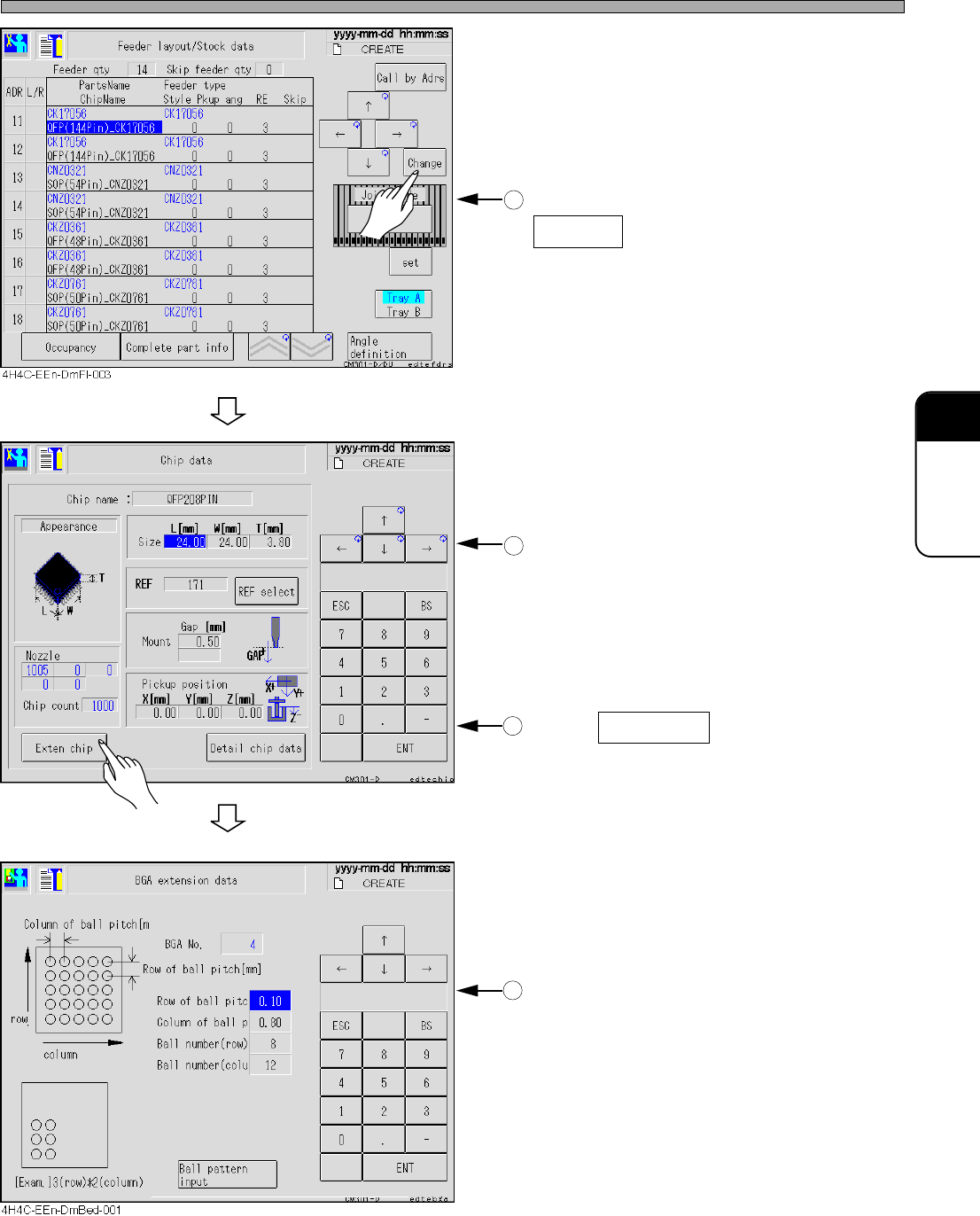

Page 8-21
TEACHING
8
Chip Recognition Teaching
3
Select the chip name and press
Change .
4
Check the chip data.
1. Chip size
2. Nozzle
3. REF No.
Press Exten chip .
Check the extension chip data.
5
6
4H4C-E-OMA08-A01-03
4H4C-EEn-DmCd-003
