Pickup Position Learning Teaching

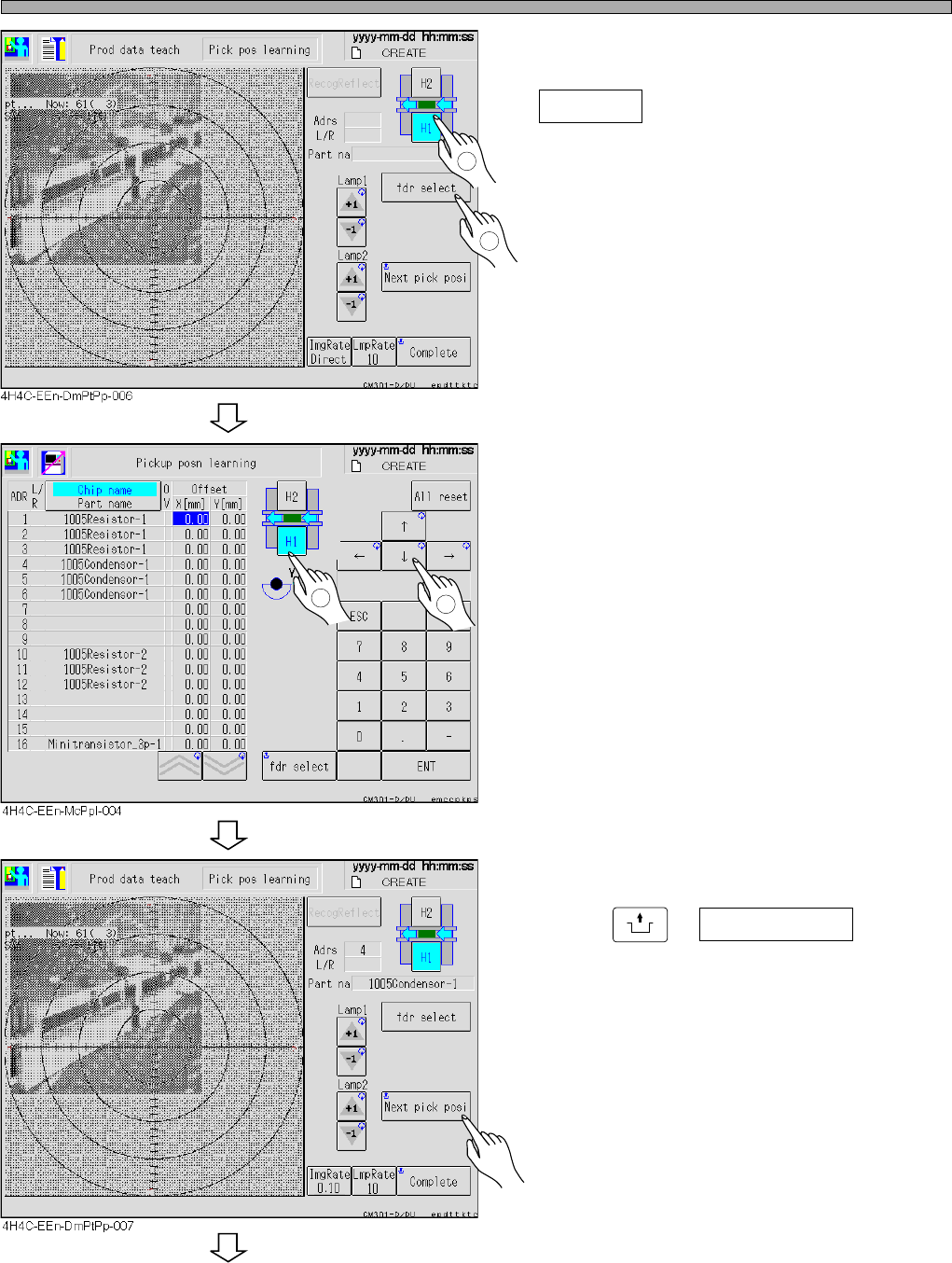

3. Select the satage and press
fdr select .
4. Select data for teaching.
5. Press
UNLOCK
+ Next pick posi .
• The head camera moves to the pickup position.
1
2
To the next page
1
2
4H4C-E-OMA08-A03-03
Page 8-37
TEACHING
8
Pickup Position Learning Teaching

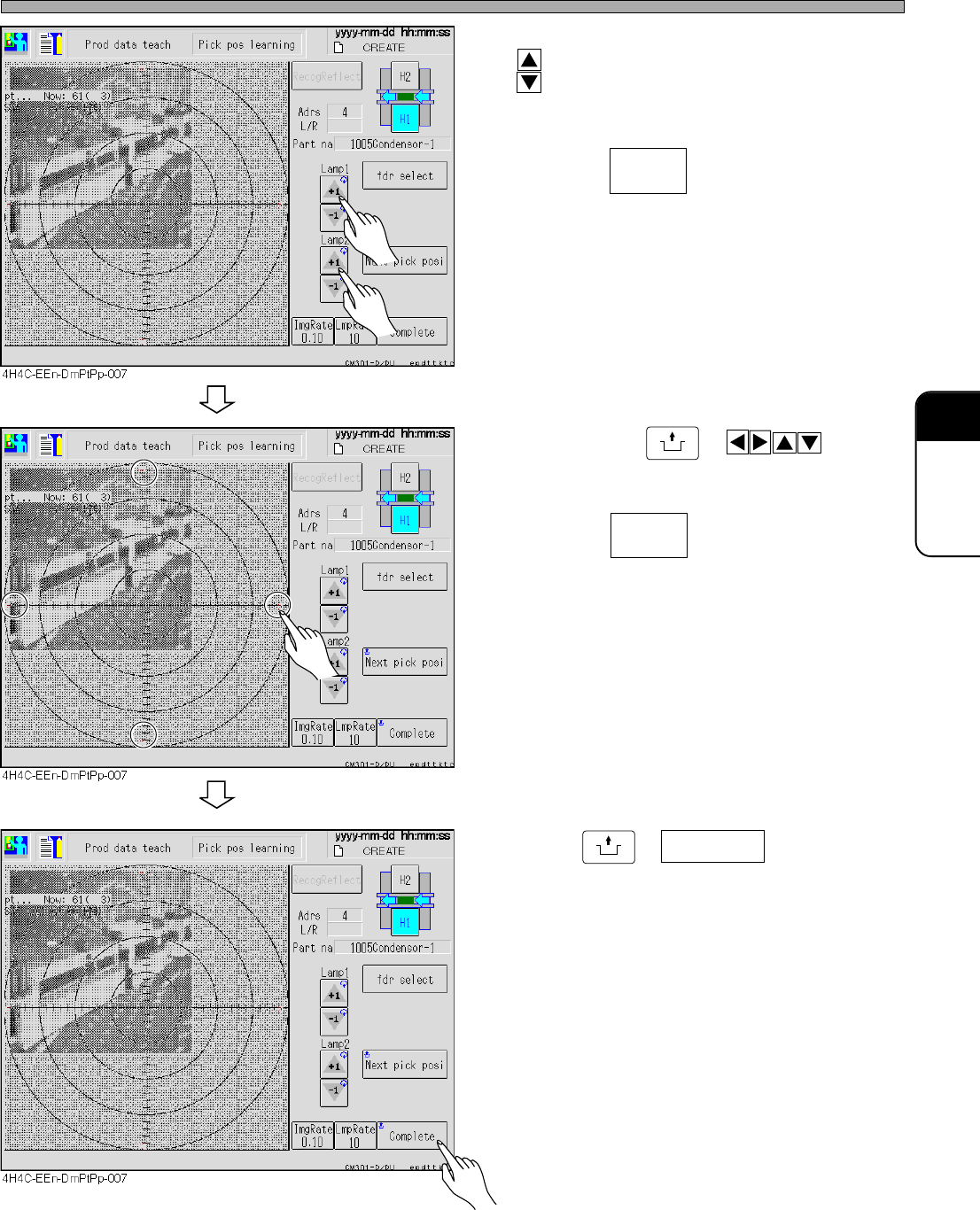

6. Adjust the brightness of the lamp with
.
• Adjust the brightness so that the chips can be
seen.
• Pressing changes the key rate of
lamp value adjustment .
7. By pressing
UNLOCK
+ , move
the image and put the pickup position
and the center of the camera together.
• Pressing changes the distance of
the head camera (image).
8. Press
UNLOCK
+ Complete .
4H4C-E-OMA08-A03-03
ImgRate
0.10
LmpRate
10
Page 8-38
To the next page
8-8 Tray Pickup Position Teaching
Deciding the pickup position by viewing the chips through the camera, the tray block origin and
pitch can be measured.

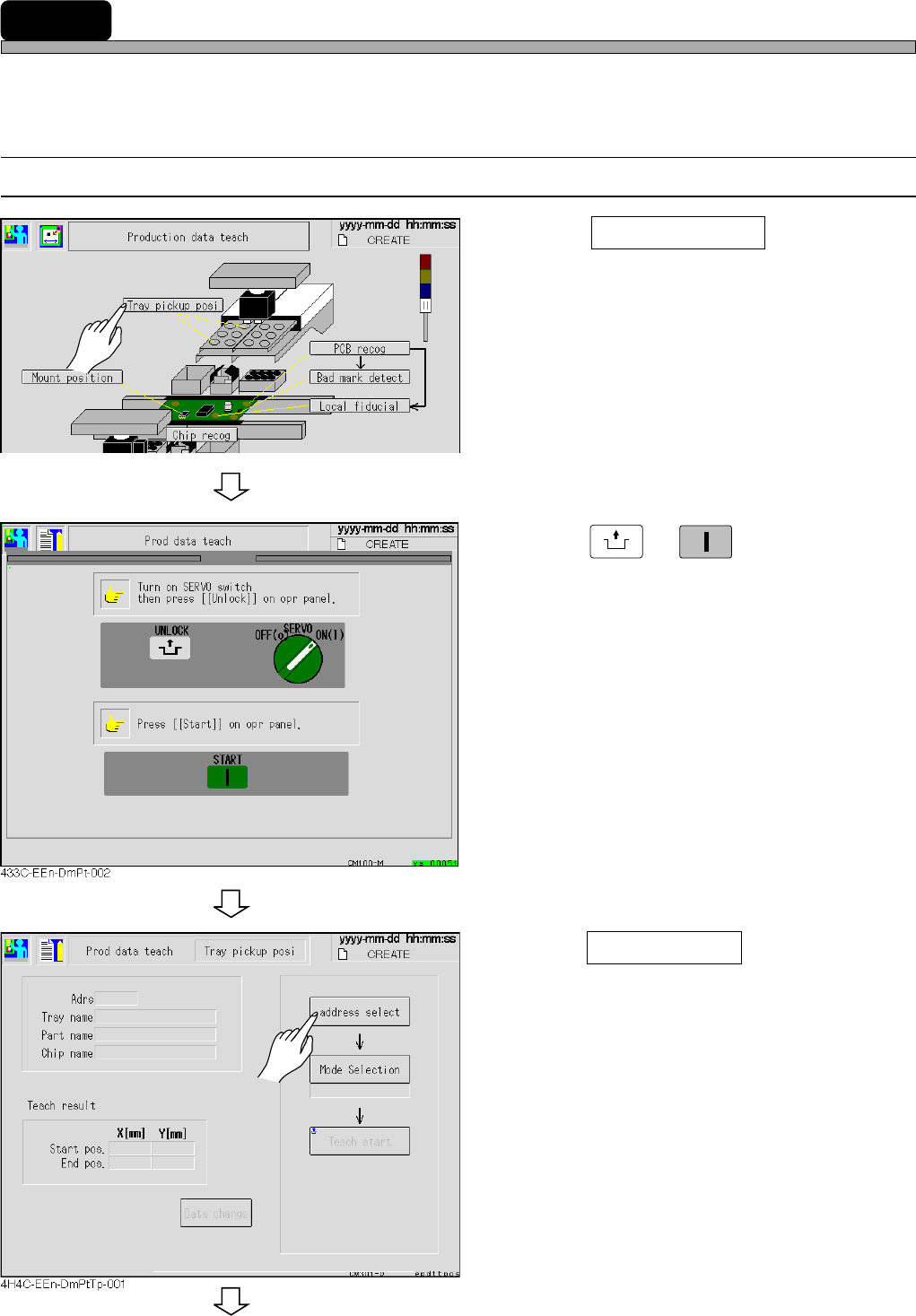

8-8-1 Teaching Procedure
1
. Press Tray pickup posi .
• The tray pickup position screen appears.
2. Press
UNLOCK
→→
→→
→
START
.
3. Press Address select .
4H4C-E-OMA08-A04-01
4H4C-EEn-DmPt-001
