Page 10-5
OPTION
10
Transport Speed Variable Adjustment

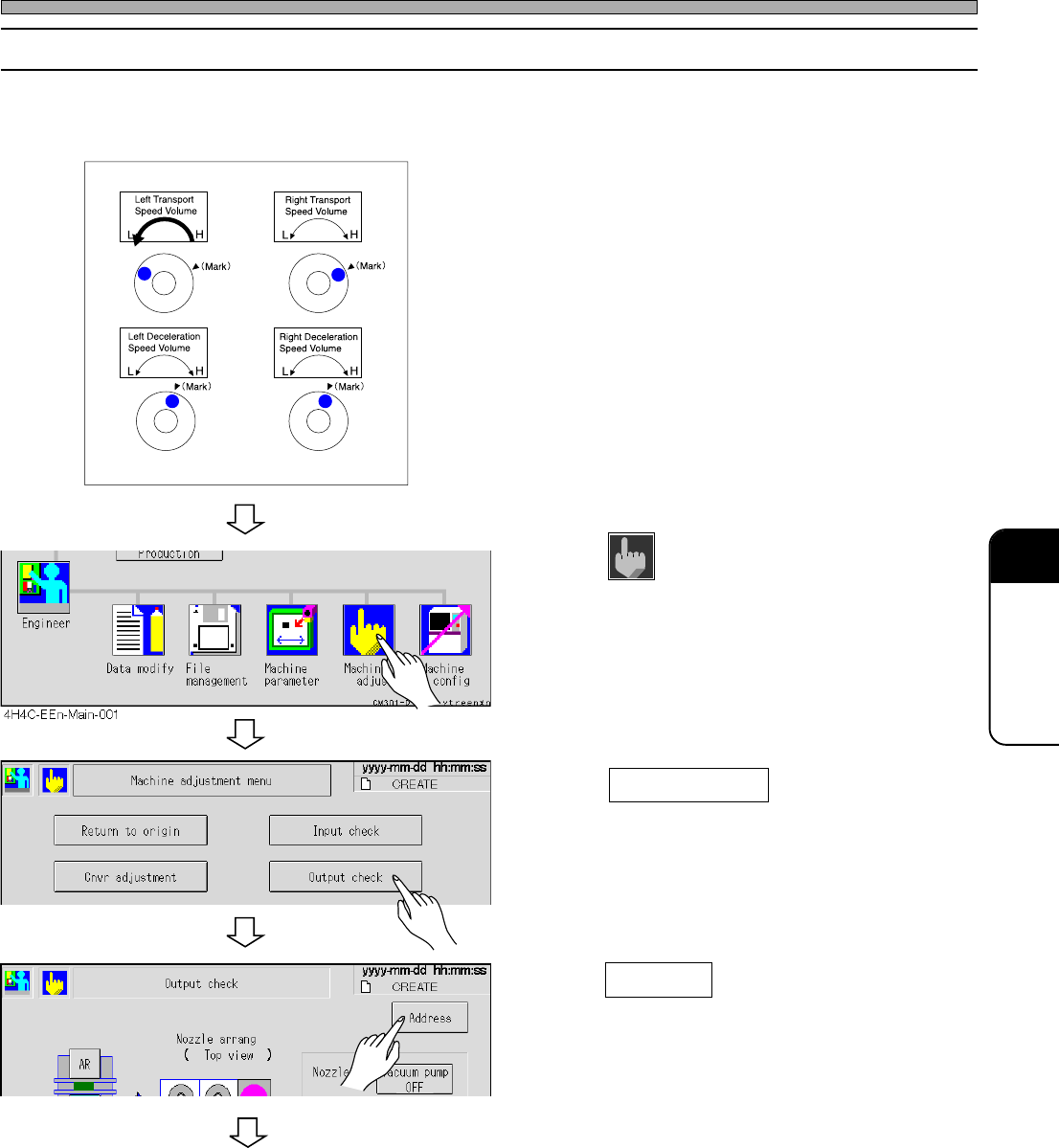

10-1-3 Transport Speed Adjustment Procedure
∗ This part describes the left transport conveyor speed adjustment procedure as an example. As
for the right conveyor speed adjustment, refer to the this procedure.
1. Check the deceleration speed volume.
• Make sure it is at the marked position or the
adjusted position.
2. Turn the transport speed volume to “L”.
3. Press
Machine
adjust
.
• The machine adjustment menu is displayed.
4. Press Output check .
• The output check list is displayed.
5. Press Address .
• The address list screen is displayed.
4H4C-E-OMA10-A01-04
4H4C-EEn-MaOc-007
4H4C-EEn-Ma-001
To the next page
Page 10-6
Transport Speed Variable Adjustment
6. Press .
∗ Adjust the address to “00F4”.
7. Turn ON the conveyor start-up.
• The transport conveyor starts rotating at low
speed.
8. Turn the transport speed volume to
“H”.
• The transport speed accelerates whenever
turned.
∗ When reached the moderate speed, stop
turning the volume.
9. Press .
• The machine adjustment menu is displayed.
10. Press PCB transfer .
∗ Check if a board flows correctly, by performing
the board transport in the test mode.
11. After the board transport test, return
to the main menu.
∗ Press until the main menu is displayed.
To the next page
4H4C-E-OMA10-A01-02
1
2
4H4C-EEn-MaOc-002
4H4C-EEn-Ma-001
2
1
Page 10-7
OPTION
10
Transport Speed Variable Adjustment
12. Press
Machine
parameter
.
• The machine parameters menu is displayed.
13. Press Moving Parameter .
• The “Moving Parameter Set” screen is dis-
played.
14. Set the board transport forced-in
time.
∗ Set the parameter value for 1500 ms or over.
15. Change the master change to “Spcl”.
• Whenever pressed, “Std” and “Spcl” toggles.
So select “Spcl”.
16. Return to the main menu.
∗ Press until the main menu is displayed.
∗ After the transport test, if the parameters need
setting again, repeat steps 11 to 15.
4H4C-E-OMA10-A01-04
4H4C-EEn-Mp-002
4H4C-EEn-MaMps-005
2
1
3
