Page 9-19 CHANGING THE PRODUCTION BOARDS 9 Checking the Mount State through the Conditional Mount 5. Ensure that the servo switch is turned ON, and press UNLOCK → START . • All axes return to their origin. • The axis ret…
Page 9-18
Checking the Mount State through the Conditional Mount
Blocks is pressed at step 3.

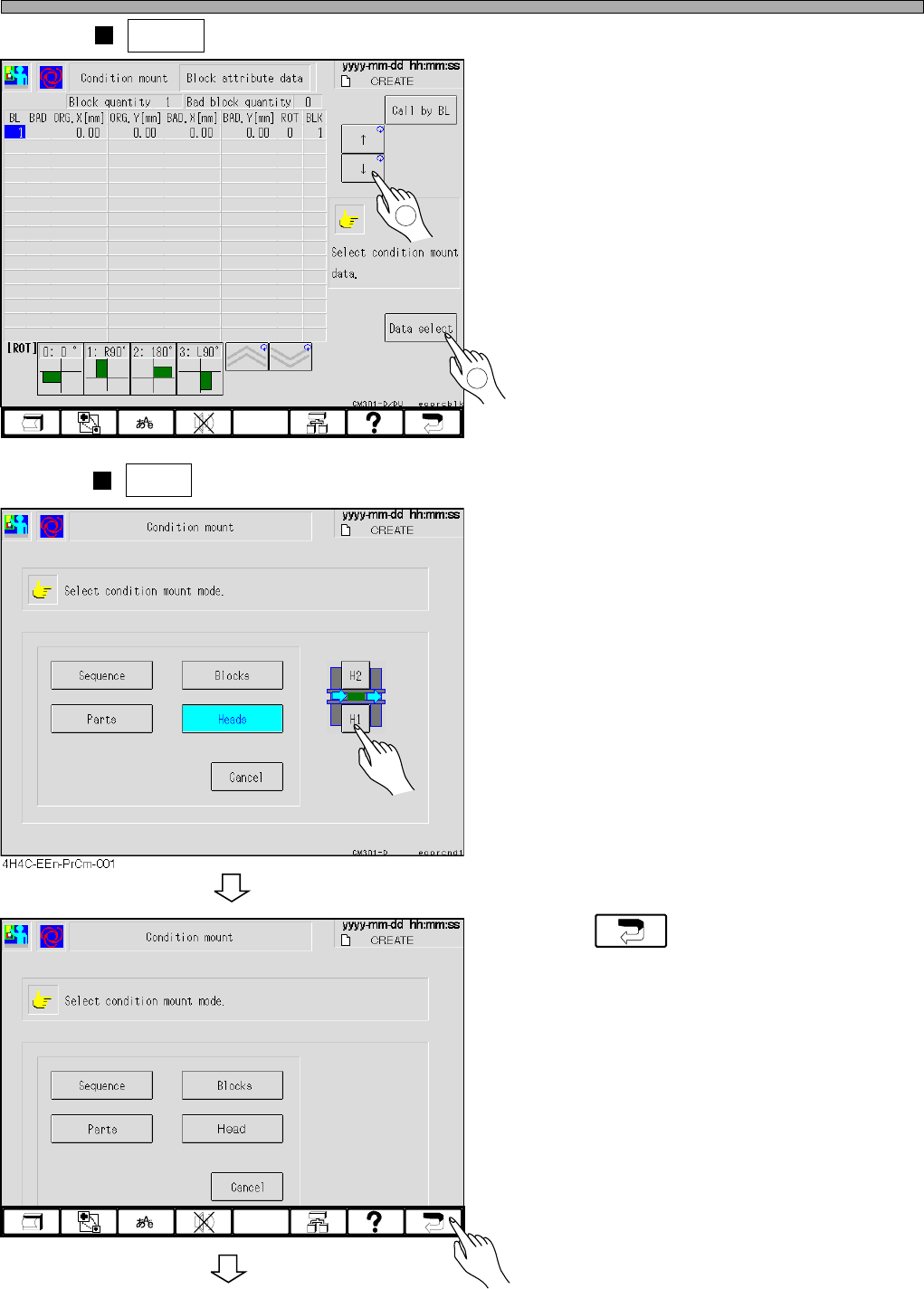

• Select data for the conditionial mount from the
mount data. (Some pieces of them can be
selected.)
Head is pressed at step 3.
• Select the head for the conditional mount.
4. Press .
• The main menu reappear.
4H4C-EEn-PrCm-002
444C-EEn-PrCm-001
1
2
4H4C-E-OMA09-A01-04
To the next page
Page 9-19
CHANGING THE
PRODUCTION BOARDS
9
Checking the Mount State through the Conditional Mount

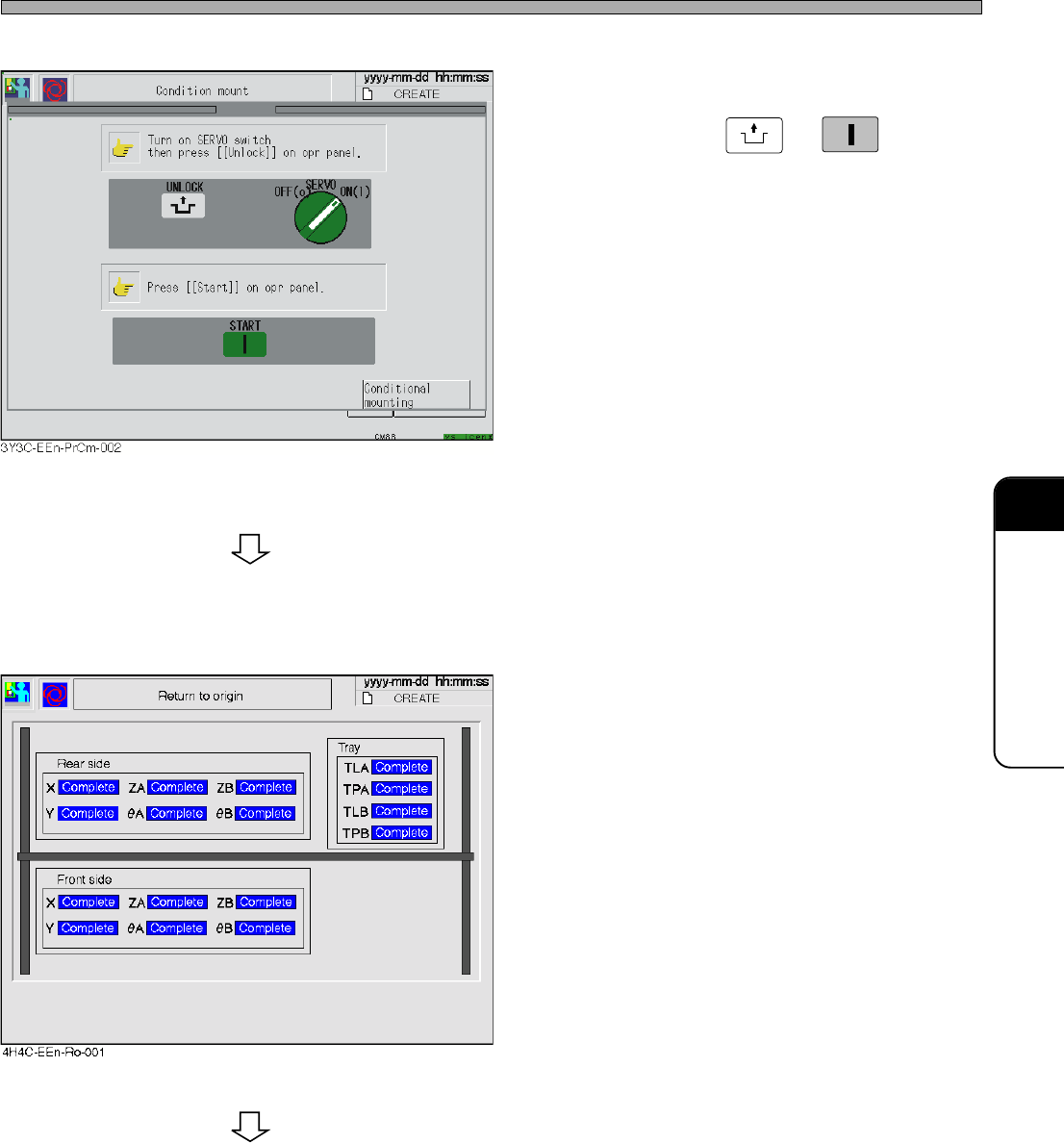

5. Ensure that the servo switch is turned
ON, and press
UNLOCK
→
START
.
• All axes return to their origin.
• The axis returned to its origin is displayed with
“Complete.”
4H4C-E-OMA09-A01-03
To the next page
Page 9-20
4H4C-E-OMA09-A01-05
4H4C-EEn-PrCs-004

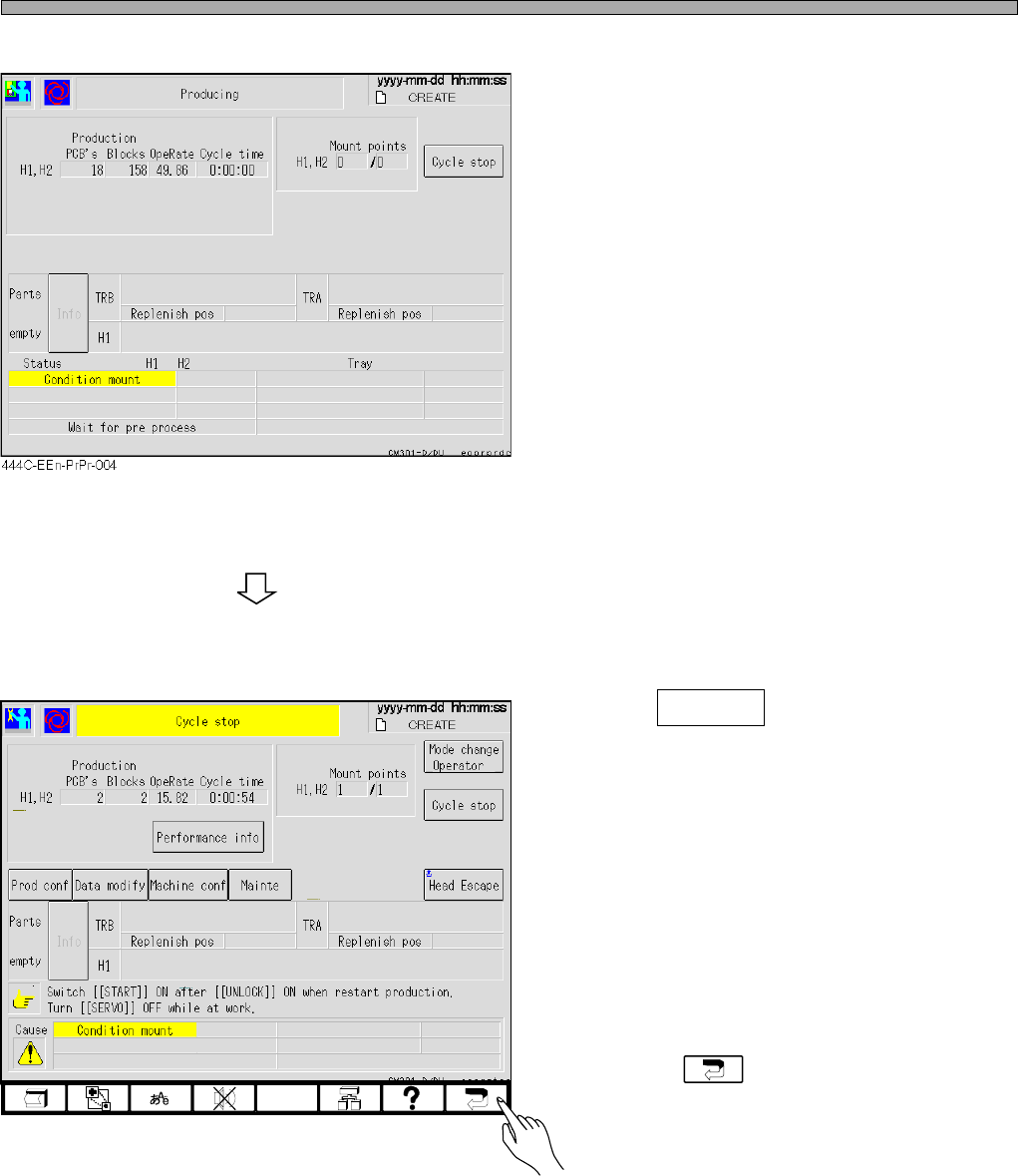

• Press Cycle stop when you terminate the
conditional mounting.
• Pressing returns to the main menu.
• This is displayed when the conditional mount
ing is selected.
Checking the Mount State through the Conditional Mount
