Page 9-3 CHANGING THE PRODUCTION BOARDS 9 Changing the Production Data b) Loading by file operation 1 . Press File managment at the main menu. • The file operation screen appears. 2 . Press PT . • The device is changed t…
Page 9-2
9-1 Changing the Production Data
This section describes the example of loading data from PT. To load data from PT, two of a) trans-
ferring from PT to this machine and b) loading through the file operation are available.
• To load data in the floppy disk, refer to “Chapter 6 File Operation.”
∗ Loading the data to be used deletes old one. To keep old data, save it.
NOTICE
To use the chip which is not registered to the standard chip data library, the
chip recognition teaching by this device is required.
For the board recognition teaching and chip recognition teaching, refer to
“Chapter 8 Teaching.”
a) Transferring from PT to this machine
1. Display the main menu screen and
transfer the data of the production
board to be changed from PT.
∗ Refer to “Programming Manual” for transferring
data from PT.
• Transferring data from PT changes the data
name on the upper right of the screen to the
transferred data name.
Create-1
4H4C-E-OMA09-A01-02
Page 9-3
CHANGING THE
PRODUCTION BOARDS
9
Changing the Production Data

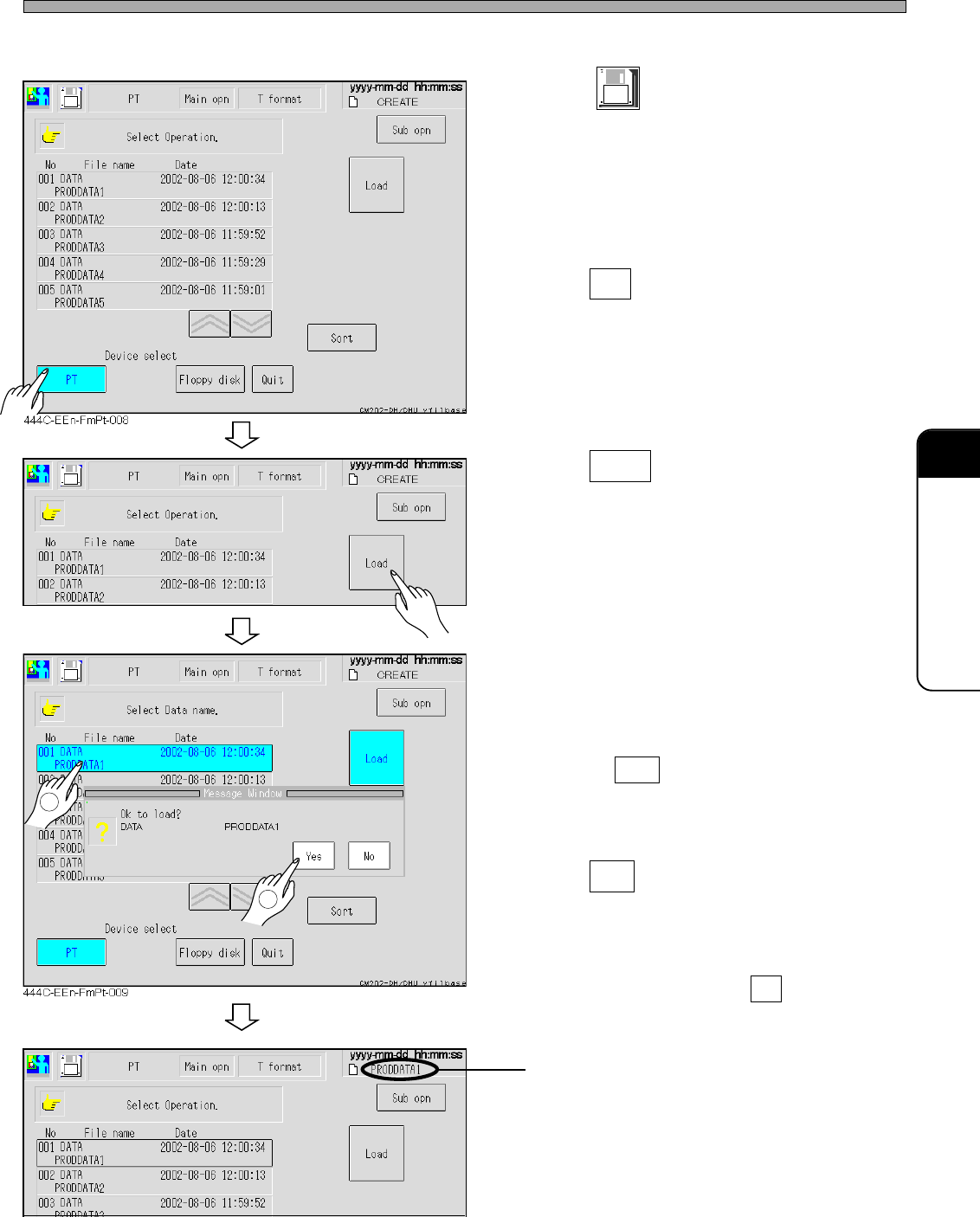

b) Loading by file operation
1. Press
File
managment
at the main menu.
• The file operation screen appears.
2. Press PT .
• The device is changed to PT.
∗ The data registered to the list on PT are
displayed.
3. Press Load .
4. Select the data name to be loaded.
• The selected data name is highlighted.
• Pressing Sort arranges data in descendent
order of date.
5. Press Yes .
• The message “Loading the data name” ap-
pears, and data are started to load.
∗ To quit loading data, press No .
The data name changes to the loaded data
name.
1
444C-EEn-FmPt-008
444C-EEn-FmPt-010
2
4H4C-E-OMA09-A01-02
Page 9-4

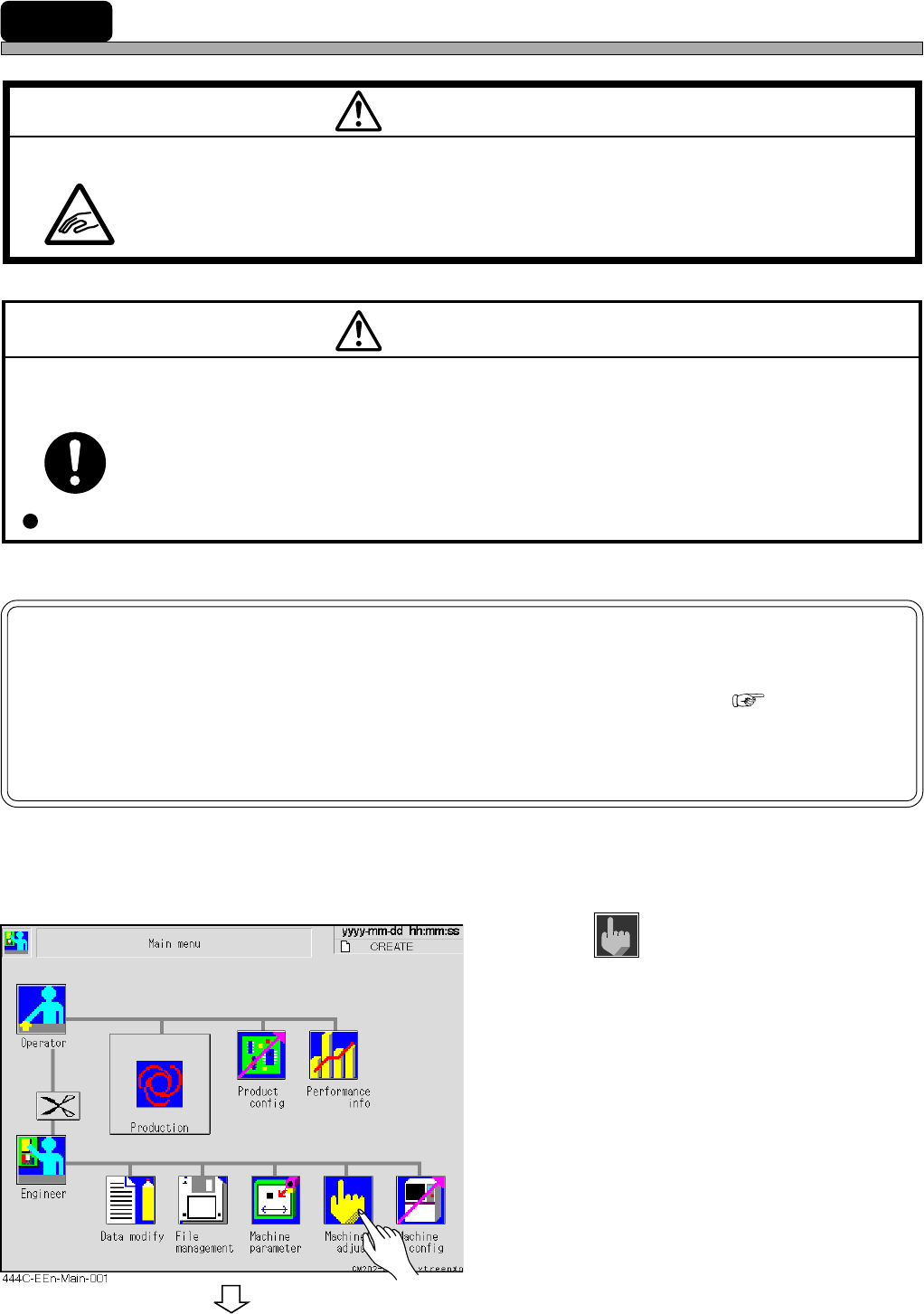

9-2 Adjusting the Transfer Rail Width
NOTICE
When the board gets small (the width of the transfer rail gets narrow), take out the
board support block before carrying out the rail width adjustment ( 9-3 Setting
the Support Pin). If it is left, the sensor which prevents the support pins and the
conveyor from contacting works and the automatic width adjustment stops, as
“Supporter and conveyor error.”
According to data of the board size and thickness, the rail width of the transfer conveyors and the
board holder is automatically adjusted.
1. Press
Machine
adjust
.
To the next page
M36E
If there are any boards or other objects on the conveyor, turn OFF the servo switch and remove them.
BEFORE PERFORMING AUTOMATIC WIDTH ADJUSTMENT, BE SURE TO
VERIFY NO BOARDS OR OTHER OBJECTS ARE ON THE CONVEYOR.
Boards or other objects may drop from the conveyor, causing damage to the boards or
the machine.
CAUTION
M09E
TAKE CARE NOT TO PINCH YOUR HANDS OR FINGERS.
You will have serious injury if your hands or fingers are caught in the conveyors during
manual (or automatic) width adjustment.
WARNING
4H4C-E-OMA09-A01-01
