Page 8-14

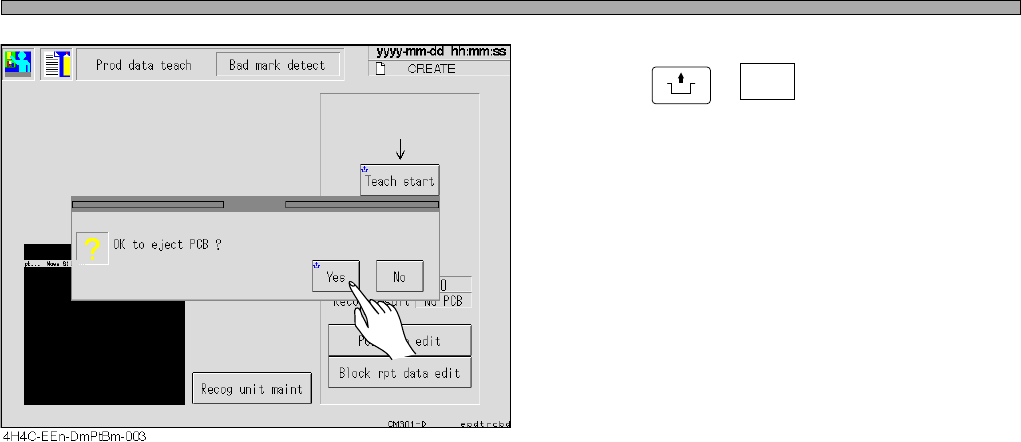

Bad Mark Recognition Teaching

17. Press

UNLOCK

+ Yes .

• The board is discharged, and teaching is over.

4H4C-E-OMA08-A01-01

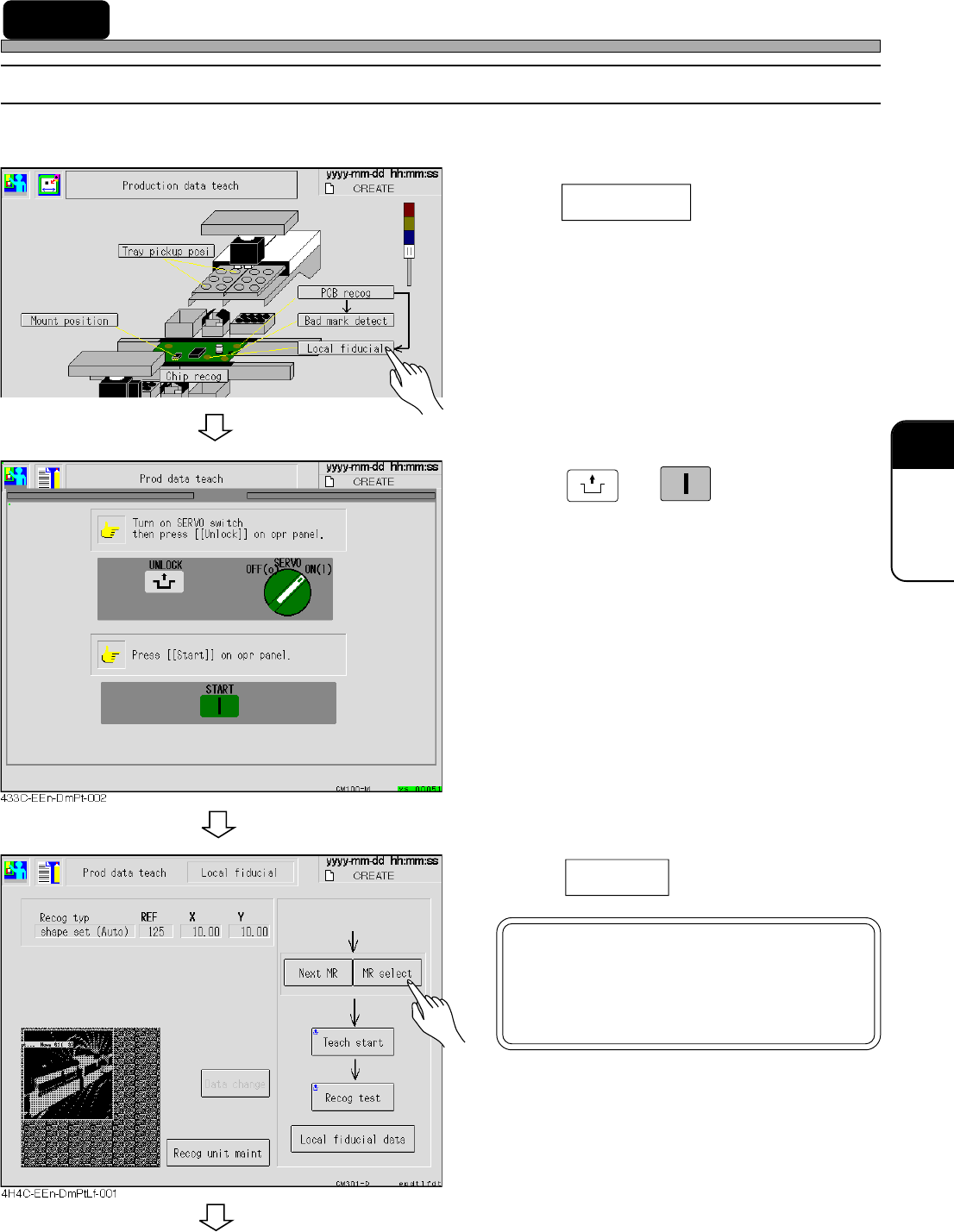

Page 8-15

TEACHING

8-4 Mount Point Recognition Teaching

8-4-1 Teaching Procedure

Before the mount point recognition teaching, check that the function switch, “Mount point

recognition” for the created data is set to ON.

1. Press Local fidusial .

• The mount point recognition screen appears.

2. Press

UNLOCK

→ .

3. Press

MR select

4H4C-E-OMA08-A01-02

4H4C-JEn-DmPt-001

START

NOTICE

MR: Mount point recognition data No.

Refer to PT (Programming Manual)

for the details.

To the next page

Page 8-16

4H4C-E-OMA08-A01-02

To the next page

Mount Point Recognition Teaching

4. Move the cursor to the mount point

recognition mark number for teaching

and press MR select .

5. Press .

6. Set the board to the front conveyor.

7. Press

UNLOCK

+ Teach start .

• The board is carried in and loaded.

8. Press Complete .

• Data is saved.

4H4C-EEn-DmPtLf-002
